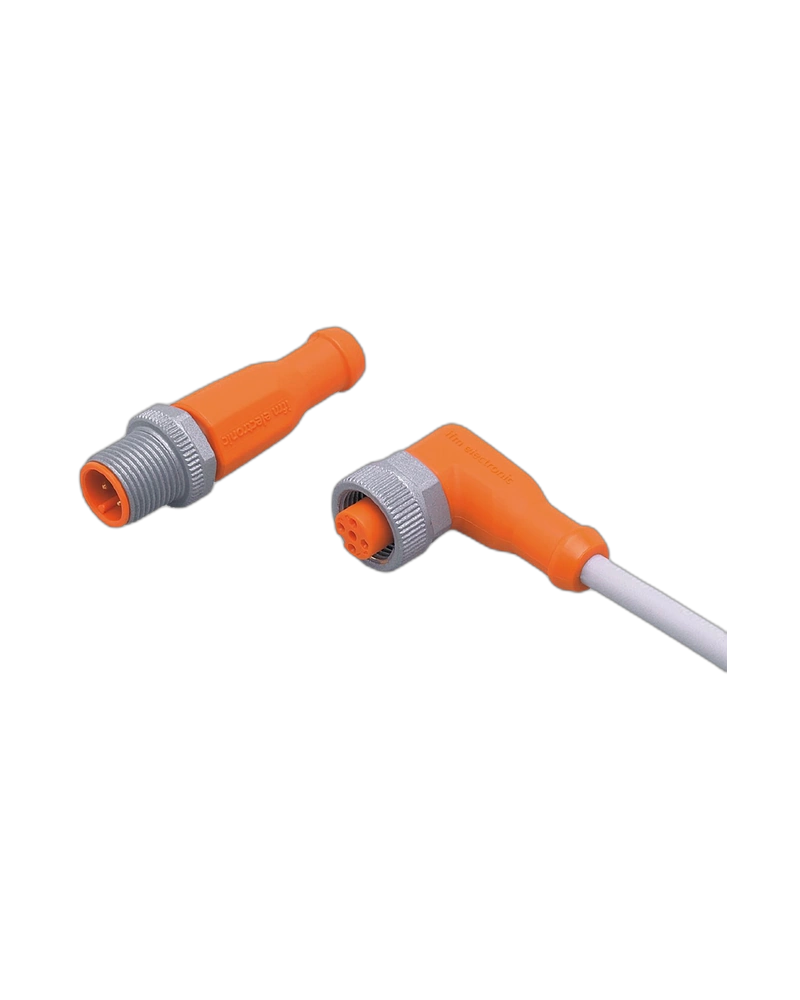

IFM EVW058 is a 5 m M12 5-pole connection cable with angled and straight connectors, weld-slag-resistant PUR cable and gold-plated contacts for harsh industrial automation environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVW058 is a 5 m M12 connection cable designed for extended-distance connections between industrial automation components. Its 5-pole configuration provides reliable connectivity for sensors, actuators and machine control devices.
The cable uses a weld-slag-resistant PUR construction with drag-chain suitability, making it suitable for dynamic industrial environments. The angled connector helps provide efficient cable routing around machinery.
The connector system is designed to resist vibration and shock, while the mechanical end stop helps protect the O-ring during installation. IFM specifically highlights the cable's high protection rating for harsh industrial conditions.
5 m Extended Length: Suitable for larger machines and production systems.
5-Pole M12 Connection: Supports multiple electrical signals.
Angled Connector: Enables flexible cable routing.
Weld-Slag Resistant PUR: Suitable for welding applications.
Gold-Plated Contacts: Supports reliable signal transmission.
Drag-Chain Suitable: Designed for repeated cable movement.
Mechanical End Stop: Helps protect the sealing system.
Robotic welding
Automotive production
Industrial automation
Machine tools
Assembly systems
Production lines
Sensor and actuator networks
| Specification | Details |
|---|---|
| Product Model | EVW058 |
| Product Type | M12 connection / jumper cable |
| Connector Configuration | Angled / Straight |
| Coding | A-coded |
| Number of Contacts | 5 |
| Contact Material | Gold-plated |
| Cable Length | 5 m |
| Cable Material | PUR |
| Cable Type | Weld-slag resistant |
| Wire Cross Section | 5 × 0.34 mm² |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Housing Material | TPU |
| Sealing Material | FKM |
| Nut Material | Brass with weld-resistant coating |
| Drag Chain Suitability | Yes |
| Special Features | Halogen-free, silicone-free, weld-spark resistant |
