IFM EVW057 is a 2 m M12 5-pole connection cable with angled and straight connectors, weld-slag-resistant PUR cable and gold-plated contacts for industrial automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

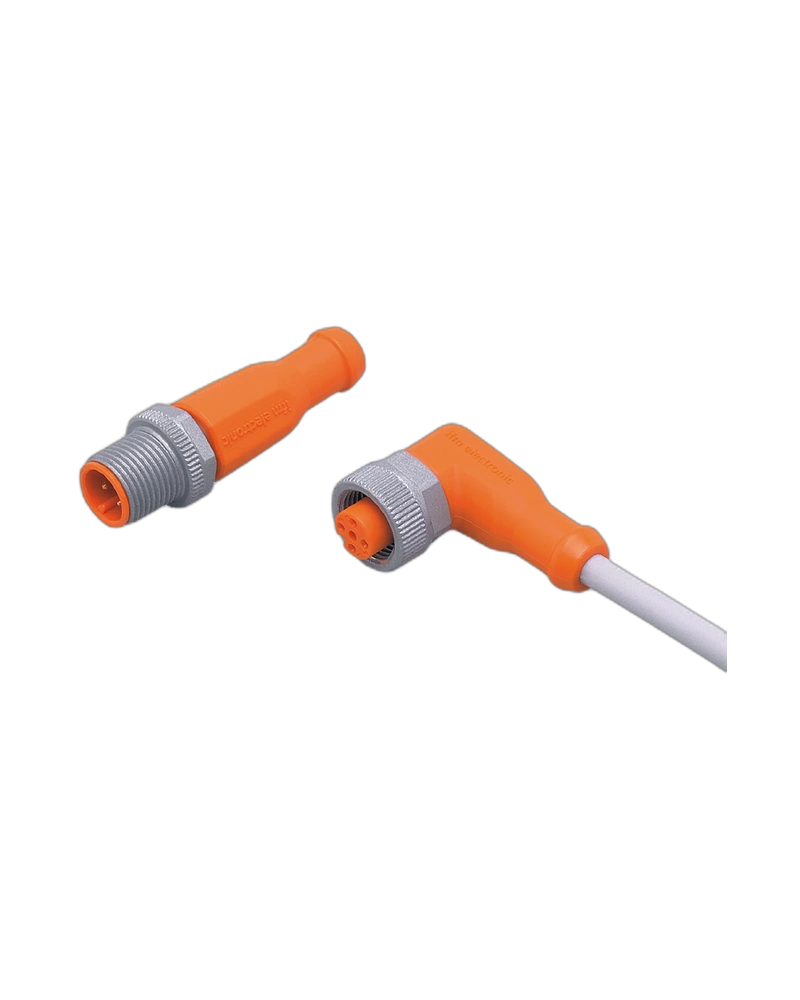

The IFM EVW057 provides a 2 m connection between M12-compatible industrial automation components. It features a 5-pole configuration for reliable signal transmission and an angled connector arrangement for flexible installation.
Its weld-slag-resistant PUR cable makes it particularly suitable for industrial environments where welding sparks and mechanical movement are present. The cable is suitable for drag-chain applications and is designed to withstand vibration and shock.
The connector incorporates gold-plated contacts for dependable electrical connectivity, while the robust sealing system helps protect against moisture and contamination.
2 m Cable Length: Provides additional installation flexibility.
5-Pole M12 Design: Supports multiple electrical signals.
Angled Connector: Helps simplify cable routing.
Gold-Plated Contacts: Provides reliable electrical connection.
Weld-Slag Resistant: Suitable for welding environments.
Drag-Chain Suitable: Designed for dynamic machine applications.
Welding automation
Industrial robotics
Automotive manufacturing
Machine tools
Production lines
Sensor systems
Actuator connections
| Specification | Details |
|---|---|
| Product Model | EVW057 |
| Product Type | M12 connection / jumper cable |
| Connector Configuration | Angled / Straight |
| Coding | A-coded |
| Number of Contacts | 5 |
| Contact Material | Gold-plated |
| Cable Length | 2 m |
| Cable Material | PUR |
| Cable Type | Weld-slag resistant |
| Wire Cross Section | 5 × 0.34 mm² |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Housing Material | TPU |
| Sealing Material | FKM |
| Nut Material | Brass with special weld-resistant coating |
| Drag Chain Suitability | Yes |
| Special Features | Halogen-free, silicone-free, weld-spark resistant |
