IFM EVW056 is a 1 m M12 5-pole connection cable with angled and straight connectors, weld-slag-resistant PUR cable and gold-plated contacts for demanding industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

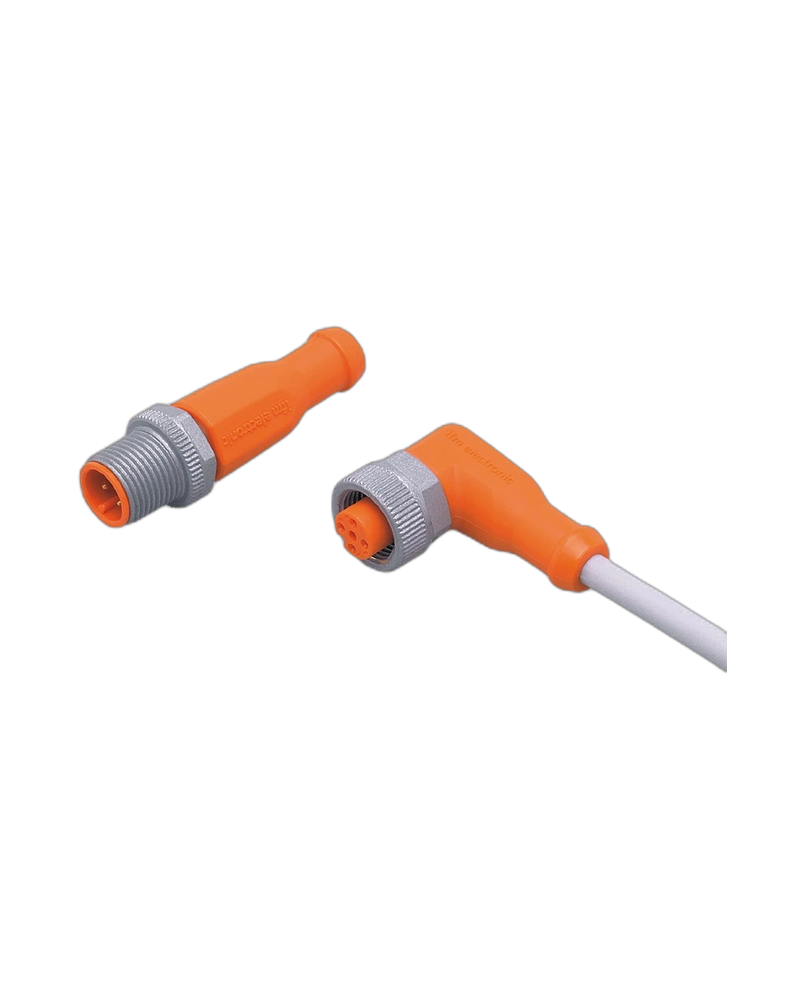

The IFM EVW056 is a compact M12 connection cable designed for reliable signal transmission between industrial automation components. Its 5-pole configuration provides multiple electrical connections for sensors, actuators and other automation devices.
The angled connector design helps improve cable routing around machinery and equipment where installation space is limited. The PUR cable is designed for demanding industrial environments and provides resistance to welding sparks and mechanical stress.
Gold-plated contacts support dependable electrical connectivity, while the robust connector construction provides resistance against vibration and shock. The cable is also suitable for drag-chain applications and harsh operating environments. IFM specifies high IP protection for this cable family.
1 m Cable Length: Suitable for compact and standard machine installations.
5-Pole M12 Connectivity: Supports multiple signal connections.
Angled Connector Design: Helps optimize cable routing in restricted spaces.
Gold-Plated Contacts: Supports reliable electrical transmission.
Weld-Slag Resistant PUR Cable: Suitable for welding and fabrication environments.
Drag-Chain Suitable: Supports applications involving repeated cable movement.
High Protection: Designed for demanding industrial operating conditions.
Industrial automation
Robotic welding systems
Automotive manufacturing
Machine tools
Sensor and actuator connections
Assembly equipment
Production machinery
| Specification | Details |
|---|---|
| Product Model | EVW056 |
| Product Type | M12 connection / jumper cable |
| Connector Configuration | Angled / Straight |
| Coding | A-coded |
| Number of Contacts | 5 |
| Contact Material | Gold-plated |
| Cable Length | 1 m |
| Cable Material | PUR |
| Cable Type | Weld-slag resistant |
| Cable Diameter | Approx. 5.1 mm |
| Wire Cross Section | 5 × 0.34 mm² |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Connector Housing | TPU |
| Sealing | FKM |
| Nut | Brass with weld-resistant coating |
| Drag Chain Suitability | Yes |
| Special Features | Halogen-free, silicone-free, weld-spark resistant |
