IFM EVW055 is a 0.6 m M12 5-pole connection cable with angled connector, straight socket, gold-plated contacts and weld-spark-resistant PUR cable for industrial automation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

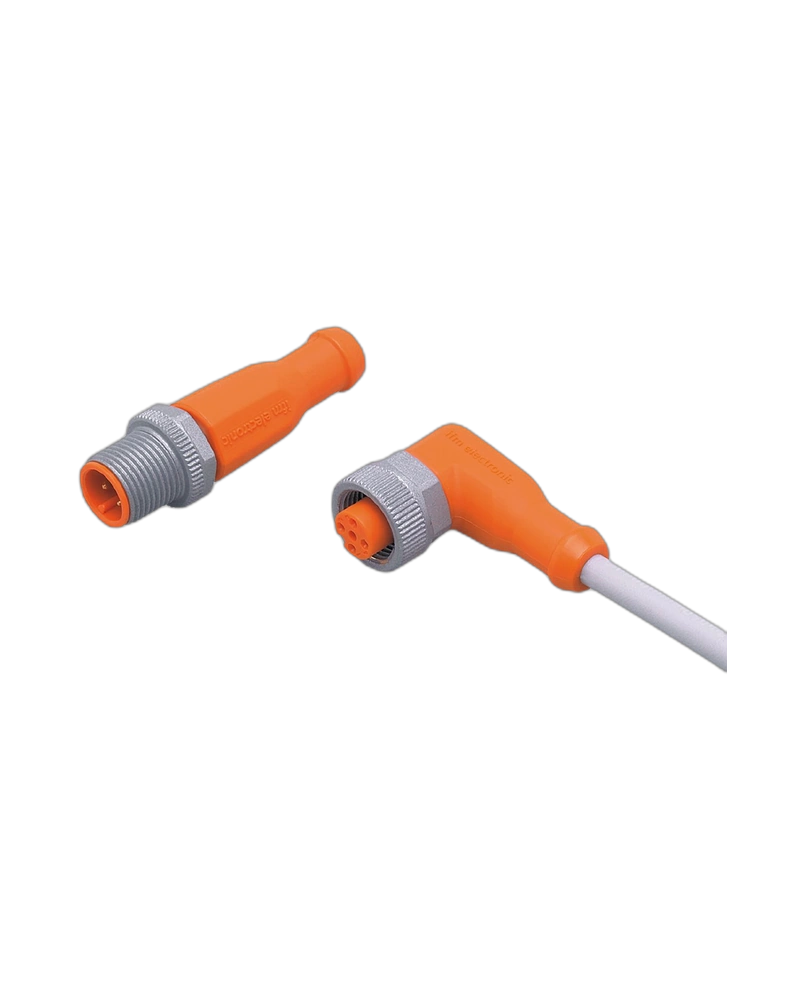

The IFM EVW055 is a compact 0.6 m M12 connection cable designed for reliable connections in industrial automation and welding applications.
Its angled connector configuration helps route the cable efficiently around machine components, while the 5-pole M12 design supports multi-signal connections. The PUR cable is halogen-free, silicone-free and resistant to welding sparks.
Gold-plated contacts provide dependable electrical conductivity, while the connector's mechanical end stop helps protect the O-ring from damage. The cable is also suitable for drag-chain applications.
0.6 m Cable Length: Suitable for compact industrial installations.
Angled Connector: Improves cable routing flexibility.
5-Pole M12 Connectivity: Supports multiple signal connections.
Gold-Plated Contacts: Provides dependable electrical connectivity.
Weld-Spark Resistant: Suitable for welding applications.
Drag-Chain Suitable: Supports repeated movement.
Industrial automation
Welding applications
Automotive manufacturing
Robotic machinery
Machine tools
Sensor and actuator connections
Production equipment
| Specification | Details |
|---|---|
| Product Model | EVW055 |
| Product Type | M12 connection / jumper cable |
| Connector Configuration | Angled / straight |
| Coding | A-coded |
| Number of Contacts | 5 |
| Contact Material | Gold-plated |
| Cable Length | 0.6 m |
| Cable Material | PUR |
| Cable Colour | Grey |
| Cable Diameter | 5.1 mm |
| Wire Cross Section | 5 × 0.34 mm² |
| Operating Voltage | <60 V AC/DC |
| Current Rating | 4 A |
| UL Current Rating | 3 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Housing Material | TPU |
| Sealing Material | FKM |
| Nut Material | Brass, weld-coated |
| Drag Chain Suitability | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >2 million |
| Torsional Strain | ±180°/m |
| Special Features | Halogen-free, silicone-free, weld-spark resistant |
