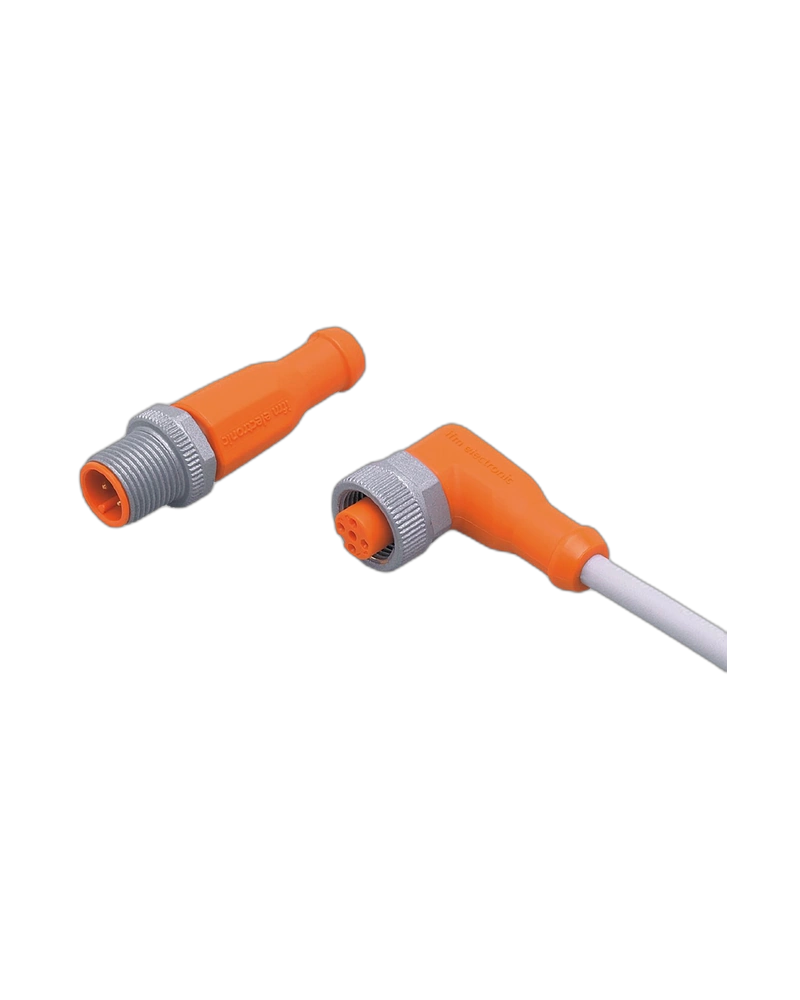

IFM EVW054 is a compact 0.3 m M12 5-pole connection cable with an angled connector, straight socket, gold-plated contacts and weld-spark-resistant PUR cable.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVW054 is a compact 5-pole M12 connection cable designed for industrial automation and welding applications. Its angled connector configuration provides improved routing flexibility around machine components.
The 0.3 m PUR cable contains five 0.34 mm² conductors and is resistant to welding sparks. Gold-plated contacts support reliable signal transmission, while the robust M12 construction provides protection for demanding industrial environments.
The cable is suitable for drag-chain applications and includes a mechanical end stop designed to protect the O-ring from damage.
Compact 0.3 m Length: Suitable for close-proximity connections.
Angled Connector: Helps improve cable routing.
5-Pole M12 Design: Supports multiple signal connections.
Gold-Plated Contacts: Supports reliable electrical performance.
Weld-Spark Resistant PUR: Suitable for welding environments.
Mechanical End Stop: Helps protect the sealing system.
Industrial automation
Welding machinery
Robotic systems
Machine tools
Automotive production
Sensor connections
Assembly machinery
| Specification | Details |
|---|---|
| Product Model | EVW054 |
| Product Type | M12 connection / jumper cable |
| Connector Configuration | Angled / straight |
| Coding | A-coded |
| Number of Contacts | 5 |
| Contact Material | Gold-plated |
| Cable Length | 0.3 m |
| Cable Material | PUR |
| Cable Colour | Grey |
| Cable Diameter | 5.1 mm |
| Wire Cross Section | 5 × 0.34 mm² |
| Operating Voltage | <60 V AC/DC |
| Current Rating | 4 A |
| UL Current Rating | 3 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Housing Material | TPU |
| Sealing Material | FKM |
| Nut Material | Brass, weld-coated |
| Drag Chain Suitability | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >2 million |
| Torsional Strain | ±180°/m |
| Special Features | Halogen-free, silicone-free, weld-spark resistant |
