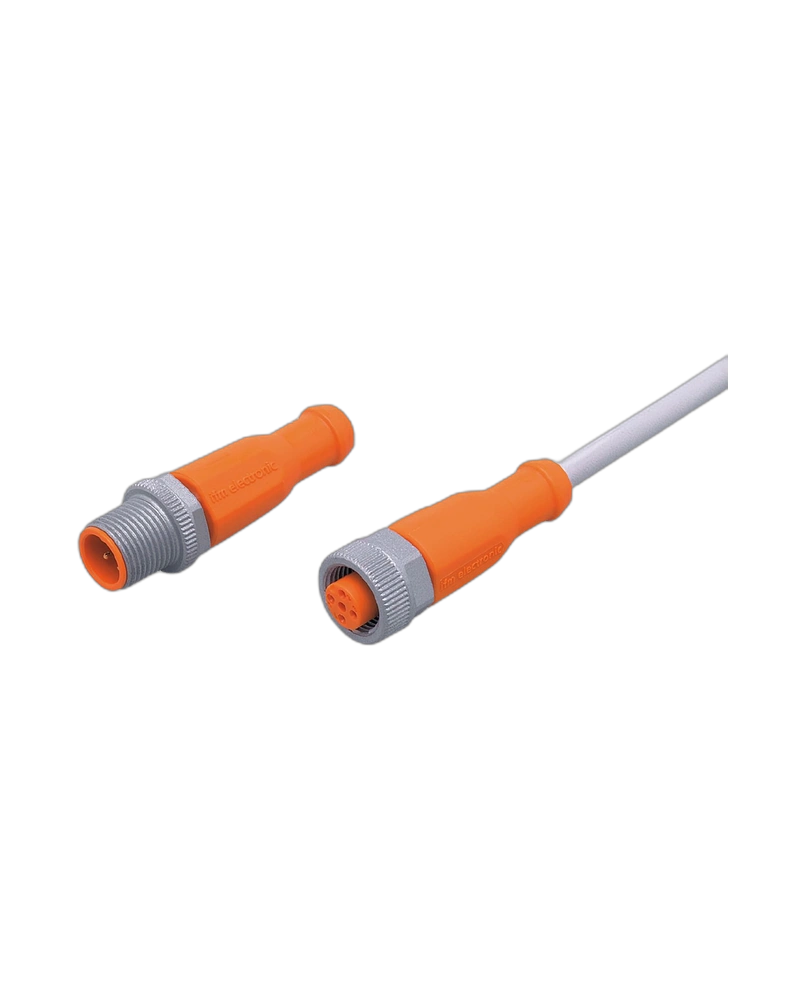

IFM EVW053 is a 10 m M12 5-pole connection cable with straight connectors, gold-plated contacts and weld-spark-resistant PUR cable for extended industrial automation installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVW053 is a long-length 10 m M12 connection cable designed for industrial installations where automation devices are positioned farther apart.
Its straight M12 male-to-female connector configuration enables simple installation, while the 5-pole design supports multi-signal connectivity. The PUR cable is resistant to welding sparks and suitable for drag-chain use.
The cable combines gold-plated contacts, FKM sealing and weld-slag-resistant locking components for dependable operation in harsh manufacturing environments.
10 m Extended Cable: Ideal for large machinery and production lines.
5-Pole M12 Connectivity: Supports multiple signals.
Straight Connectors: Simplifies installation.
Gold-Plated Contacts: Supports reliable signal transmission.
Weld-Spark Resistant: Suitable for welding applications.
Drag-Chain Suitable: Designed for dynamic machinery.
Large industrial machines
Welding cells
Automotive manufacturing
Robotic automation
Production lines
Sensor connections
Machine tools
| Specification | Details |
|---|---|
| Product Model | EVW053 |
| Product Type | M12 connection / jumper cable |
| Connector 1 | M12 straight male |
| Connector 2 | M12 straight female |
| Coding | A-coded |
| Number of Contacts | 5 |
| Contact Material | Gold-plated |
| Cable Length | 10 m |
| Cable Material | PUR |
| Cable Colour | Grey |
| Cable Diameter | 5.1 mm |
| Wire Cross Section | 5 × 0.34 mm² |
| Operating Voltage | <60 V AC/DC |
| Current Rating | 4 A |
| UL Current Rating | 3 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Housing Material | TPU |
| Sealing Material | FKM |
| Nut Material | Brass, anti-spatter |
| Drag Chain Suitability | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >2 million |
| Torsional Strain | ±180°/m |
| Special Features | Halogen-free, silicone-free, weld-spark resistant |
