IFM EVW052 is a 5 m M12 5-pole connection cable with straight connectors, gold-plated contacts and weld-spark-resistant PUR cable for demanding industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

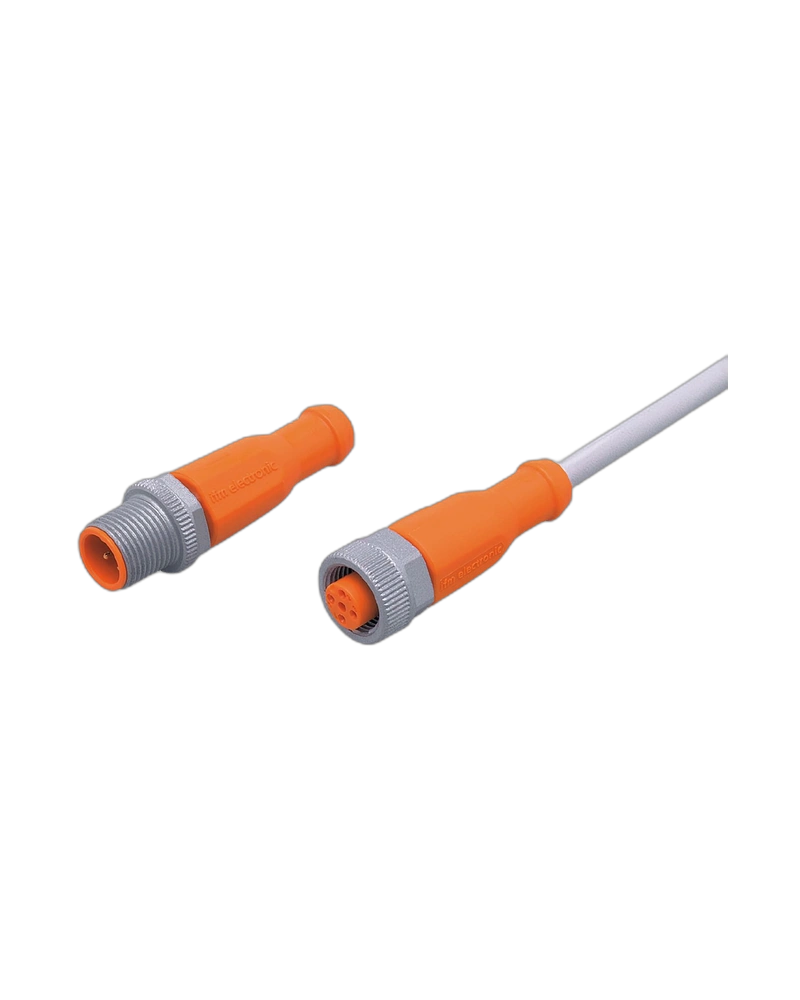

The IFM EVW052 is a 5 m M12 connection cable designed for reliable connections across larger industrial machine layouts.
The straight M12 male and female connectors provide straightforward installation, while the 5-pole configuration supports multi-signal applications. Its PUR cable is halogen-free, silicone-free and resistant to welding sparks.
The cable is suitable for drag-chain applications and provides IP65/IP67/IP68/IP69K protection. IFM specifies a maximum current rating of 4 A and an operating voltage below 60 V AC/DC.
5 m Extended Length: Suitable for larger installations.
5-Pole M12 Design: Supports multiple electrical signals.
Straight Connectors: Simplifies connection and installation.
Gold-Plated Contacts: Provides reliable electrical connectivity.
Weld-Spark Resistant PUR: Suitable for welding environments.
Drag-Chain Suitable: Supports dynamic machine applications.
Welding automation
Automotive production
Industrial machinery
Robotic systems
Machine tools
Sensor networks
Assembly lines
| Specification | Details |
|---|---|
| Product Model | EVW052 |
| Product Type | M12 connection / jumper cable |
| Connector 1 | M12 straight male |
| Connector 2 | M12 straight female |
| Coding | A-coded |
| Number of Contacts | 5 |
| Contact Material | Gold-plated |
| Cable Length | 5 m |
| Cable Material | PUR |
| Cable Colour | Grey |
| Cable Diameter | 5.1 mm |
| Wire Cross Section | 5 × 0.34 mm² |
| Operating Voltage | <60 V AC/DC |
| Current Rating | 4 A |
| UL Current Rating | 3 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Housing Material | TPU |
| Sealing Material | FKM |
| Nut Material | Brass, anti-spatter |
| Drag Chain Suitability | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >2 million |
| Torsional Strain | ±180°/m |
| Special Features | Halogen-free, silicone-free, weld-spark resistant |
