IFM EVW051 is a 2 m M12 5-pole connection cable with straight connectors, gold-plated contacts and weld-spark-resistant PUR cable for reliable industrial automation connections.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

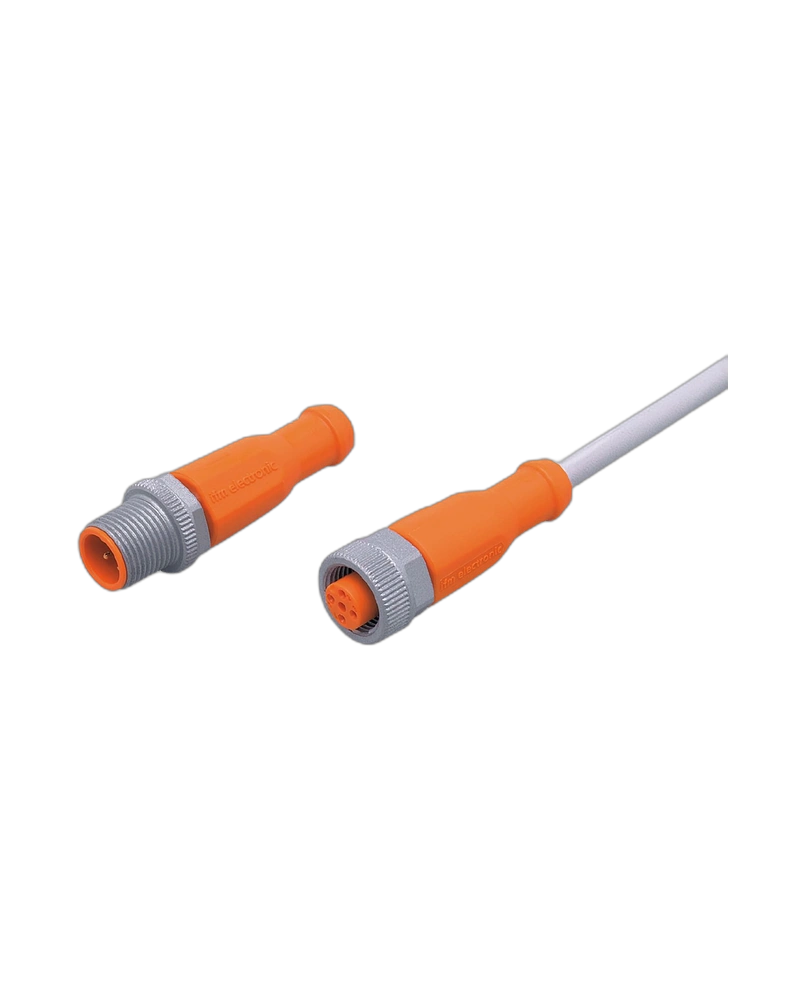

The IFM EVW051 is a 2 m straight M12 connection cable designed for signal and power connections between industrial automation devices.
Its 5-pole M12 connectors provide multi-signal connectivity, while the PUR cable offers flexibility, welding-spark resistance and suitability for drag-chain applications. The gold-plated contacts support stable electrical performance.
The cable is designed for harsh industrial environments with high protection against dust, moisture and other operating conditions.
2 m Cable Length: Provides flexible installation reach.
5-Pole M12 Connection: Supports multiple signal circuits.
Straight Connectors: Provides simple installation.
Gold-Plated Contacts: Supports dependable connectivity.
Weld-Spark Resistant: Suitable for welding applications.
High Dynamic Durability: Suitable for moving machinery.
Industrial automation
Welding systems
Robotic equipment
Machine tools
Automotive manufacturing
Sensor and actuator connections
Production lines
| Specification | Details |
|---|---|
| Product Model | EVW051 |
| Product Type | M12 connection / jumper cable |
| Connector 1 | M12 straight male |
| Connector 2 | M12 straight female |
| Coding | A-coded |
| Number of Contacts | 5 |
| Contact Material | Gold-plated |
| Cable Length | 2 m |
| Cable Material | PUR |
| Cable Colour | Grey |
| Cable Diameter | 5.1 mm |
| Wire Cross Section | 5 × 0.34 mm² |
| Operating Voltage | <60 V AC/DC |
| Current Rating | 4 A |
| UL Current Rating | 3 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Housing Material | TPU |
| Sealing Material | FKM |
| Nut Material | Brass, weld-coated |
| Drag Chain Suitability | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >2 million |
| Torsional Strain | ±180°/m |
| Special Features | Halogen-free, silicone-free, weld-spark resistant |
