IFM EVW050 is a 1 m M12 5-pole connection cable with straight male and female connectors, gold-plated contacts and weld-spark-resistant PUR cable for industrial automation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

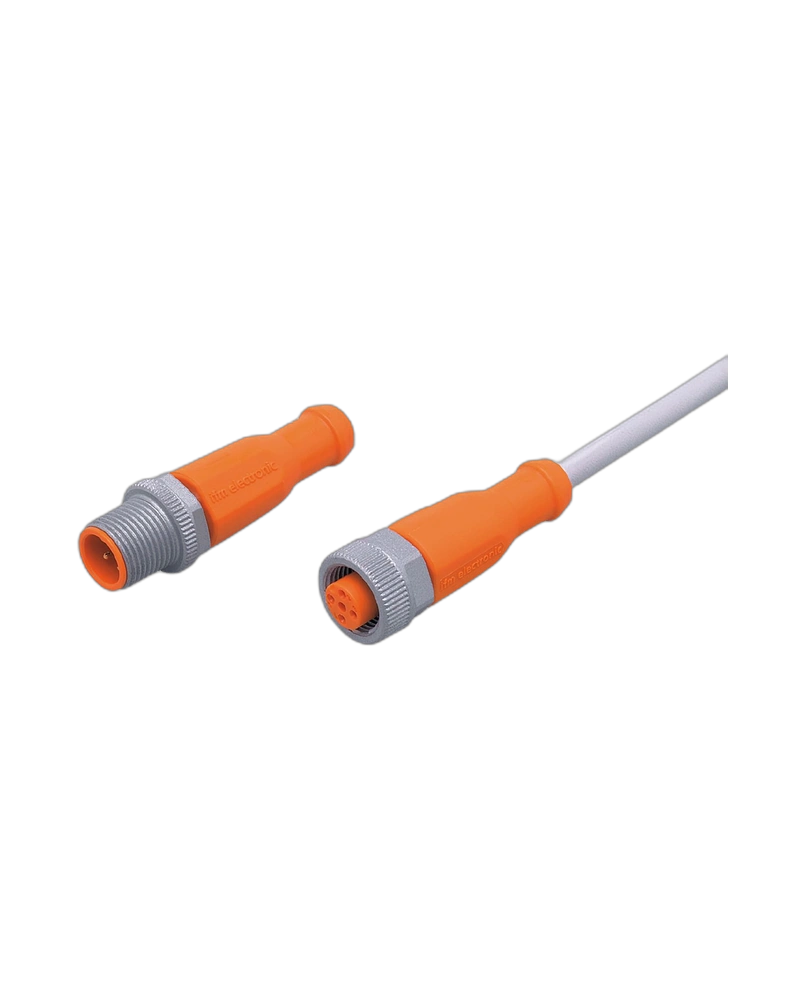

The IFM EVW050 is a 1 m M12 5-pole connection cable developed for reliable signal connections in industrial automation and welding applications.
It uses straight M12 connectors and a flexible PUR cable containing five 0.34 mm² conductors. The cable is resistant to welding sparks and designed for drag-chain applications.
Gold-plated contacts help maintain dependable electrical performance, while the connector housing and sealing system provide protection against harsh industrial conditions.
1 m Cable Length: Suitable for standard machine installations.
5-Pole M12 Design: Provides multiple signal connections.
Straight Male-to-Female Connection: Simplifies installation.
Gold-Plated Contacts: Supports stable electrical transmission.
Weld-Spark Resistant PUR: Suitable for welding environments.
Drag-Chain Suitable: Supports repeated movement.
Industrial automation
Welding equipment
Automotive production
Machine tools
Robotic systems
Sensor connections
Assembly machinery
| Specification | Details |
|---|---|
| Product Model | EVW050 |
| Product Type | M12 connection / jumper cable |
| Connector 1 | M12 straight male |
| Connector 2 | M12 straight female |
| Coding | A-coded |
| Number of Contacts | 5 |
| Contact Material | Gold-plated |
| Cable Length | 1 m |
| Cable Material | PUR |
| Cable Colour | Grey |
| Cable Diameter | 5.1 mm |
| Wire Cross Section | 5 × 0.34 mm² |
| Operating Voltage | <60 V AC/DC |
| Current Rating | 4 A |
| UL Current Rating | 3 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Housing Material | TPU |
| Sealing Material | FKM |
| Nut Material | Brass, anti-spatter |
| Drag Chain Suitability | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >2 million |
| Torsional Strain | ±180°/m |
| Special Features | Halogen-free, silicone-free, weld-spark resistant |
