IFM EVW049 is a 0.6 m M12 5-pole connection cable with straight connectors, gold-plated contacts and weld-spark-resistant PUR cable for industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

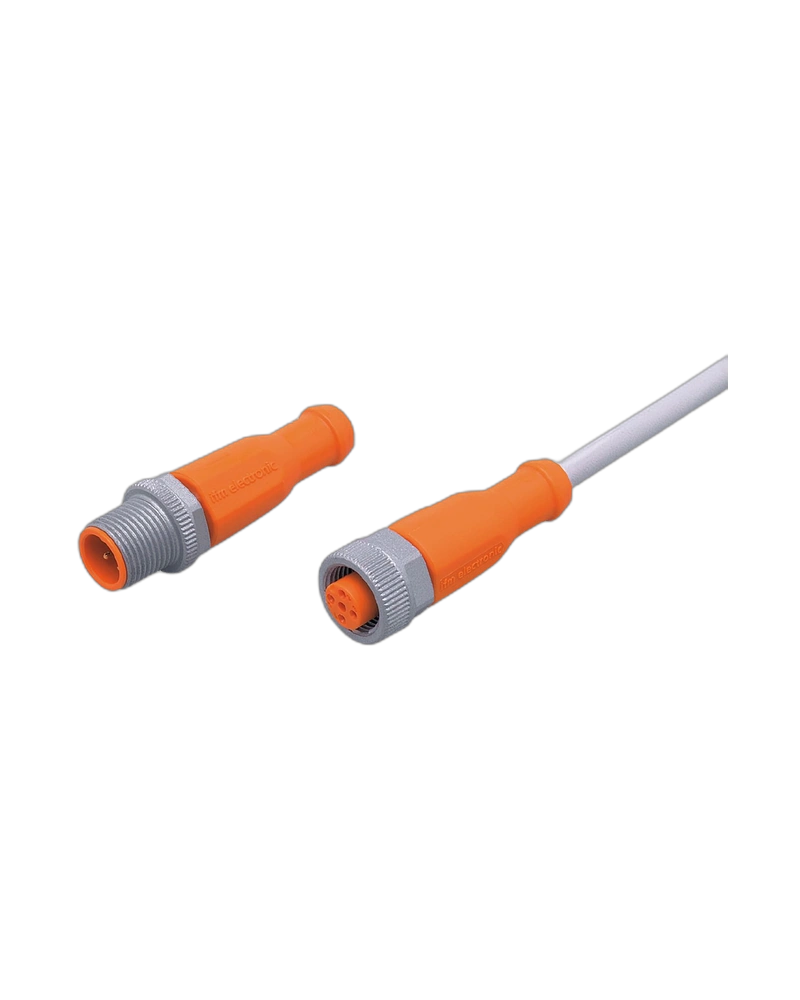

The IFM EVW049 provides a 0.6 m connection between industrial automation devices using 5-pole M12 connectors. Its straight male-to-female configuration is suitable for compact machine installations.
The PUR cable is halogen-free, silicone-free and resistant to welding sparks. Gold-plated contacts provide dependable electrical connectivity, while the robust connector construction is designed for vibration and shock resistance.
0.6 m Cable Length: Suitable for compact machine connections.
5-Pole M12 Connectivity: Supports multiple electrical signals.
Straight Connector Design: Enables straightforward installation.
Gold-Plated Contacts: Helps maintain reliable connections.
Weld-Spark Resistant: Suitable for welding applications.
High Protection: Suitable for demanding industrial environments.
Industrial automation
Welding applications
Machine tools
Robotic equipment
Automotive manufacturing
Sensor connections
Production machinery
| Specification | Details |
|---|---|
| Product Model | EVW049 |
| Product Type | M12 connection / jumper cable |
| Connector 1 | M12 straight male |
| Connector 2 | M12 straight female |
| Coding | A-coded |
| Number of Contacts | 5 |
| Contact Material | Gold-plated |
| Cable Length | 0.6 m |
| Cable Material | PUR |
| Cable Colour | Grey |
| Cable Diameter | 5.1 mm |
| Wire Cross Section | 5 × 0.34 mm² |
| Operating Voltage | <60 V AC/DC |
| Current Rating | 4 A |
| UL Current Rating | 3 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Housing Material | TPU |
| Sealing Material | FKM |
| Nut Material | Brass, anti-spatter |
| Drag Chain Suitability | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >2 million |
| Torsional Strain | ±180°/m |
| Special Features | Halogen-free, silicone-free, weld-spark resistant |
