IFM EVW048 is a compact 0.3 m M12 5-pole connection cable with straight connectors, gold-plated contacts and weld-spark-resistant PUR cable for industrial automation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

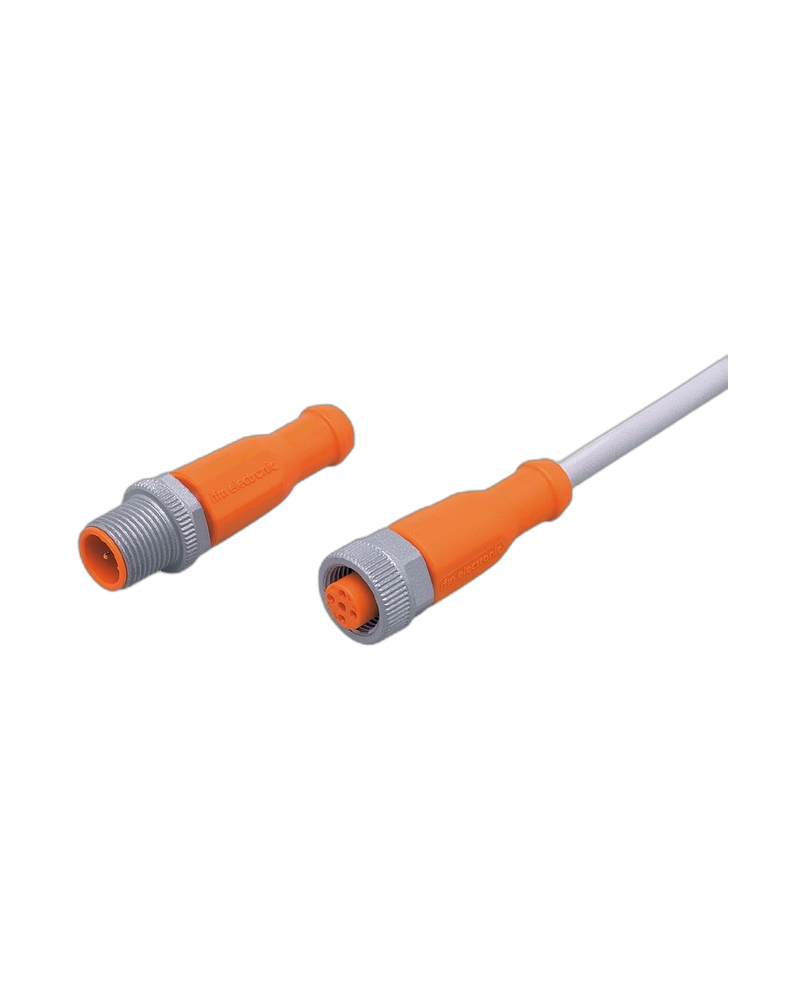

The IFM EVW048 is a compact 5-pole M12 connection cable designed for reliable connections between industrial automation components. It features straight M12 male and female connectors and a short 0.3 m cable length.
The cable uses a flexible, halogen-free and silicone-free PUR construction with five 0.34 mm² conductors. Gold-plated contacts support dependable signal transmission, while the weld-spark-resistant cable construction makes it suitable for welding applications.
The cable is also suitable for drag-chain installations and provides IP65/IP67/IP68/IP69K protection.
Compact 0.3 m Length: Ideal for close-proximity connections.
5-Pole M12 Design: Supports multi-signal industrial connections.
Straight Connectors: Simplifies installation.
Gold-Plated Contacts: Supports reliable signal transmission.
Weld-Spark Resistant PUR: Suitable for welding environments.
Drag-Chain Suitable: Supports dynamic applications.
Industrial automation
Welding machinery
Sensors and actuators
Machine tools
Automotive production
Assembly equipment
Robotic systems
| Specification | Details |
|---|---|
| Product Model | EVW048 |
| Product Type | M12 connection / jumper cable |
| Connector 1 | M12 straight male |
| Connector 2 | M12 straight female |
| Coding | A-coded |
| Number of Contacts | 5 |
| Contact Material | Gold-plated |
| Cable Length | 0.3 m |
| Cable Material | PUR |
| Cable Colour | Grey |
| Cable Diameter | 5.1 mm |
| Wire Cross Section | 5 × 0.34 mm² |
| Operating Voltage | <60 V AC/DC |
| Current Rating | 4 A |
| UL Current Rating | 3 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Housing Material | TPU |
| Sealing Material | FKM |
| Nut Material | Brass, anti-spatter |
| Drag Chain Suitability | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >2 million |
| Torsional Strain | ±180°/m |
| Special Features | Halogen-free, silicone-free, weld-spark resistant |
