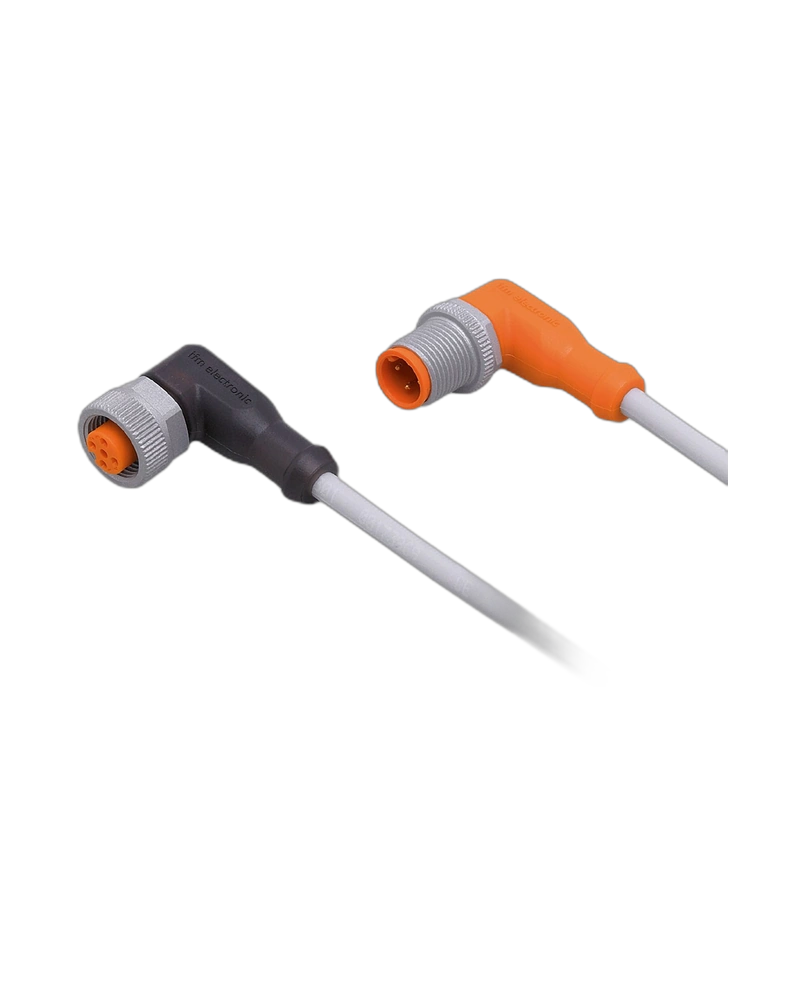

IFM EVW047 is a 10 m M12 connection cable with angled male and angled female connectors, LED indication, gold-plated contacts and weld-spark-resistant PUR cable for demanding automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVW047 is the 10 m extended version of the angled-to-angled M12 connection cable range. It is designed for reliable connections between sensors, actuators and automation components where longer cable routing is required.
Both connectors are angled, helping maintain an efficient cable path around machinery and robotic equipment. The PUR cable is resistant to welding sparks and suitable for drag-chain applications.
Integrated LEDs provide visible indication of output and power status, while gold-plated contacts support reliable electrical connectivity. The cable also provides high resistance to vibration, shock and harsh industrial conditions.
10 m Extended Length: Suitable for large machine layouts.
Angled Connectors: Helps optimize cable routing.
LED Status Indication: Provides convenient visual monitoring.
Gold-Plated Contacts: Supports reliable connectivity.
Weld-Spark Resistant: Suitable for welding cells.
Dynamic Cable Performance: Supports moving machinery.
Robotic welding
Automotive production
Industrial automation
Machine tools
Large production lines
Sensor connections
Actuator connections
| Specification | Details |
|---|---|
| Product Model | EVW047 |
| Product Type | M12 connection / jumper cable |
| Connector 1 | M12 angled male |
| Connector 2 | M12 angled female |
| Coding | A-coded |
| Number of Contacts | 4 |
| Contact Material | Gold-plated |
| Cable Length | 10 m |
| Cable Material | PUR |
| Cable Colour | Grey |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 4 × 0.34 mm² |
| Operating Voltage | 10–36 V DC |
| Current Rating | 4 A |
| Electrical Design | DC PNP |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| LED Indication | 2 × yellow output + 1 × green power |
| Housing Material | TPU |
| Sealing Material | FKM |
| Nut Material | Brass, weld-resistant coating |
| Drag Chain Suitability | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >2 million |
| Torsional Strain | ±180°/m |
| Special Features | Halogen-free, silicone-free, weld-spark resistant |
