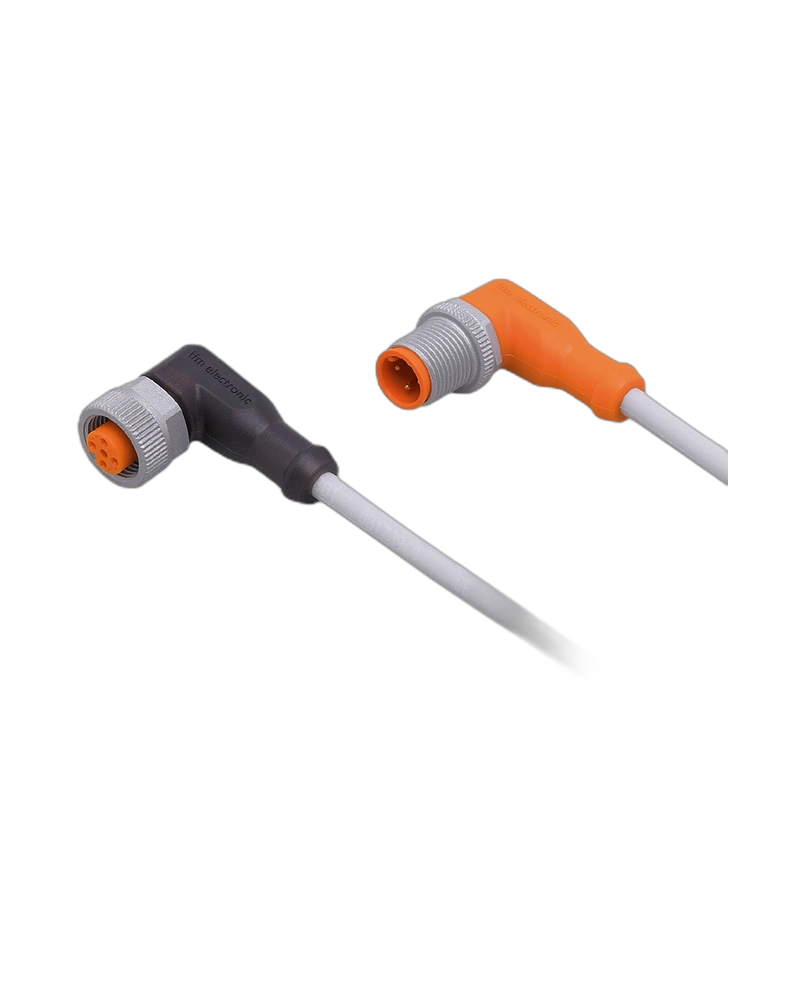

IFM EVW046 is a 5 m M12 connection cable with angled male and angled female connectors, LED status indication, gold-plated contacts and weld-spark-resistant PUR cable for industrial automation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVW046 is a robust M12 connection cable designed for reliable signal transmission in industrial automation and welding applications. It features angled M12 male and female connectors, making it suitable for installations where efficient cable routing is required around machinery and robotic equipment.
The 5 m PUR cable is resistant to welding sparks and suitable for drag-chain applications. Gold-plated contacts provide dependable electrical connectivity, while the connector design offers high resistance to vibration and shock.
Integrated LEDs provide clear visual indication of output and operating status, helping operators quickly identify the operating condition of connected equipment. IFM specifies IP65, IP67, IP68 and IP69K protection for this product family.
5 m Cable Length: Provides extended reach for industrial installations.
Angled-to-Angled Connectors: Supports efficient cable routing in restricted spaces.
LED Status Indication: Makes operating and output status easy to identify.
Gold-Plated Contacts: Supports reliable electrical signal transmission.
Weld-Spark Resistant PUR: Suitable for welding environments.
Drag-Chain Suitable: Supports repeated cable movement.
High Protection Rating: Suitable for harsh industrial conditions.
Industrial automation
Robotic welding
Automotive manufacturing
Machine tools
Sensor and actuator connections
Assembly systems
Production lines
| Specification | Details |
|---|---|
| Product Model | EVW046 |
| Product Type | M12 connection / jumper cable |
| Connector 1 | M12 angled male |
| Connector 2 | M12 angled female |
| Coding | A-coded |
| Number of Contacts | 4 |
| Contact Material | Gold-plated |
| Cable Length | 5 m |
| Cable Material | PUR |
| Cable Colour | Grey |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 4 × 0.34 mm² |
| Operating Voltage | 10–36 V DC |
| Current Rating | 4 A |
| Electrical Design | DC PNP |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| LED Indication | 2 × yellow output + 1 × green power |
| Housing Material | TPU |
| Sealing Material | FKM |
| Nut Material | Brass, weld-resistant coating |
| Drag Chain Suitability | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >2 million |
| Torsional Strain | ±180°/m |
| Special Features | Halogen-free, silicone-free, weld-spark resistant |
