IFM EVW045 is a 3 m M12 connection cable with angled male and female connectors, LED indication, gold-plated contacts and weld-spark-resistant PUR cable for demanding automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

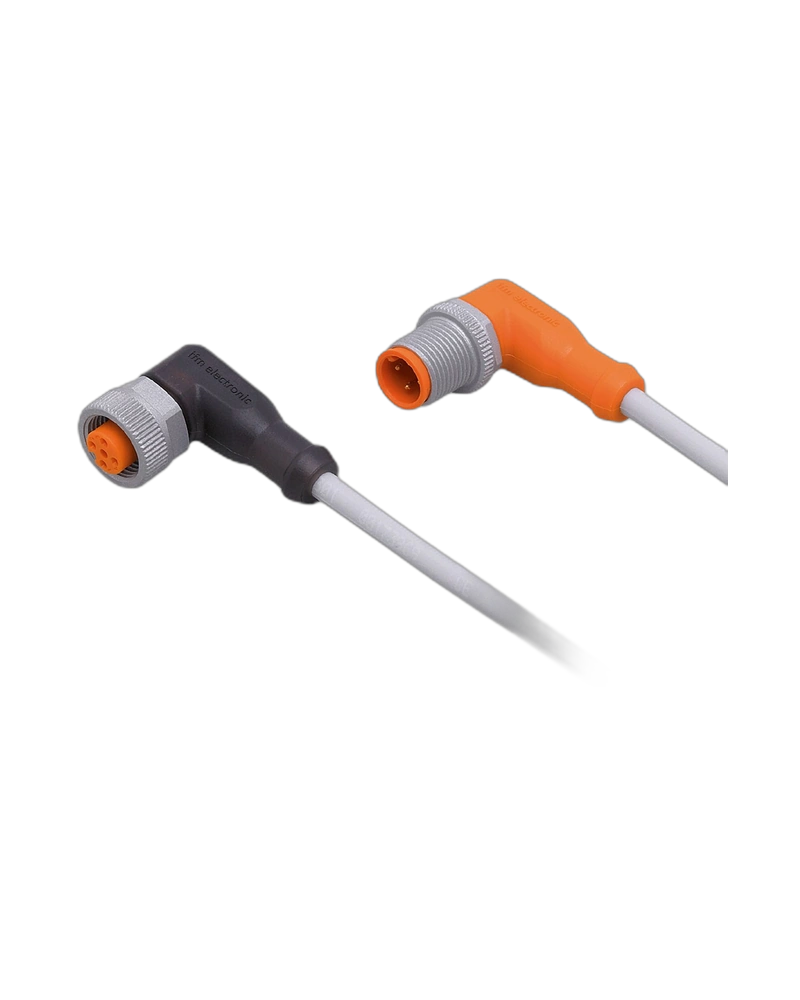

The IFM EVW045 is a 3 m M12 connection cable designed for reliable connections in industrial automation, welding and robotic applications.
Its angled male-to-angled female configuration provides improved routing flexibility, particularly in compact machinery and applications where connectors need to follow the direction of the cable run.
The cable uses a four-core, 0.34 mm² PUR construction that is resistant to welding sparks. Gold-plated contacts support dependable signal transmission, while integrated LEDs provide clear operating and output status indication.
The cable is suitable for drag-chain applications and is designed to withstand repeated bending and harsh industrial conditions.
3 m Cable Length: Provides flexible reach for industrial installations.
Angled-to-Angled Connectors: Optimizes cable routing around equipment.
LED Status Indication: Makes operating conditions easier to monitor.
Gold-Plated Contacts: Supports dependable electrical transmission.
Weld-Spark Resistant PUR: Suitable for welding environments.
High Dynamic Durability: Supports repeated machine movement.
Robotic welding
Automotive production
Industrial automation
Machine tools
Production lines
Sensor connections
Robotic assembly
| Specification | Details |
|---|---|
| Product Model | EVW045 |
| Product Type | Connection / jumper cable |
| Connector 1 | M12 angled male |
| Connector 2 | M12 angled female |
| Coding | A-coded |
| Number of Contacts | 4 |
| Contact Material | Gold-plated |
| Cable Length | 3 m |
| Cable Material | PUR |
| Cable Colour | Grey |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 4 × 0.34 mm² |
| Operating Voltage | 10–36 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| LED Indication | 2 × yellow + 1 × green |
| Housing Material | TPU |
| Sealing Material | FKM |
| Nut Material | Brass, weld-slag resistant |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >2 million |
| Torsional Strain | ±180°/m |
| Special Features | Silicone-free, halogen-free, weld-spark resistant |
