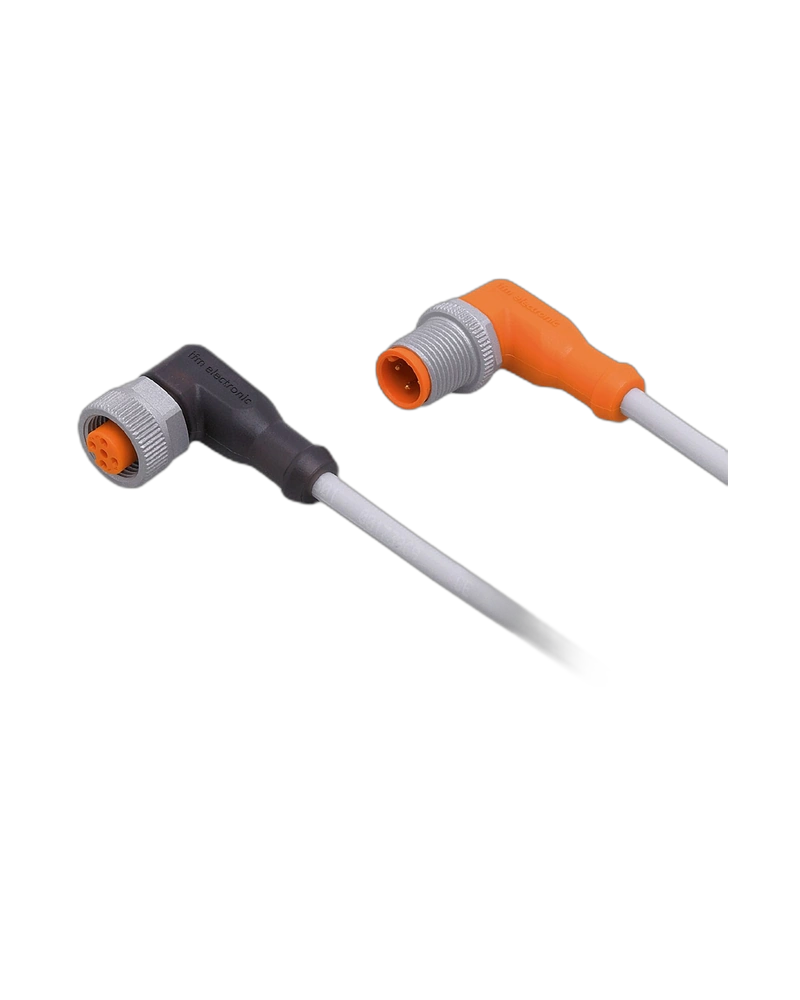

IFM EVW044 is a 2 m M12 connection cable with angled male and female connectors, LED status indication, gold-plated contacts and weld-spark-resistant PUR cable for industrial automation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVW044 provides a 2 m connection solution for industrial automation applications where flexible and space-efficient cable routing is important.
Both M12 connectors are angled, allowing the cable to follow the machine structure more efficiently than conventional straight connector configurations.
The cable features four 0.34 mm² conductors, gold-plated contacts and weld-spark-resistant PUR insulation. Integrated LEDs provide convenient operational status indication.
2 m Cable Length: Provides practical installation flexibility.
Angled Connectors: Helps optimize cable routing.
Integrated LED Indicators: Allows quick visual status checks.
Gold-Plated Contacts: Supports reliable electrical connectivity.
Weld-Spark Resistant: Suitable for welding environments.
Drag-Chain Suitable: Supports dynamic industrial applications.
Welding automation
Robotic systems
Automotive manufacturing
Machine tools
Industrial production lines
Sensor and actuator connections
Assembly machinery
| Specification | Details |
|---|---|
| Product Model | EVW044 |
| Product Type | Connection / jumper cable |
| Connector 1 | M12 angled male |
| Connector 2 | M12 angled female |
| Coding | A-coded |
| Number of Contacts | 4 |
| Contact Material | Gold-plated |
| Cable Length | 2 m |
| Cable Material | PUR |
| Cable Colour | Grey |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 4 × 0.34 mm² |
| Operating Voltage | 10–36 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| LED Indication | 2 × yellow + 1 × green |
| Housing Material | TPU |
| Sealing Material | FKM |
| Nut Material | Brass, weld-slag resistant |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >2 million |
| Special Features | Silicone-free, halogen-free, weld-spark resistant |
