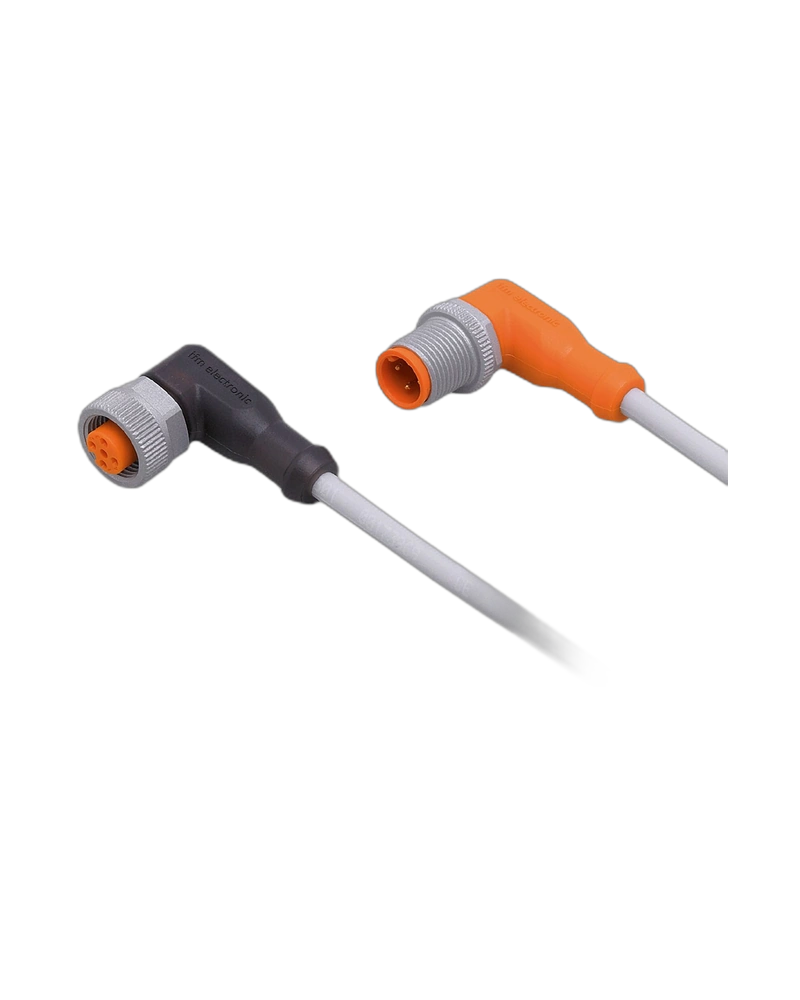

IFM EVW043 is a 1 m M12 connection cable with angled male and angled female connectors, LED indication, gold-plated contacts and weld-spark-resistant PUR cable.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVW043 is a 1 m M12 jumper cable designed for installations where both connectors require angled orientation for improved cable routing.
Unlike EVW038–042, this model uses an angled plug and angled socket configuration. This makes it particularly useful around compact machinery, robotic systems and installations where straight connectors could create unnecessary cable loops.
The cable includes integrated LED indication, gold-plated contacts and a weld-spark-resistant PUR cable. It is suitable for drag-chain applications and provides IP65/IP67/IP68/IP69K protection.
1 m Cable Length: Suitable for compact installations.
Angled-to-Angled Connectors: Optimizes cable routing in restricted spaces.
LED Indication: Provides quick status visibility.
Gold-Plated Contacts: Supports reliable electrical transmission.
Weld-Spark Resistant: Suitable for welding applications.
High Protection: Designed for demanding industrial environments.
Robotic welding
Automotive manufacturing
Industrial automation
Machine tools
Compact automation equipment
Sensor connections
Production machinery
| Specification | Details |
|---|---|
| Product Model | EVW043 |
| Product Type | Connection / jumper cable |
| Connector 1 | M12 angled male |
| Connector 2 | M12 angled female |
| Coding | A-coded |
| Number of Contacts | 4 |
| Contact Material | Gold-plated |
| Cable Length | 1 m |
| Cable Material | PUR |
| Cable Colour | Grey |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 4 × 0.34 mm² |
| Operating Voltage | 10–36 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| LED Indication | 2 × yellow + 1 × green |
| Housing Material | TPU |
| Sealing Material | FKM |
| Nut Material | Brass, weld-slag resistant |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >2 million |
| Torsional Strain | ±180°/m |
| Special Features | Silicone-free, halogen-free, weld-spark resistant |
