IFM EVW042 is a 10 m M12 connection cable with angled socket, LED status indication, gold-plated contacts and weld-spark-resistant PUR cable for extended industrial automation connections.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVW042 is the extended 10 m variant of this M12 jumper cable family, designed for installations requiring longer cable routing between automation components.

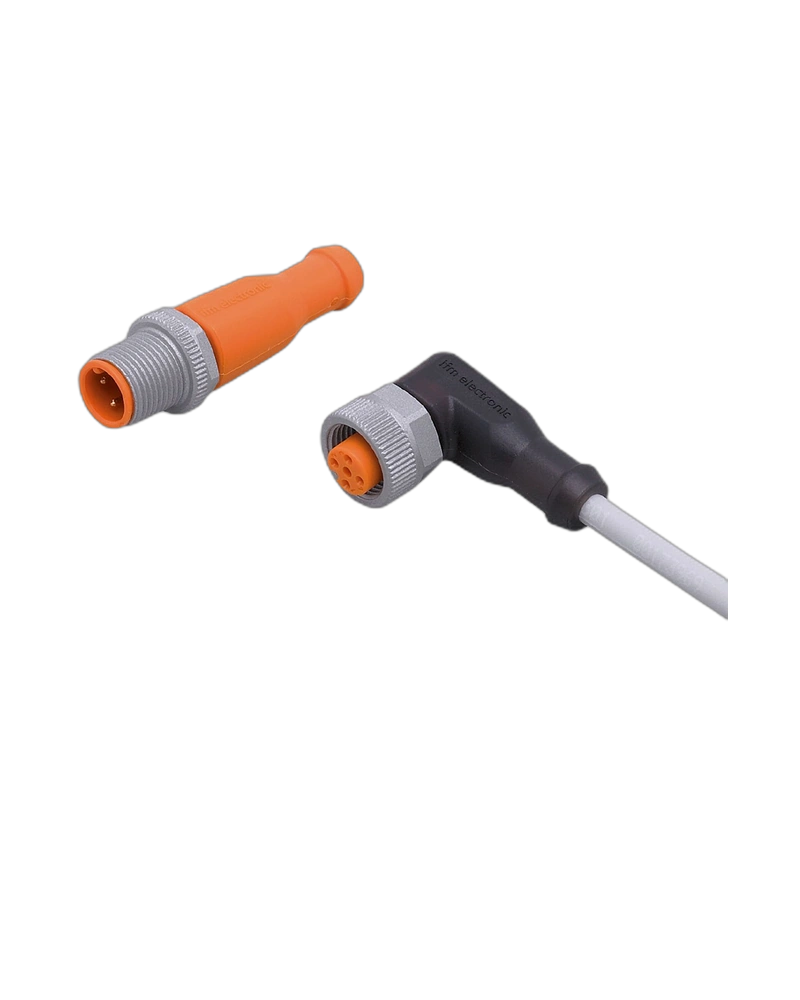

The straight M12 plug and angled M12 socket configuration provides flexible routing around machinery, while integrated LEDs enable convenient operating-status monitoring.
The PUR cable is resistant to welding sparks and suitable for drag-chain applications. Gold-plated contacts, FKM sealing and weld-slag-resistant locking components provide dependable performance in demanding environments. The EVW038–042 family is listed by IFM in 1, 2, 3, 5 and 10 m variants.
10 m Extended Cable: Suitable for large automation installations.
Angled Socket: Provides flexible routing.
Integrated LED Indication: Simplifies status monitoring.
Gold-Plated Contacts: Supports reliable connectivity.
Weld-Spark Resistant PUR: Suitable for welding environments.
High Dynamic Durability: Suitable for moving machinery.
Large welding cells
Automotive production lines
Industrial robotics
Machine tools
Production automation
Sensor networks
Assembly systems
| Specification | Details |
|---|---|
| Product Model | EVW042 |
| Product Type | Connection / jumper cable |
| Connector 1 | M12 straight male |
| Connector 2 | M12 angled female |
| Coding | A-coded |
| Number of Contacts | 4 |
| Contact Material | Gold-plated |
| Cable Length | 10 m |
| Cable Material | PUR |
| Cable Colour | Grey |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 4 × 0.34 mm² |
| Operating Voltage | 10–36 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| LED Indication | 2 × yellow + 1 × green |
| Housing Material | TPU |
| Sealing Material | FKM |
| Nut Material | Brass, weld-slag resistant |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >2 million |
| Special Features | Silicone-free, halogen-free, weld-spark resistant |
