IFM EVW041 is a 5 m M12 connection cable with angled socket, LED status indication, gold-plated contacts and weld-spark-resistant PUR cable for demanding industrial applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

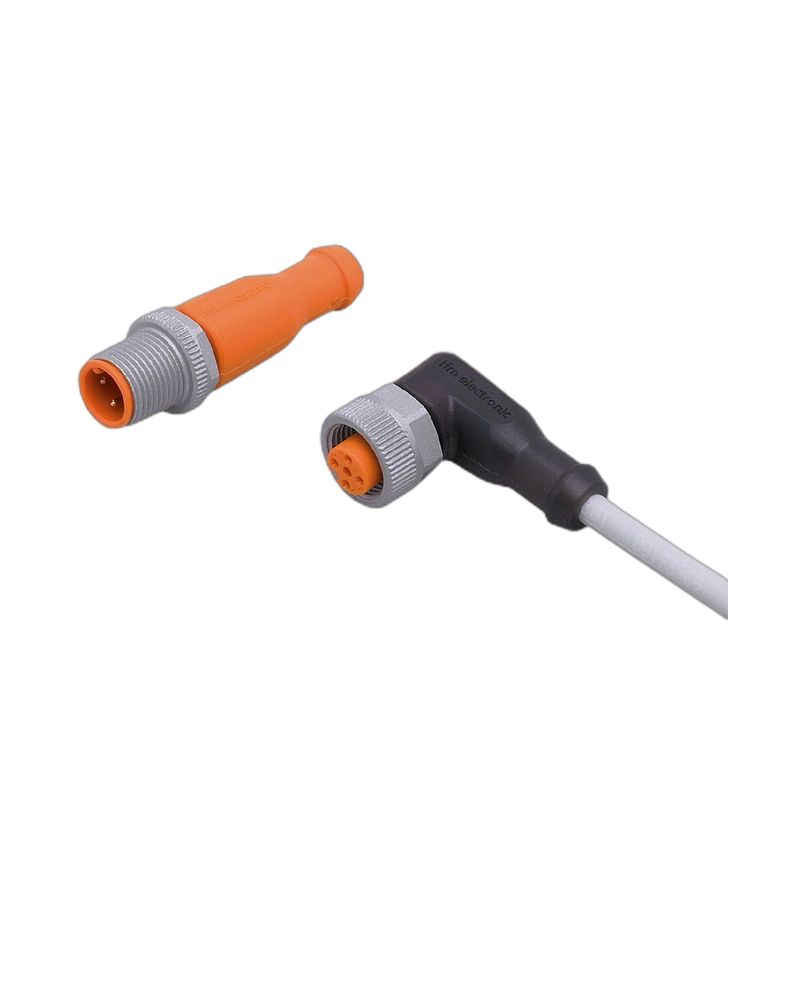

The IFM EVW041 is a 5 m M12 jumper cable developed for reliable signal connections in welding automation and industrial production environments.
Its straight M12 plug and angled M12 socket design provides flexible routing while the 5 m cable length supports installations where components are positioned farther apart.
The weld-spark-resistant PUR cable is suitable for drag-chain applications. Gold-plated contacts help maintain stable electrical connections, while integrated LED indicators provide clear status information.
5 m Extended Length: Suitable for larger machine layouts.
Angled Socket: Helps improve cable routing.
LED Status Indication: Provides convenient visual monitoring.
Gold-Plated Contacts: Supports reliable electrical performance.
Weld-Spark Resistant: Suitable for welding applications.
Drag-Chain Suitable: Supports repeated movement.
Welding cells
Automotive manufacturing
Robotic systems
Industrial automation
Machine tools
Sensor and actuator connections
Production equipment
| Specification | Details |
|---|---|
| Product Model | EVW041 |
| Product Type | Connection / jumper cable |
| Connector 1 | M12 straight male |
| Connector 2 | M12 angled female |
| Coding | A-coded |
| Number of Contacts | 4 |
| Contact Material | Gold-plated |
| Cable Length | 5 m |
| Cable Material | PUR |
| Cable Colour | Grey |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 4 × 0.34 mm² |
| Operating Voltage | 10–36 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| LED Indication | 2 × yellow + 1 × green |
| Housing Material | TPU |
| Sealing Material | FKM |
| Nut Material | Brass, weld-slag resistant |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >2 million |
| Special Features | Halogen-free, silicone-free, weld-spark resistant |
