IFM EVW040 is a 3 m M12 connection cable with angled socket, integrated LED indication, gold-plated contacts and weld-spark-resistant PUR cable for industrial welding applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVW040 provides a 3 m connection solution for industrial automation systems operating in demanding welding and manufacturing environments.

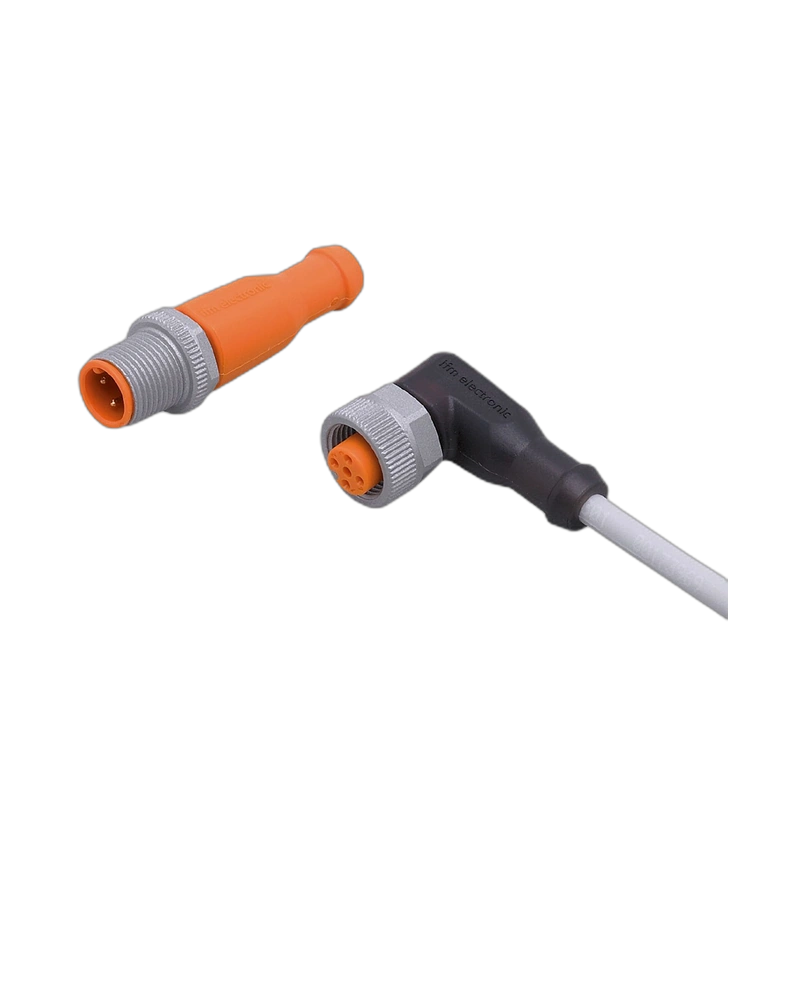

The cable combines a straight M12 plug with an angled M12 socket, allowing flexible routing around machines and robotic equipment. Its four-core PUR cable is designed for durability and resistance to welding sparks.
Integrated LED indicators provide clear operating and output status information. The cable is also designed for drag-chain applications and repeated bending.
3 m Cable Length: Provides extended installation flexibility.
Angled Socket: Supports space-efficient routing.
Integrated LED Indicators: Allows quick operating-status checks.
Gold-Plated Contacts: Helps maintain reliable electrical connectivity.
Weld-Spark Resistant: Suitable for welding cells.
Dynamic Cable Performance: Suitable for moving machinery.
Robotic welding
Automotive production
Industrial automation
Machine tools
Assembly equipment
Sensor connections
Production lines
| Specification | Details |
|---|---|
| Product Model | EVW040 |
| Product Type | Connection / jumper cable |
| Connector 1 | M12 straight male |
| Connector 2 | M12 angled female |
| Coding | A-coded |
| Number of Contacts | 4 |
| Contact Material | Gold-plated |
| Cable Length | 3 m |
| Cable Material | PUR |
| Cable Colour | Grey |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 4 × 0.34 mm² |
| Operating Voltage | 10–36 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| LED Indication | 2 × yellow + 1 × green |
| Housing Material | TPU |
| Sealing Material | FKM |
| Nut Material | Brass, weld-slag resistant |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >2 million |
| Special Features | Silicone-free, halogen-free, weld-spark resistant |
