IFM EVW039 is a 2 m M12 connection cable with angled socket, LED status indication, gold-plated contacts and weld-spark-resistant PUR construction for industrial automation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVW039 is a 2 m M12 jumper cable designed for reliable device interconnection in industrial automation and welding applications.

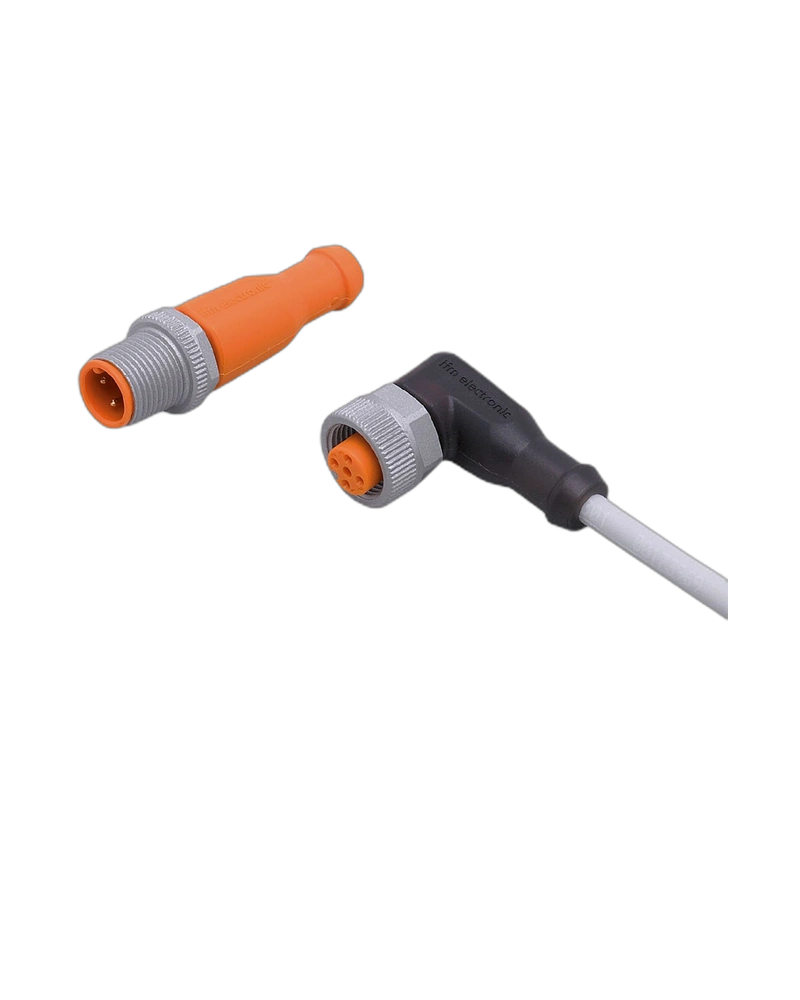

The straight M12 plug and angled M12 socket configuration allows the cable to be routed efficiently around machine components. Its PUR cable is resistant to welding sparks and suitable for drag-chain applications.
Integrated LEDs provide visual indication of operation and output status, helping operators and maintenance teams identify connection conditions quickly.
2 m Cable Length: Provides practical installation flexibility.
Angled Socket: Helps simplify cable routing.
Integrated LED Indicators: Enables quick status monitoring.
Gold-Plated Contacts: Supports dependable signal transmission.
Weld-Spark Resistant PUR: Suitable for harsh production environments.
High Protection Rating: Supports demanding industrial conditions.
Welding robots
Automotive assembly
Industrial machinery
Machine tools
Sensor connections
Production lines
Robotic automation
| Specification | Details |
|---|---|
| Product Model | EVW039 |
| Product Type | Connection / jumper cable |
| Connector 1 | M12 straight male |
| Connector 2 | M12 angled female |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable Length | 2 m |
| Cable Material | PUR |
| Cable Colour | Grey |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 4 × 0.34 mm² |
| Operating Voltage | 10–36 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| LED Indication | 2 × yellow + 1 × green |
| Housing Material | TPU |
| Sealing Material | FKM |
| Nut Material | Brass, weld-slag resistant |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >2 million |
| Special Features | Halogen-free, silicone-free, weld-spark resistant |
