IFM EVW038 is a 1 m M12 connection cable with straight plug and angled socket, integrated LED indication, gold-plated contacts and weld-spark-resistant PUR cable.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

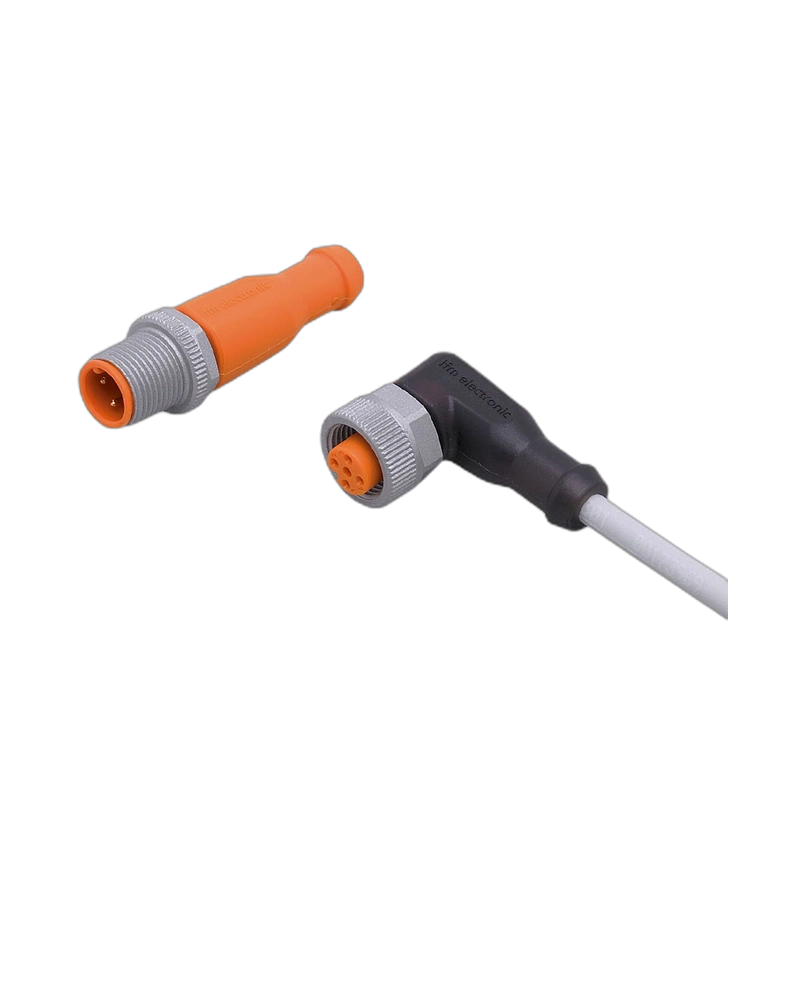

The IFM EVW038 is a 1 m M12 jumper cable designed for industrial automation and welding applications. It combines a straight M12 plug with an angled M12 socket to provide flexible cable routing around machinery.
A key feature of this series is its integrated LED indication, with two yellow LEDs for output status and one green LED for operation. This makes the connection status easier to monitor during machine operation.
The cable is manufactured from weld-spark-resistant PUR and is suitable for drag-chain applications. Gold-plated contacts provide dependable electrical connection, while the special connector coating helps resist welding slag.
1 m Cable Length: Suitable for standard machine connections.
Angled Socket: Provides flexible cable routing.
LED Status Indication: Makes operating and output status easy to monitor.
Gold-Plated Contacts: Supports reliable electrical transmission.
Weld-Spark Resistant: Suitable for welding environments.
Drag-Chain Suitable: Designed for repeated movement.
Robotic welding
Automotive manufacturing
Industrial automation
Machine tools
Sensor and actuator connections
Assembly systems
Production lines
| Specification | Details |
|---|---|
| Product Model | EVW038 |
| Product Type | Connection / jumper cable |
| Connector 1 | M12 straight male |
| Connector 2 | M12 angled female |
| Coding | A-coded |
| Number of Contacts | 4 |
| Contact Material | Gold-plated |
| Cable Length | 1 m |
| Cable Material | PUR |
| Cable Colour | Grey |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 4 × 0.34 mm² |
| Operating Voltage | 10–36 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Housing Material | TPU |
| Sealing Material | FKM |
| Nut Material | Brass, weld-slag resistant |
| LED Indication | 2 × yellow status + 1 × green operation |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >2 million |
| Special Features | Silicone-free, halogen-free, weld-spark resistant |
