IFM EVW037 is a 0.3 m M12 connection cable with straight male and straight female connectors, gold-plated contacts and weld-spark-resistant PUR cable for reliable automation connections.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

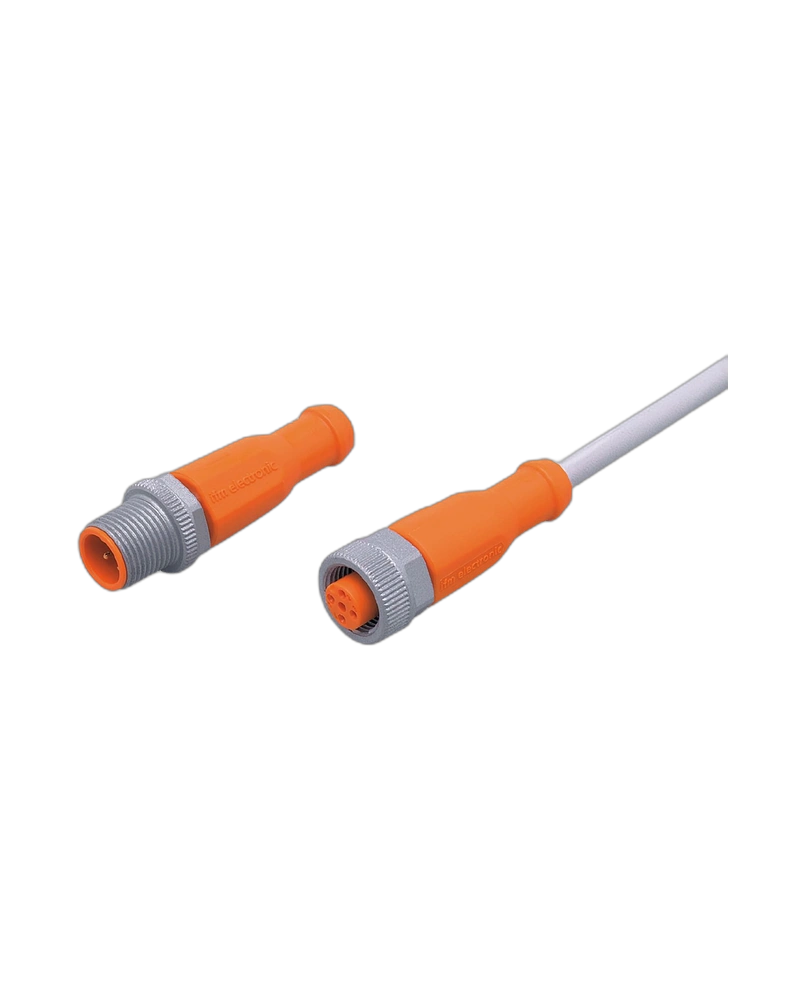

The IFM EVW037 is a compact M12 jumper cable designed for short-distance connections between industrial automation devices. The cable incorporates straight M12 male and female connectors for straightforward installation.
Its 0.3 m PUR cable contains four 0.34 mm² conductors and is resistant to welding sparks. The halogen-free cable construction and gold-plated contacts support reliable operation in demanding industrial environments.
The cable is suitable for drag-chain applications and provides high resistance to repeated bending, supporting more than two million bending cycles.
0.3 m Compact Cable: Ideal for close-proximity device connections.
Straight M12 Connectors: Simplifies installation.
Gold-Plated Contacts: Supports stable electrical conductivity.
Weld-Spark Resistant: Suitable for welding applications.
High Flexibility: Suitable for moving machinery.
Industrial Protection: Supports IP65/IP67/IP68/IP69K environments.
Industrial automation
Welding equipment
Robotic machinery
Automotive manufacturing
Machine tools
Sensor connections
Production equipment
| Specification | Details |
|---|---|
| Product Model | EVW037 |
| Product Type | Connection / jumper cable |
| Connector 1 | M12 straight male |
| Connector 2 | M12 straight female |
| Coding | A-coded |
| Number of Contacts | 4 |
| Contact Material | Gold-plated |
| Cable Length | 0.3 m |
| Cable Material | PUR |
| Cable Colour | Grey |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 4 × 0.34 mm² |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >2 million |
| Torsional Strain | ±180°/m |
| Sealing Material | FKM |
| Housing Material | TPU |
| Nut Material | Brass, weld-coated |
| Drag Chain Suitability | Yes |
| Special Features | Halogen-free, silicone-free, weld-spark resistant |
