IFM EVW036 is a compact 0.3 m M12 connection cable with straight male and angled female connectors, gold-plated contacts and weld-spark-resistant PUR cable for industrial automation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

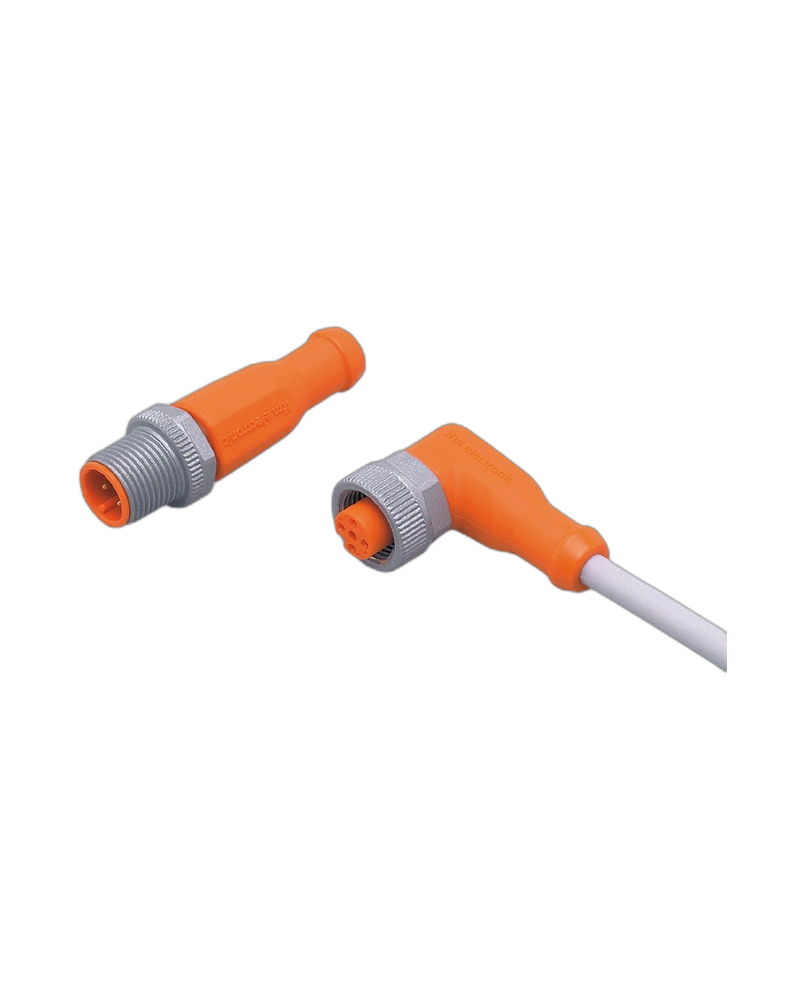

The IFM EVW036 is a compact M12 jumper cable designed for reliable connections between sensors, actuators and automation components in demanding industrial environments. It features a straight M12 plug and angled M12 socket, making it suitable where space-efficient cable routing is required.
The cable uses a 0.3 m PUR cable with 4 × 0.34 mm² conductors and is resistant to welding sparks. Its halogen-free construction supports use in industrial manufacturing environments, while gold-plated contacts provide reliable electrical conductivity.
The connectors use robust TPU housings, brass locking components with weld-slag-resistant coating and FKM sealing. The cable is suitable for drag-chain applications and supports more than two million bending cycles.
Compact 0.3 m Length: Ideal for short-distance device connections.
Straight-to-Angled Configuration: Provides flexible routing in restricted spaces.
Gold-Plated Contacts: Supports reliable signal transmission.
Weld-Spark Resistant PUR: Suitable for welding environments.
Drag-Chain Suitable: Supports dynamic machine applications.
High Protection: IP65, IP67, IP68 and IP69K protection.
Industrial automation
Robotic welding systems
Automotive production
Machine tools
Sensor connections
Actuator connections
Assembly machinery
| Specification | Details |
|---|---|
| Product Model | EVW036 |
| Product Type | Connection / jumper cable |
| Connector 1 | M12 straight male |
| Connector 2 | M12 angled female |
| Coding | A-coded |
| Number of Contacts | 4 |
| Contact Material | Gold-plated |
| Cable Length | 0.3 m |
| Cable Material | PUR |
| Cable Colour | Grey |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 4 × 0.34 mm² |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Cable Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >2 million |
| Torsional Strain | ±180°/m |
| Sealing Material | FKM |
| Housing Material | TPU |
| Nut Material | Brass, weld-coated |
| Drag Chain Suitability | Yes |
| Special Features | Halogen-free, silicone-free, weld-spark resistant |
