IFM EVW035 is a 10 m M12 connection cable with straight male and angled female connectors, gold-plated contacts and weld-slag-resistant PUR cable for extended welding automation connections.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVW035 is a long-length 10 m M12 connection cable designed for industrial automation and welding applications where extended cable routing is required.

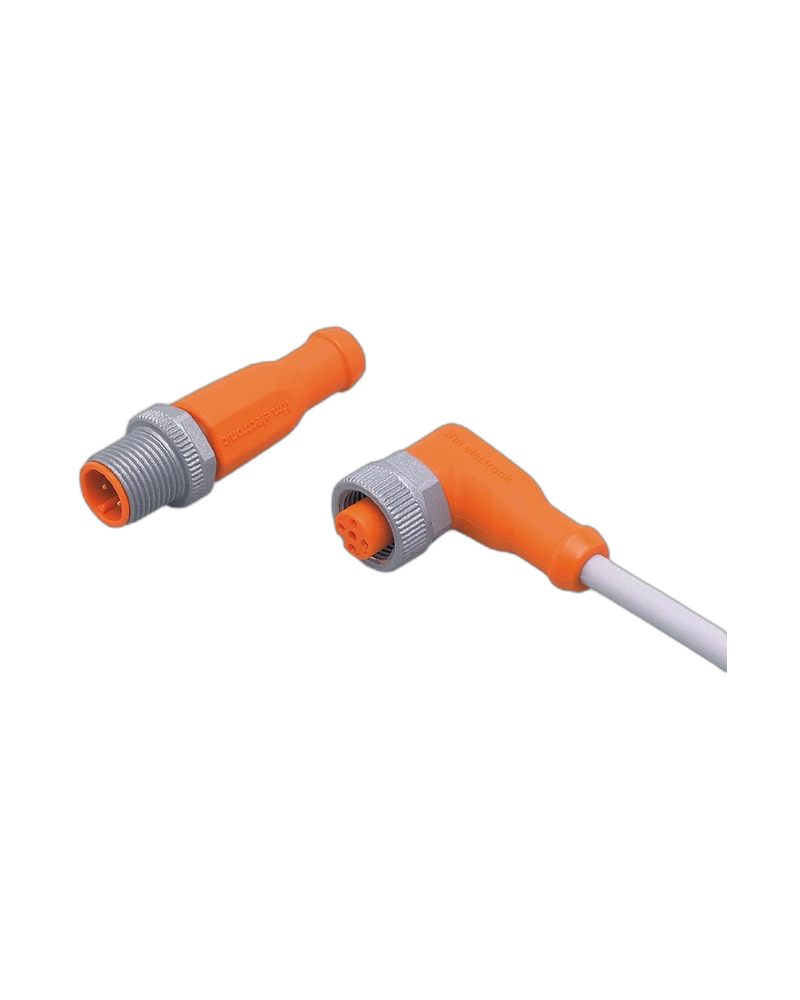

It combines a straight M12 male connector with an angled M12 female connector, providing improved flexibility when routing the cable around machines, robots and production equipment.
The PUR cable is resistant to welding sparks, halogen-free and suitable for drag-chain applications. Gold-plated contacts support reliable electrical transmission, while anti-spatter brass locking components and FKM sealing improve durability in harsh environments.
The cable supports IP65, IP67, IP68 and IP69K protection, a minimum bending radius of 10 times the cable diameter and more than two million bending cycles. IFM's connection-technology range lists EVW035 as the 10 m variant of this straight/angled 4-pole jumper cable family.
10 m Extended Length: Suitable for large machine and production layouts.
Straight-to-Angled Configuration: Provides flexible installation.
Gold-Plated Contacts: Supports reliable electrical performance.
Weld-Spark Resistant PUR Cable: Designed for welding environments.
Drag-Chain Suitable: Supports continuous machine movement.
High IP Protection: Suitable for harsh industrial conditions.
Large robotic welding cells
Automotive manufacturing
Industrial automation
Machine tools
Production lines
Robotic systems
Sensor and actuator connections
| Specification | Details |
|---|---|
| Product Model | EVW035 |
| Product Type | Connection / jumper cable |
| Connector 1 | M12 straight male |
| Connector 2 | M12 angled female |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable Length | 10 m |
| Cable Material | PUR |
| Cable Colour | Grey |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 4 × 0.34 mm² |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Moving Temperature | -25 to +90 °C |
| Housing Material | TPU |
| Sealing Material | FKM |
| Nut Material | Brass, anti-spatter |
| Drag Chain Suitability | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >2 million |
| Torsional Strain | ±180°/m |
| Special Features | Silicone-free, halogen-free, weld-spark resistant |
