IFM EVW034 is a 5 m M12 connection cable with straight male and angled female connectors, gold-plated contacts and weld-slag-resistant PUR cable for reliable industrial welding applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVW034 is a 5 m M12 connection cable designed for industrial automation systems that require a longer connection distance and flexible cable routing.

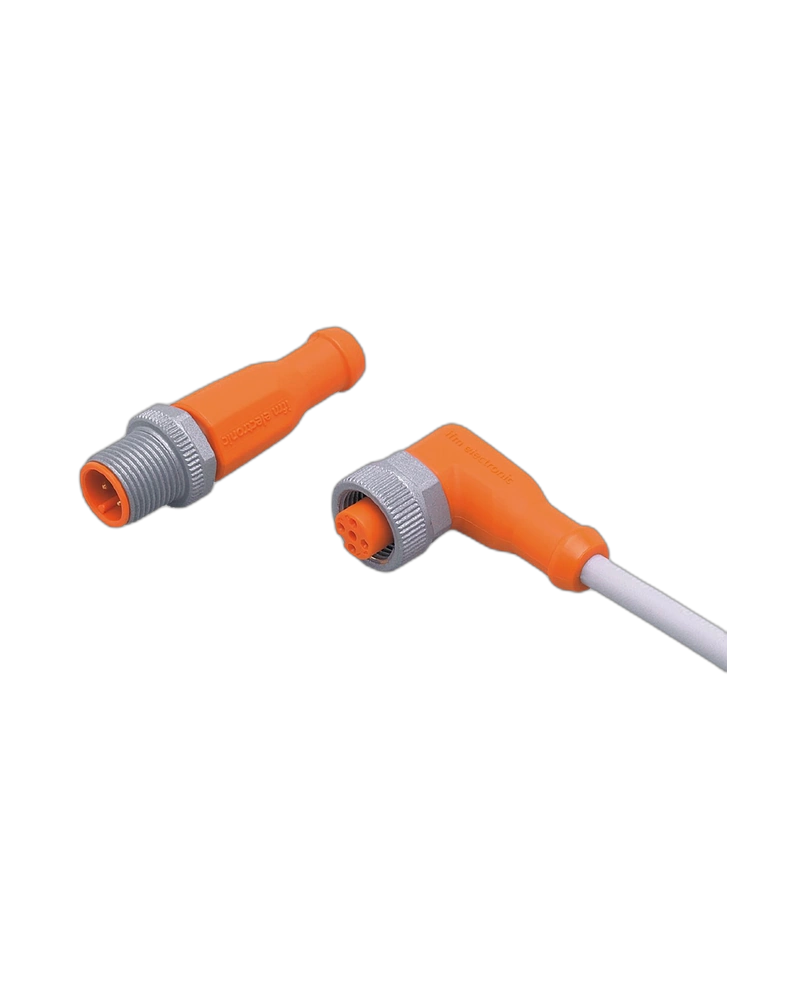

The straight M12 male and angled M12 female connector configuration helps simplify installation around machine components and restricted spaces.
The PUR cable is resistant to welding sparks and suitable for drag-chain applications. Gold-plated contacts provide dependable electrical connectivity, while the brass anti-spatter locking mechanism and FKM sealing help protect the connection.
The cable provides IP65, IP67, IP68 and IP69K protection and supports more than two million bending cycles. IFM lists EVW034 as part of its M12 4-pole jumper cable range with a 5 m cable length.
5 m Cable Length: Suitable for extended machine connections.
Angled Female Connector: Provides flexible cable routing.
Gold-Plated Contacts: Supports reliable signal transmission.
Weld-Slag Resistant: Suitable for welding environments.
Drag-Chain Suitable: Supports dynamic cable movement.
Robust Industrial Construction: Designed for demanding applications.
Welding cells
Automotive manufacturing
Industrial automation
Robotic systems
Machine tools
Sensor connections
Production-line equipment
| Specification | Details |
|---|---|
| Product Model | EVW034 |
| Product Type | Connection / jumper cable |
| Connector 1 | M12 straight male |
| Connector 2 | M12 angled female |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable Length | 5 m |
| Cable Material | PUR |
| Cable Colour | Grey |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 4 × 0.34 mm² |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Moving Temperature | -25 to +90 °C |
| Housing Material | TPU |
| Sealing Material | FKM |
| Nut Material | Brass, anti-spatter |
| Drag Chain Suitability | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >2 million |
| Torsional Strain | ±180°/m |
| Special Features | Silicone-free, halogen-free, weld-spark resistant |
