IFM EVW033 is a 4 m M12 connection cable with straight male and angled female connectors, gold-plated contacts and weld-slag-resistant PUR construction for industrial welding and automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

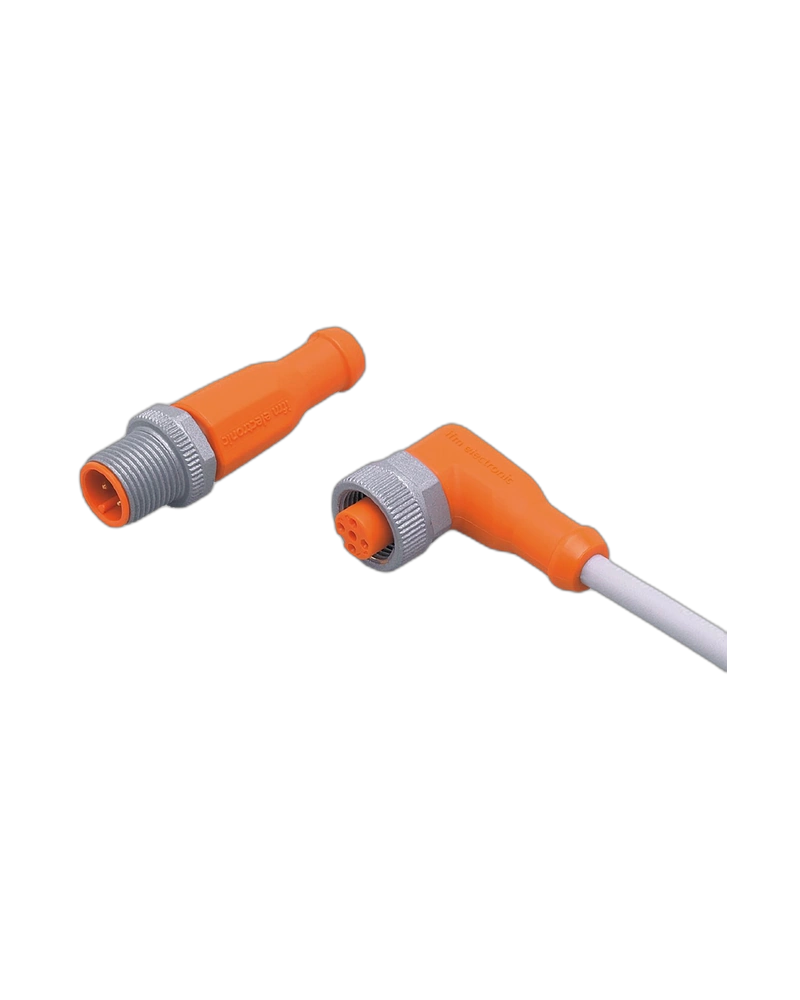

The IFM EVW033 is a 4 m M12 connection cable designed for dependable electrical connections in industrial automation and welding environments.
The straight male-to-angled female configuration provides improved flexibility when installing cables around machines, sensors and robotic equipment.
Its PUR cable is resistant to welding sparks and suitable for drag-chain applications. The cable uses gold-plated contacts for reliable electrical transmission and anti-spatter locking components for enhanced durability.
The EVW033 provides IP65, IP67, IP68 and IP69K protection and supports more than two million bending cycles, making it suitable for demanding dynamic installations.
4 m Cable Length: Provides useful reach for larger machine layouts.
Angled Female Connector: Simplifies cable routing.
Gold-Plated Contacts: Supports dependable electrical performance.
Welding-Spark Resistant: Designed for welding environments.
Dynamic Application Support: Suitable for moving machinery.
High IP Protection: Provides protection against dust and moisture.
Robotic welding
Automotive production
Industrial machinery
Machine tools
Production lines
Sensor and actuator connections
Automation equipment
| Specification | Details |
|---|---|
| Product Model | EVW033 |
| Product Type | Connection / jumper cable |
| Connector 1 | M12 straight male |
| Connector 2 | M12 angled female |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable Length | 4 m |
| Cable Material | PUR |
| Cable Colour | Grey |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 4 × 0.34 mm² |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Moving Temperature | -25 to +90 °C |
| Housing Material | TPU |
| Sealing Material | FKM |
| Nut Material | Brass, anti-spatter |
| Drag Chain Suitability | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >2 million |
| Torsional Strain | ±180°/m |
| Special Features | Silicone-free, halogen-free, weld-spark resistant |
