IFM EVW032 is a 3 m M12 connection cable with straight male and angled female connectors, gold-plated contacts and weld-slag-resistant PUR cable for demanding welding automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVW032 is a 3 m M12 connection cable designed for reliable interconnection of sensors, actuators and automation components in demanding industrial environments.

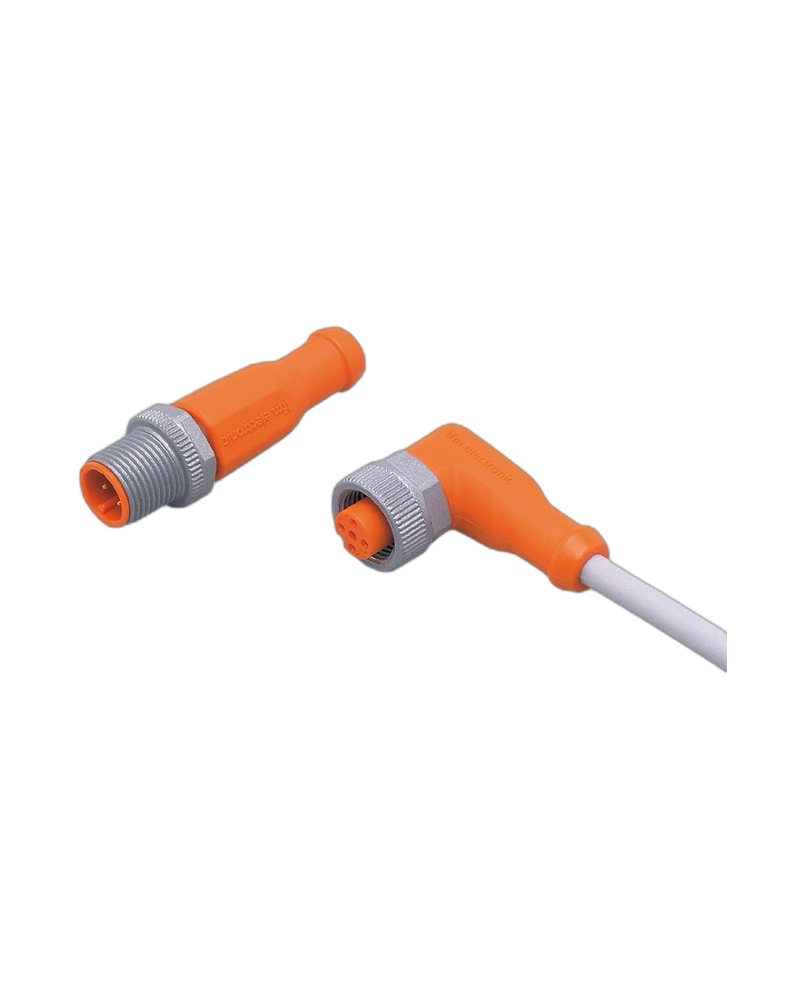

Its straight male and angled female connector arrangement provides flexibility when routing the cable around machinery. The 3 m PUR cable is resistant to welding sparks and is suitable for drag-chain installations.
Gold-plated contacts provide reliable electrical conductivity, while the anti-spatter brass locking mechanism and FKM sealing provide additional protection.
The cable is designed for dynamic industrial use, supporting more than two million bending cycles and a travel speed of up to 3.3 m/s under specified conditions.
3 m Cable Length: Provides extended connection flexibility.
Angled Female Connector: Helps route the cable around machine structures.
Gold-Plated Contacts: Ensures reliable electrical connectivity.
Weld-Slag Resistant PUR: Suitable for welding applications.
Drag-Chain Suitable: Supports repeated movement.
High IP Protection: Suitable for harsh industrial conditions.
Welding robots
Automotive manufacturing
Industrial automation
Machine tools
Production lines
Sensor connections
Robotic assembly
| Specification | Details |
|---|---|
| Product Model | EVW032 |
| Product Type | Connection / jumper cable |
| Connector 1 | M12 straight male |
| Connector 2 | M12 angled female |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable Length | 3 m |
| Cable Material | PUR |
| Cable Colour | Grey |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 4 × 0.34 mm² |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Moving Temperature | -25 to +90 °C |
| Housing Material | TPU |
| Sealing Material | FKM |
| Nut Material | Brass, anti-spatter |
| Drag Chain Suitability | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >2 million |
| Torsional Strain | ±180°/m |
| Special Features | Silicone-free, halogen-free, weld-spark resistant |
