IFM EVW031 is a 2 m M12 connection cable with straight male and angled female connectors, gold-plated contacts and weld-slag-resistant PUR cable for reliable industrial welding applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVW031 provides a flexible connection solution for industrial automation equipment used in welding and other demanding environments.

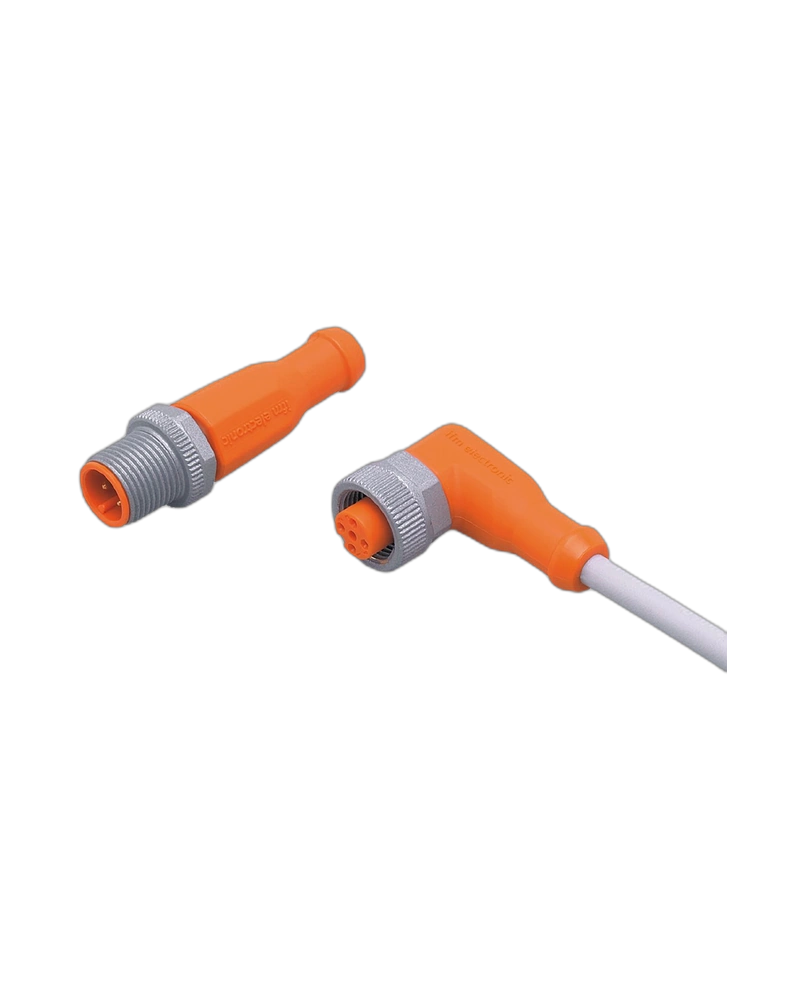

It combines a straight M12 male connector with an angled M12 female connector, making it useful where the cable needs to be routed around machine components.
The 2 m PUR cable is resistant to welding sparks and suitable for drag-chain applications. Gold-plated contacts support reliable electrical performance, while FKM sealing and anti-spatter brass locking components provide additional protection.
The cable supports IP65, IP67, IP68 and IP69K protection and more than two million bending cycles.
2 m Cable Length: Provides practical reach for industrial installations.
Straight-to-Angled Configuration: Improves routing flexibility.
Gold-Plated Contacts: Supports reliable electrical connection.
Welding-Spark Resistant: Suitable for welding cells.
High Dynamic Durability: Supports repeated cable movement.
High IP Rating: Protects against harsh environmental conditions.
Robotic welding
Automotive assembly
Industrial automation
Machine tools
Sensor and actuator connections
Production lines
Robotic equipment
| Specification | Details |
|---|---|
| Product Model | EVW031 |
| Product Type | Connection / jumper cable |
| Connector 1 | M12 straight male |
| Connector 2 | M12 angled female |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable Length | 2 m |
| Cable Material | PUR |
| Cable Colour | Grey |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 4 × 0.34 mm² |
| Operating Voltage | 250 V AC / 300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Moving Temperature | -25 to +90 °C |
| Housing Material | TPU |
| Sealing Material | FKM |
| Nut Material | Brass, anti-spatter |
| Drag Chain Suitability | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >2 million |
| Torsional Strain | ±180°/m |
| Weight | Approx. 97.7 g |
| Special Features | Silicone-free, halogen-free, weld-spark resistant |
