IFM EVW030 is a 1 m M12 connection cable with straight male and angled female connectors, gold-plated contacts and weld-slag-resistant PUR cable for flexible welding automation connections.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVW030 is a compact 1 m M12 connection cable designed for industrial automation and welding applications where flexible cable routing is required.

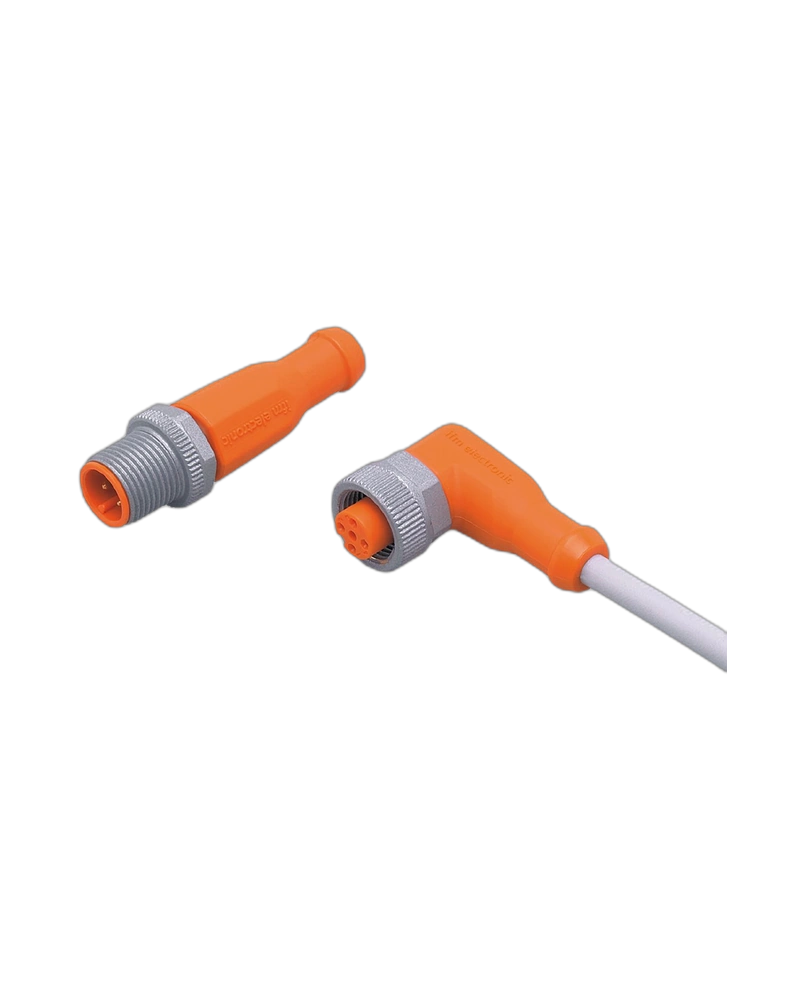

The straight M12 male connector and angled M12 female connector allow convenient routing around machine structures and restricted installation areas.
Its PUR cable is resistant to welding sparks, halogen-free and suitable for drag-chain applications. Gold-plated contacts provide dependable electrical conductivity, while the brass anti-spatter locking mechanism helps protect the connection from welding residues.
The cable provides IP65, IP67, IP68 and IP69K protection and supports more than two million bending cycles.
1 m Compact Cable: Suitable for short device-to-device connections.
Angled Female Connector: Helps improve cable routing.
Gold-Plated Contacts: Supports reliable signal transmission.
Weld-Spark Resistant: Suitable for welding areas.
Drag-Chain Suitable: Supports dynamic applications.
High Environmental Protection: IP65 to IP69K protection.
Welding automation
Robotic welding cells
Automotive manufacturing
Machine tools
Sensor connections
Industrial machinery
Assembly systems
| Specification | Details |
|---|---|
| Product Model | EVW030 |
| Product Type | Connection / jumper cable |
| Connector 1 | M12 straight male |
| Connector 2 | M12 angled female |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable Length | 1 m |
| Cable Material | PUR |
| Cable Colour | Grey |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 4 × 0.34 mm² |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Moving Temperature | -25 to +90 °C |
| Housing Material | TPU |
| Sealing Material | FKM |
| Nut Material | Brass, anti-spatter |
| Drag Chain Suitability | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >2 million |
| Torsional Strain | ±180°/m |
| Special Features | Silicone-free, halogen-free, weld-spark resistant |
