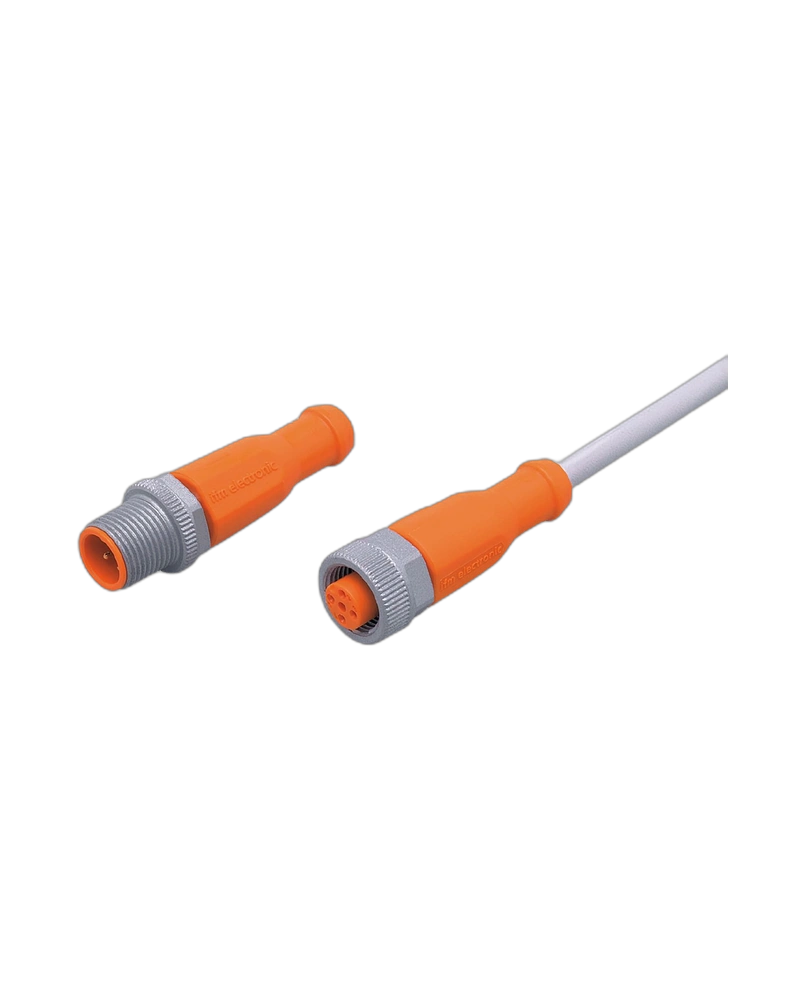

IFM EVW029 is a 10 m M12 connection cable with straight male and straight female connectors, gold-plated contacts and weld-slag-resistant PUR construction for extended industrial automation connections.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM EVW029 is a long-length 10 m M12 connection cable designed for industrial automation systems where extended cable routing is required.
It uses straight M12 male and female connectors with four gold-plated contacts for reliable electrical connection. The PUR cable is halogen-free, silicone-free and resistant to welding sparks.
Its anti-spatter brass locking components and FKM sealing provide additional durability in welding environments. The cable is suitable for drag-chain applications and can withstand more than two million bending cycles.
With IP65, IP67, IP68 and IP69K protection, EVW029 is suitable for demanding industrial installations where cables may be exposed to dust, moisture and cleaning processes.
10 m Extended Cable: Ideal for long-distance industrial connections.
Straight M12 Male-to-Female Design: Enables easy installation.
Gold-Plated Contacts: Provides stable electrical connectivity.
Welding-Spark Resistant: Suitable for welding environments.
High Flexibility: Suitable for moving applications.
High IP Protection: Supports harsh industrial conditions.
Large welding cells
Automotive production lines
Industrial automation
Robotic systems
Machine tools
Sensor networking
Production machinery
| Specification | Details |
|---|---|
| Product Model | EVW029 |
| Product Type | Connection / jumper cable |
| Connector 1 | M12 straight male |
| Connector 2 | M12 straight female |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable Length | 10 m |
| Cable Material | PUR |
| Cable Colour | Grey |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 4 × 0.34 mm² |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Moving Temperature | -25 to +90 °C |
| Housing Material | TPU |
| Sealing Material | FKM |
| Nut Material | Brass, weld-coated |
| Drag Chain Suitability | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >2 million |
| Torsional Strain | ±180°/m |
| Special Features | Silicone-free, halogen-free, weld-spark resistant |
