IFM EVW028 is a 5 m M12 connection cable with straight male and straight female connectors, gold-plated contacts and weld-slag-resistant PUR cable for reliable welding automation connections.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

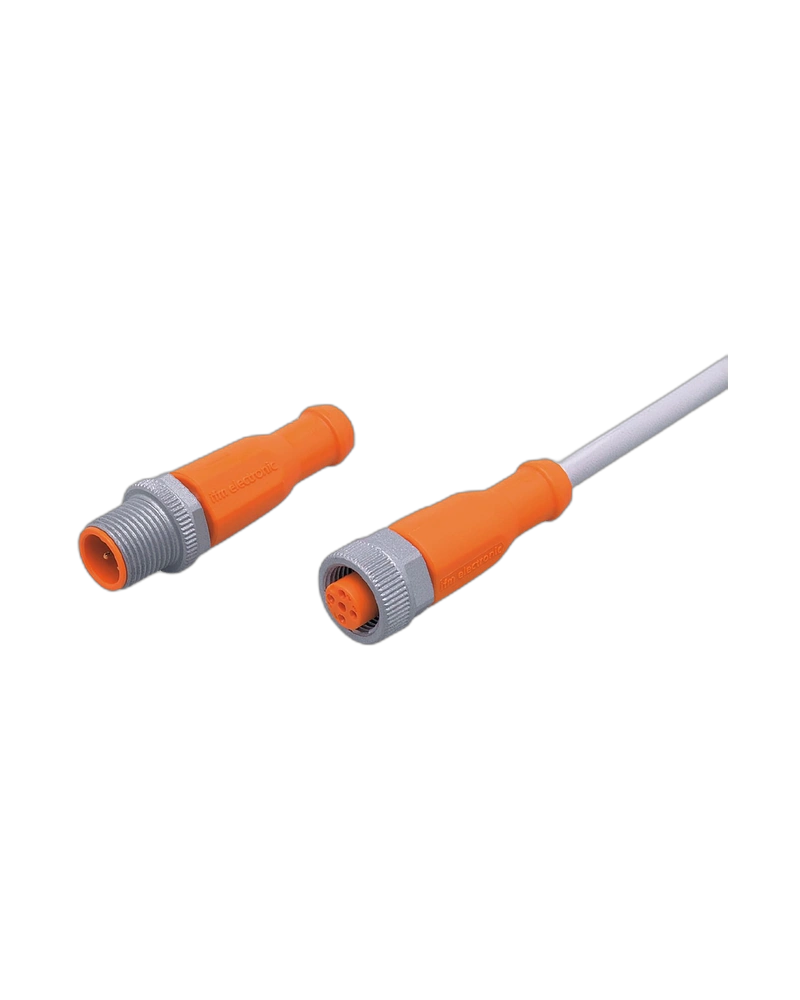

The IFM EVW028 is a 5 m M12 connection cable designed for demanding industrial automation and welding applications. It features straight M12 male and female connectors for convenient connection between compatible automation devices.
The 4-core PUR cable has a 4.9 mm diameter and is resistant to welding sparks. Its halogen-free and silicone-free construction supports reliable use in harsh manufacturing environments.
Gold-plated contacts help provide stable signal transmission, while the anti-spatter brass locking components protect the connection against welding residues.
The cable is suitable for drag-chain applications and supports more than two million bending cycles. IP65, IP67, IP68 and IP69K protection enables use in demanding industrial environments.
5 m Cable Length: Provides extended reach for industrial installations.
Straight M12 Connectors: Simplifies device interconnection.
Gold-Plated Contacts: Provides reliable electrical connectivity.
Weld-Slag Resistant: Designed for welding applications.
Drag-Chain Compatible: Suitable for moving machinery.
High Protection Rating: Supports harsh industrial conditions.
Welding robots
Automotive manufacturing
Industrial automation
Machine tools
Production equipment
Sensor and actuator connections
Robotic assembly
| Specification | Details |
|---|---|
| Product Model | EVW028 |
| Product Type | Connection / jumper cable |
| Connector 1 | M12 straight male |
| Connector 2 | M12 straight female |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable Length | 5 m |
| Cable Material | PUR |
| Cable Colour | Grey |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 4 × 0.34 mm² |
| Operating Voltage | 250 V AC / 300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Moving Temperature | -25 to +90 °C |
| Housing Material | TPU |
| Sealing Material | Viton / FKM |
| Nut Material | Brass, anti-spatter coated |
| Drag Chain Suitability | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >2 million |
| Torsional Strain | ±180°/m |
| Special Features | Silicone-free, halogen-free, weld-spark resistant |
