IFM EVW027 is a 4 m M12 connection cable with straight male and straight female connectors, gold-plated contacts and weld-slag-resistant PUR construction for industrial welding applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

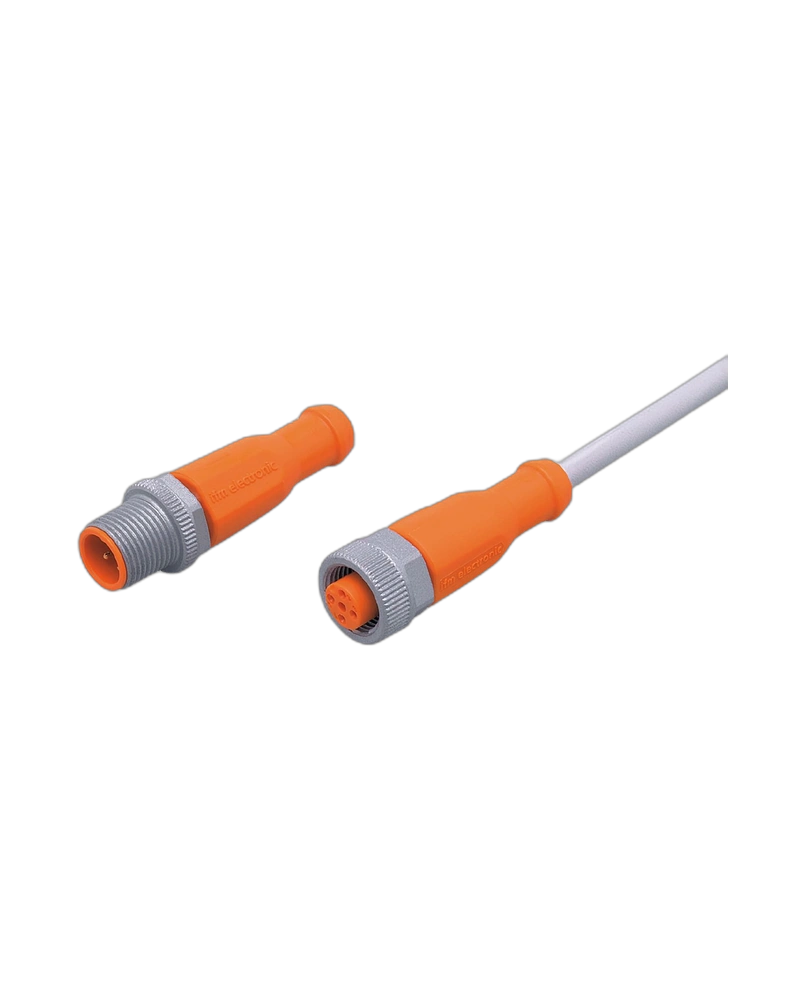

The IFM EVW027 is a 4 m M12 connection cable developed for reliable interconnection of industrial sensors, actuators and automation components. The straight M12 male-to-female configuration provides simple installation and direct device connectivity.
Its PUR cable is resistant to welding sparks and designed for dynamic applications where repeated movement occurs. The cable is silicone-free and halogen-free, helping provide reliable performance in demanding industrial environments.
Gold-plated contacts help maintain stable electrical connections, while the brass anti-spatter locking components provide additional resistance against welding residues.
The cable supports IP65, IP67, IP68 and IP69K protection and is suitable for drag-chain applications. It can withstand more than two million bending cycles under specified conditions.
4 m Cable Length: Provides extended connection distance.
Straight Male-to-Female Design: Enables straightforward installation.
Gold-Plated Contacts: Supports dependable electrical conductivity.
Weld-Spark Resistant: Suitable for welding production areas.
Flexible PUR Construction: Supports repeated movement.
High IP Protection: Provides reliable environmental protection.
Welding automation
Automotive production
Industrial robotics
Machine tools
Sensor connections
Assembly machinery
Production lines
| Specification | Details |
|---|---|
| Product Model | EVW027 |
| Product Type | Connection / jumper cable |
| Connector 1 | M12 straight male |
| Connector 2 | M12 straight female |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable Length | 4 m |
| Cable Material | PUR |
| Cable Colour | Grey |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 4 × 0.34 mm² |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Moving Temperature | -25 to +90 °C |
| Housing Material | TPU |
| Sealing Material | FKM |
| Nut Material | Brass, anti-spatter |
| Drag Chain Suitability | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >2 million |
| Torsional Strain | ±180°/m |
| Special Features | Silicone-free, halogen-free, welding-spark resistant |
