IFM EVW026 is a 3 m M12 connection cable with straight male and straight female connectors, weld-slag-resistant PUR cable and gold-plated contacts for reliable industrial welding applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

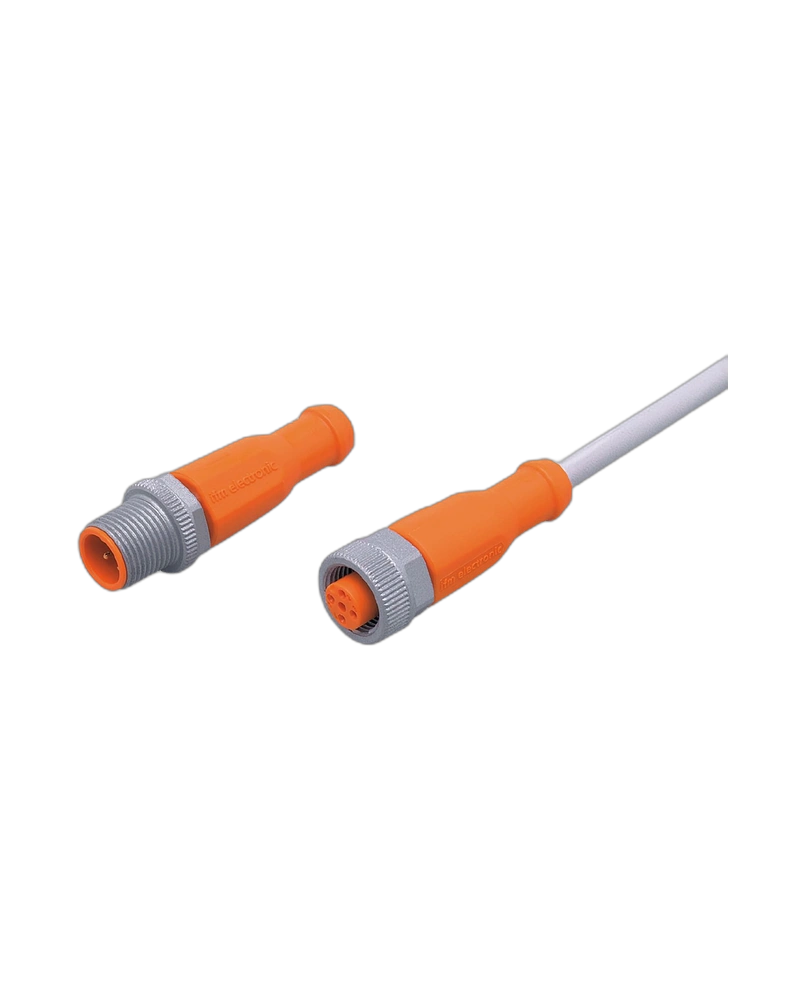

The IFM EVW026 is a robust M12 connection cable designed for reliable signal and power transmission in demanding industrial automation and welding environments. It features straight M12 male and female connectors with gold-plated contacts for dependable electrical connectivity.
The 3 m PUR cable is resistant to welding sparks and is suitable for drag-chain applications. Its silicone-free and halogen-free construction provides additional durability for industrial production environments.
The cable incorporates brass anti-spatter locking components and FKM sealing to protect the connection against contamination and harsh operating conditions. IP65, IP67, IP68 and IP69K protection ratings provide excellent resistance against dust, moisture and industrial cleaning conditions.
With a minimum bending radius of 10 times the cable diameter and more than two million bending cycles, EVW026 is suitable for dynamic machine and robotic applications.
3 m Cable Length: Provides flexible reach between automation components.
Straight M12 Connections: Enables simple device-to-device connection.
Gold-Plated Contacts: Supports reliable electrical signal transmission.
Weld-Slag Resistant PUR Cable: Suitable for welding environments.
Drag-Chain Suitable: Designed for repeated cable movement.
High Protection: IP65, IP67, IP68 and IP69K protection supports harsh environments.
Robotic welding systems
Automotive manufacturing
Industrial automation
Machine tools
Sensor and actuator connections
Production-line equipment
Robotic assembly systems
| Specification | Details |
|---|---|
| Product Model | EVW026 |
| Product Type | Connection / jumper cable |
| Connector 1 | M12 straight male |
| Connector 2 | M12 straight female |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable Length | 3 m |
| Cable Material | PUR |
| Cable Colour | Grey |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 4 × 0.34 mm² |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Moving Temperature | -25 to +90 °C |
| Housing Material | TPU |
| Sealing Material | FKM |
| Nut Material | Brass, anti-spatter |
| Drag Chain Suitability | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >2 million |
| Torsional Strain | ±180°/m |
| Special Features | Silicone-free, halogen-free, welding-spark resistant |
