IFM EVW025 is a 2 m M12 jumper cable with straight male and straight female connectors, weld-slag-resistant PUR cable and gold-plated contacts for reliable welding automation connections.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

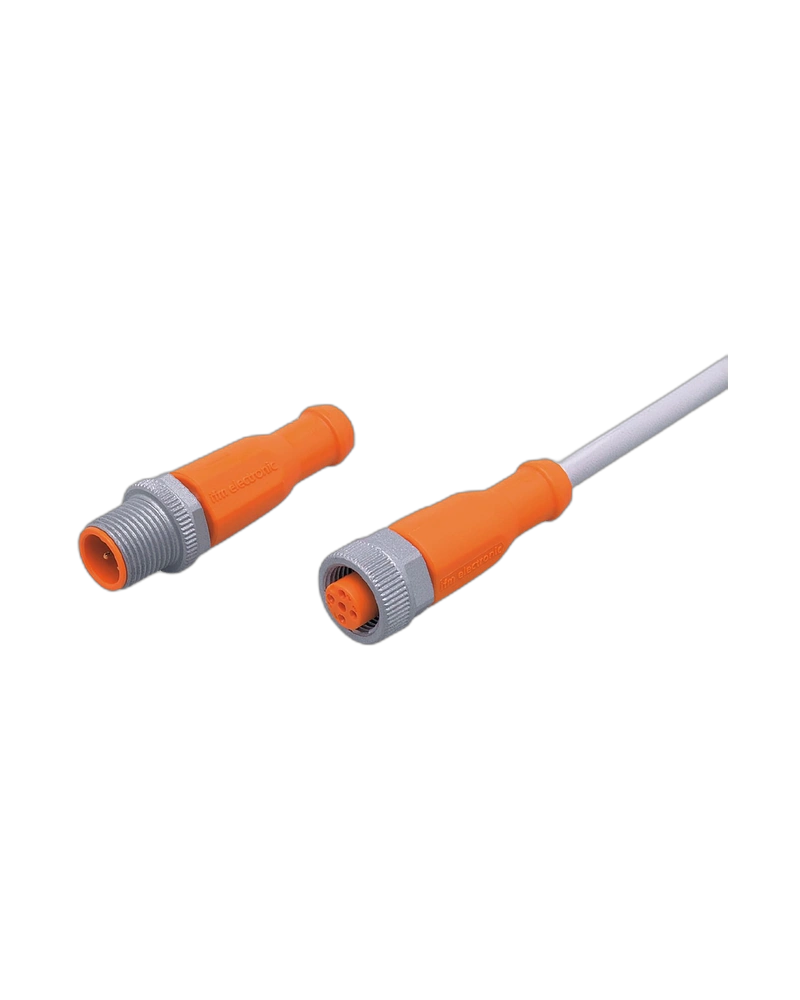

The IFM EVW025 VDOGH040SCS0002T04STGH040SCS is a robust M12 jumper cable designed for reliable device interconnection in welding and harsh industrial automation applications.
The 2 m PUR cable is resistant to welding sparks and suitable for drag-chain applications. Straight M12 male and female connectors provide straightforward connection between compatible industrial devices.
The connectors feature gold-plated contacts and brass anti-spatter locking components. FKM sealing and IP65, IP67, IP68 and IP69K protection help maintain reliable operation in demanding industrial environments.
The cable is designed for repeated mechanical movement, with more than two million bending cycles and a minimum bending radius of 10 times the cable diameter.
2 m Connection Length: Provides practical reach between connected automation devices.
Straight M12 Male-to-Female Design: Enables simple device interconnection.
Weld-Slag Resistant PUR Cable: Suitable for welding environments.
Gold-Plated Contacts: Supports stable electrical connectivity.
High IP Protection: Suitable for demanding industrial conditions.
Long Bending Life: More than two million bending cycles support dynamic applications.
Welding robots
Automotive manufacturing
Industrial automation
Machine tools
Production-line equipment
Sensor and actuator connections
Robotic assembly systems
| Specification | Details |
|---|---|
| Product Model | EVW025 |
| Part Number | VDOGH040SCS0002T04STGH040SCS |
| Product Type | Jumper / connection cable |
| Connector 1 | M12 straight male |
| Connector 2 | M12 straight female |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable Length | 2 m |
| Cable Material | PUR |
| Cable Colour | Grey |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 4 × 0.34 mm² |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Moving Temperature | -25 to +90 °C |
| Housing Material | TPU |
| Sealing Material | FKM |
| Nut Material | Brass, anti-spatter coated |
| Drag Chain Suitability | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >2 million |
| Torsional Strain | ±180°/m |
| Special Features | Silicone-free, halogen-free, gold-plated contacts, weld-slag resistant |
