IFM EVW024 is a 1 m M12 jumper cable with straight male and straight female connectors, gold-plated contacts and weld-slag-resistant PUR cable for reliable industrial welding connections.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

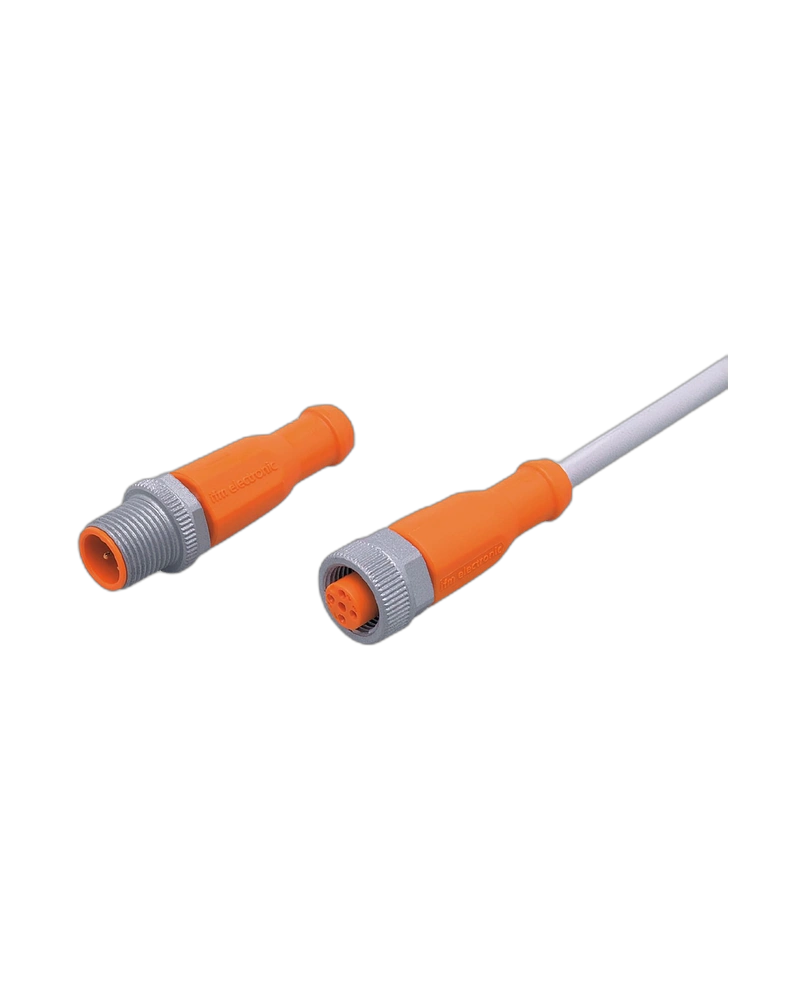

The IFM EVW024 VDOGH040SCS0001T04STGH040SCS is a 1 m M12 jumper cable designed for reliable interconnection between industrial automation devices in welding environments.
It features straight M12 male and female connectors connected by a 1 m PUR cable. The cable is halogen-free, silicone-free and resistant to welding sparks.
Gold-plated contacts provide reliable electrical performance, while brass anti-spatter locking components and FKM sealing improve durability. IP65, IP67, IP68 and IP69K protection supports use in demanding industrial environments.
EVW024 is suitable for drag-chain applications and supports more than two million bending cycles.
1 m Cable Length: Suitable for standard device-to-device connections.
Straight M12 Connections: Provides simple and direct installation.
Welding-Spark Resistant: Suitable for welding environments.
Gold-Plated Contacts: Helps maintain reliable electrical performance.
High IP Protection: Provides protection in harsh industrial conditions.
Drag-Chain Suitable: Supports repeated movement and bending.
Welding automation
Industrial robotics
Automotive manufacturing
Machine tools
Sensor interconnections
Production-line machinery
Automation systems
| Specification | Details |
|---|---|
| Product Model | EVW024 |
| Part Number | VDOGH040SCS0001T04STGH040SCS |
| Product Type | Jumper / connection cable |
| Connector 1 | M12 straight male |
| Connector 2 | M12 straight female |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable Length | 1 m |
| Cable Material | PUR |
| Cable Colour | Grey |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 4 × 0.34 mm² |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Moving Temperature | -25 to +90 °C |
| Housing Material | TPU |
| Sealing Material | FKM |
| Nut Material | Brass, anti-spatter coated |
| Drag Chain Suitability | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >2 million |
| Torsional Strain | ±180°/m |
| Weight | Approx. 66.3 g |
| Special Features | Silicone-free, halogen-free, weld-spark resistant |
