IFM EVW023 is a 0.5 m M12 jumper cable with straight male and straight female connectors, gold-plated contacts and weld-slag-resistant PUR construction for reliable welding applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

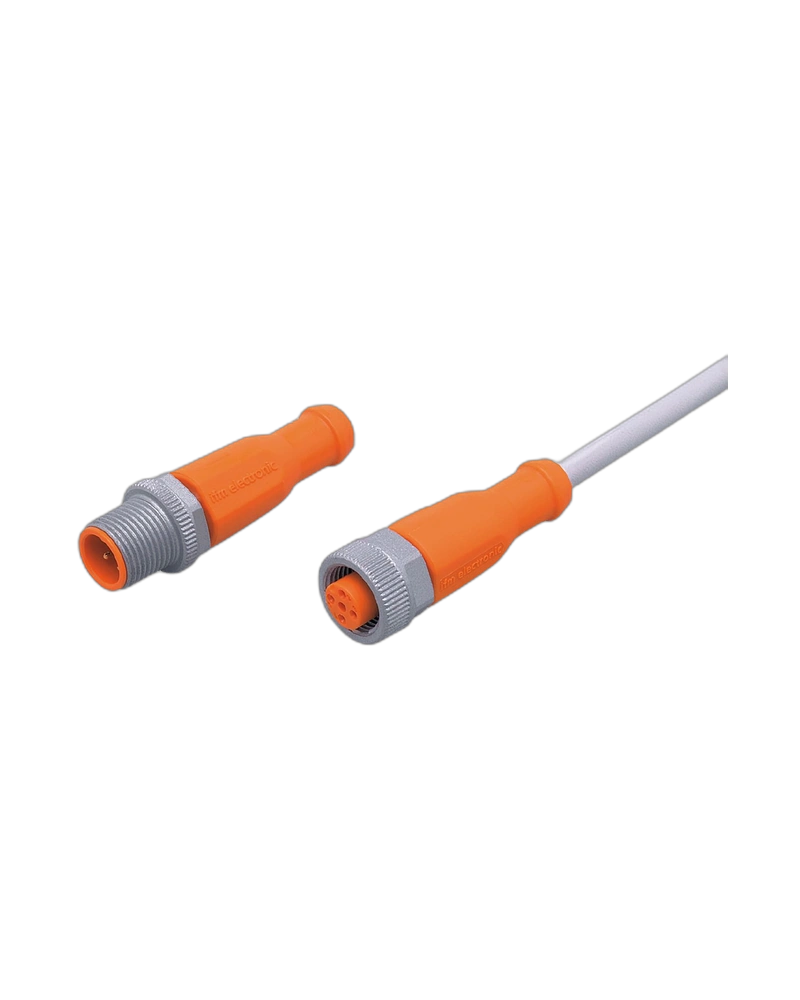

The IFM EVW023 VDOGH040SCS00,5T04STGH040SCS is a compact M12 connection cable designed to interconnect compatible industrial devices in welding applications.
It features straight M12 male and female connectors connected by a 0.5 m PUR cable. The cable is resistant to welding sparks and suitable for drag-chain applications.
Both connectors use four gold-plated contacts with brass anti-spatter locking components. FKM sealing on the female connector and high IP protection help maintain connection reliability in demanding industrial environments.
The cable supports more than two million bending cycles and a torsional strain of ±180°/m.
Straight M12 Male-to-Female Design: Provides direct device interconnection.
Compact 0.5 m Length: Ideal for closely positioned devices.
Gold-Plated Contacts: Provides reliable electrical connectivity.
Welding-Spark Resistant: Suitable for welding applications.
High Protection Rating: IP65 to IP69K protection.
Dynamic Application Support: Suitable for drag-chain installations.
Welding automation
Industrial machinery
Robotic systems
Automotive manufacturing
Machine tools
Sensor and actuator connections
Production equipment
| Specification | Details |
|---|---|
| Product Model | EVW023 |
| Part Number | VDOGH040SCS00,5T04STGH040SCS |
| Product Type | Jumper / connection cable |
| Connector 1 | M12 straight male |
| Connector 2 | M12 straight female |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable Length | 0.5 m |
| Cable Material | PUR |
| Cable Colour | Grey |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 4 × 0.34 mm² |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Moving Temperature | -25 to +90 °C |
| Housing Material | TPU |
| Sealing Material | FKM |
| Nut Material | Brass, anti-spatter coated |
| Drag Chain Suitability | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >2 million |
| Torsional Strain | ±180°/m |
| Label Holders | 2 × 30 mm |
| Special Features | Silicone-free, halogen-free, gold-plated contacts |
