IFM EVW022 is a 0.5 m M12 jumper cable with straight male and angled female connectors, weld-slag-resistant PUR construction and gold-plated contacts for compact welding applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

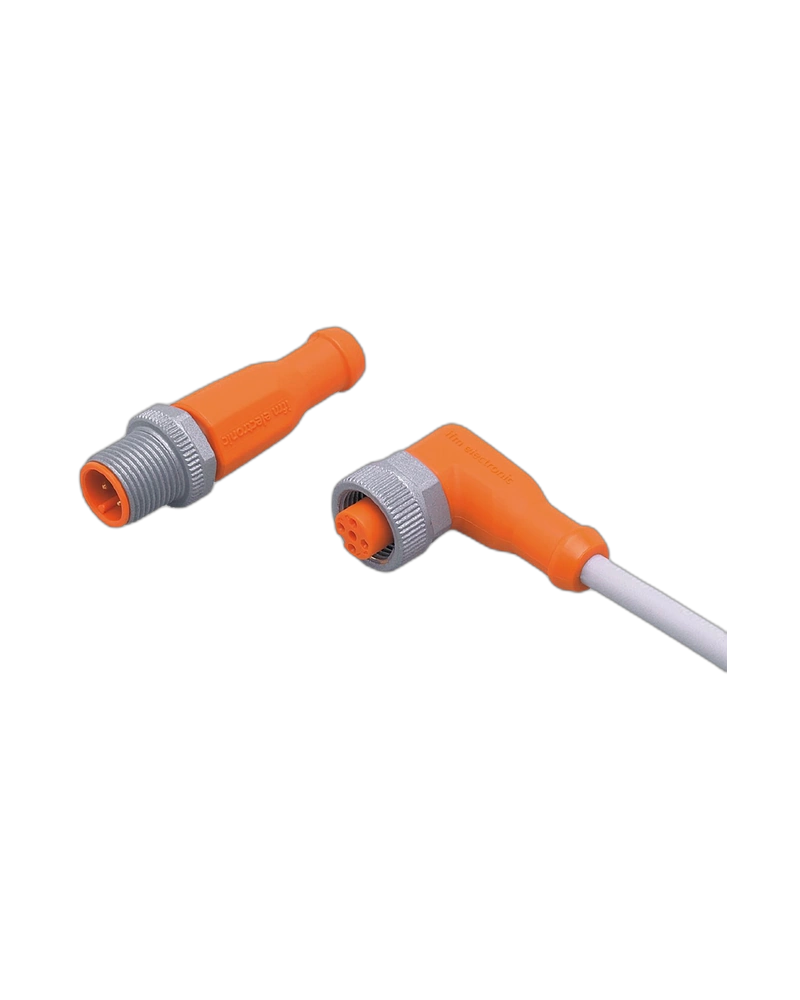

The IFM EVW022 VDOAH040SCS00,5T04STGH040SCS is a compact M12 jumper cable designed for welding and industrial automation applications. It combines a straight M12 male connector with an angled M12 female connector for flexible cable routing.
The 0.5 m PUR cable is resistant to welding sparks and suitable for drag-chain applications. Both connectors feature gold-plated contacts and brass anti-spatter locking components.
FKM sealing and IP65, IP67, IP68 and IP69K protection provide reliable environmental protection. The cable is suitable for dynamic installations and supports more than two million bending cycles.
Compact 0.5 m Cable: Ideal for short-distance device interconnections.
Straight-to-Angled Design: Provides flexible routing options.
Weld-Spark Resistant: Designed for welding environments.
Gold-Plated Contacts: Supports reliable electrical connection.
Drag-Chain Suitable: Suitable for moving machinery.
High IP Protection: Supports demanding industrial conditions.
Welding machinery
Robotic automation
Automotive production
Machine tools
Sensor interconnection
Production-line automation
Industrial robotics
| Specification | Details |
|---|---|
| Product Model | EVW022 |
| Part Number | VDOAH040SCS00,5T04STGH040SCS |
| Product Type | Jumper / connection cable |
| Connector 1 | M12 straight male |
| Connector 2 | M12 angled female |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable Length | 0.5 m |
| Cable Material | PUR |
| Cable Colour | Grey |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 4 × 0.34 mm² |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Moving Temperature | -25 to +90 °C |
| Housing Material | TPU |
| Sealing Material | FKM |
| Nut Material | Brass, anti-spatter coated |
| Drag Chain Suitability | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >2 million |
| Torsional Strain | ±180°/m |
| Special Features | Silicone-free, halogen-free, weld-spark resistant |
