IFM EVW021 is a 2 m five-pole M12 angled male connecting cable with PUR construction, gold-plated contacts and weld-slag-resistant protection for welding and industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

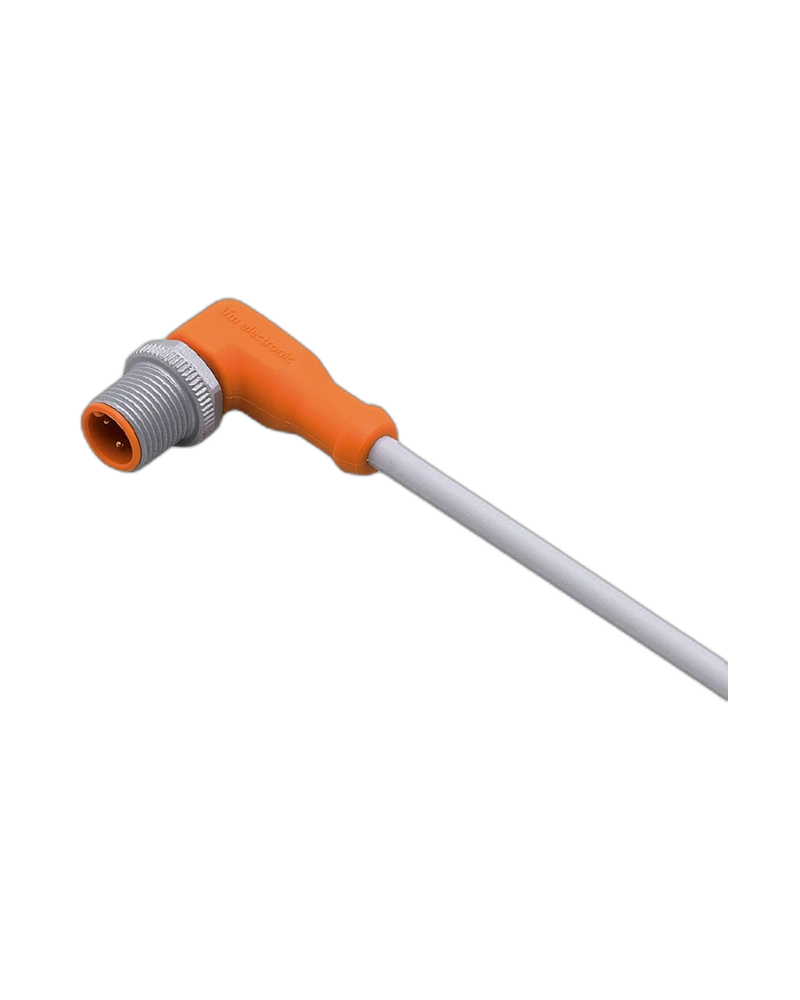

The IFM EVW021 ASTAH050SCS0002T05 is a five-pole M12 connecting cable with an angled male connector for applications where cable routing around machine structures is required.
Its PUR cable is resistant to welding sparks and suitable for drag-chain applications. The halogen-free and silicone-free construction supports reliable operation in demanding industrial environments.
The connector uses five gold-plated contacts with a brass anti-spatter locking system and FKM sealing. High IP65, IP67, IP68 and IP69K protection provides dependable environmental resistance.
The EVW021 is suitable for robotic welding cells, automotive manufacturing, machine tools and other automated production systems.
Angled Five-Pole M12 Connector: Helps simplify cable routing.
Reliable Electrical Contact: Gold-plated contacts provide stable connectivity.
Welding Application Suitable: PUR cable resists welding sparks.
High Environmental Protection: IP65 to IP69K ratings support harsh environments.
Drag-Chain Suitable: Designed for repeated movement.
Robust Construction: Anti-spatter locking and FKM sealing improve durability.
Welding automation
Automotive manufacturing
Industrial robots
Machine tools
Production lines
Sensor connections
Robotic assembly systems
| Specification | Details |
|---|---|
| Product Model | EVW021 |
| Part Number | ASTAH050SCS0002T05 |
| Product Type | Connecting cable with plug |
| Connector | M12 angled male |
| Coding | A-coded |
| Contacts | 5, gold-plated |
| Cable Length | 2 m |
| Cable Material | PUR |
| Cable Colour | Grey |
| Cable Diameter | 5.1 mm |
| Wire Cross Section | 5 × 0.34 mm² |
| Operating Voltage | <60 V AC/DC |
| Current Rating | 4 A |
| UL Current Rating | 3 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Moving Temperature | -25 to +90 °C |
| Housing Material | TPU |
| Sealing Material | FKM |
| Nut Material | Brass, anti-spatter coated |
| Drag Chain Suitability | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >2 million |
| Torsional Strain | ±180°/m |
| Special Features | Silicone-free, halogen-free, weld-slag resistant |
