IFM EVW020 is a 2 m five-pole M12 straight male connecting cable with PUR construction, gold-plated contacts and weld-slag-resistant design for reliable welding automation connections.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

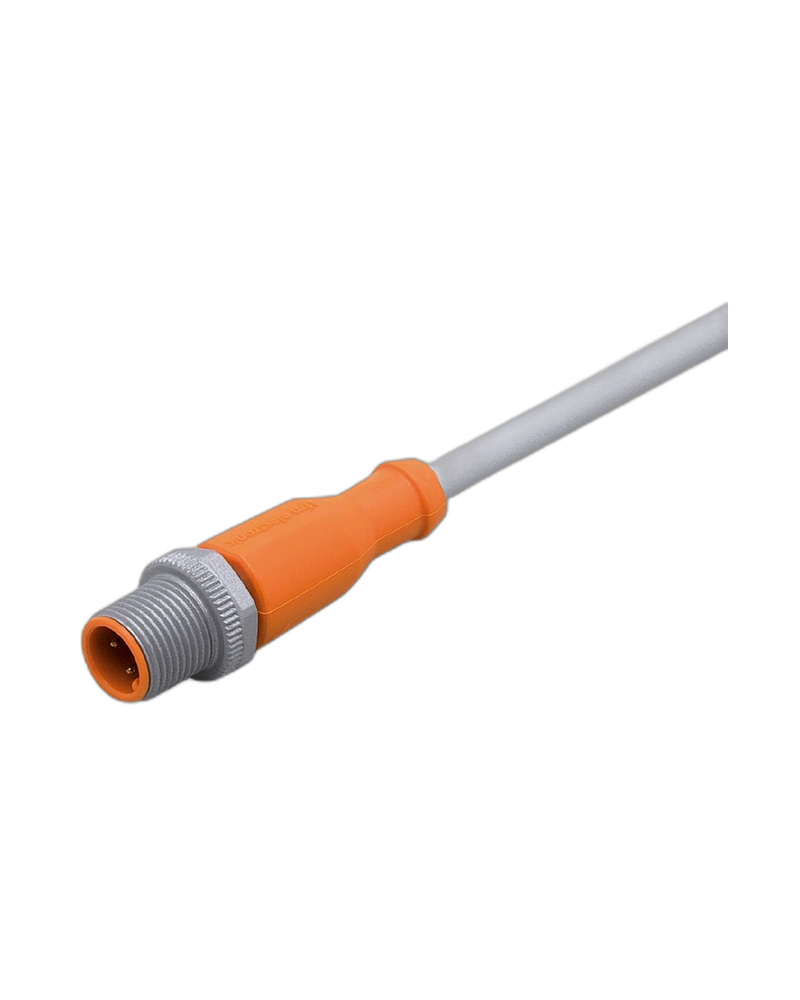

The IFM EVW020 ASTGH050SCS0002T05 is a five-pole M12 connecting cable designed for reliable sensor connections in welding and demanding industrial automation applications.
Its 2 m PUR cable is resistant to welding sparks and suitable for drag-chain applications. The five-conductor configuration provides connectivity for compatible five-pole M12 sensors and devices.
The straight M12 male connector uses five gold-plated contacts, a brass anti-spatter locking nut and FKM sealing. The cable provides IP65, IP67, IP68 and IP69K protection for demanding industrial environments.
The EVW020 supports more than two million bending cycles and is designed for repeated movement in robotic and automated machinery.
Five-Pole M12 Connection: Suitable for compatible five-pin industrial sensors.
Straight Male Connector: Provides simple and direct device connection.
2 m Cable Length: Suitable for compact installations.
Weld-Spark Resistant: Designed for welding applications.
High Protection Rating: IP65 to IP69K protection supports harsh environments.
Dynamic Movement Support: Suitable for drag-chain applications.
Welding robots
Automotive manufacturing
Industrial automation
Machine tools
Sensor connections
Robotic assembly
Production-line automation
| Specification | Details |
|---|---|
| Product Model | EVW020 |
| Part Number | ASTGH050SCS0002T05 |
| Product Type | Connecting cable with plug |
| Connector | M12 straight male |
| Coding | A-coded |
| Contacts | 5, gold-plated |
| Cable Length | 2 m |
| Cable Material | PUR |
| Cable Colour | Grey |
| Cable Diameter | 5.1 mm |
| Wire Cross Section | 5 × 0.34 mm² |
| Operating Voltage | <60 V AC/DC |
| Current Rating | 4 A |
| UL Current Rating | 3 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Moving Temperature | -25 to +90 °C |
| Housing Material | TPU |
| Sealing Material | FKM |
| Nut Material | Brass, anti-spatter |
| Drag Chain Suitability | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >2 million |
| Torsional Strain | ±180°/m |
| Weight | Approx. 93.6 g |
| Special Features | Silicone-free, halogen-free, gold-plated contacts |
