IFM EVW019 is a 2 m M12 angled male connecting cable with PUR cable, gold-plated contacts and weld-slag-resistant construction for reliable connections in welding and industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

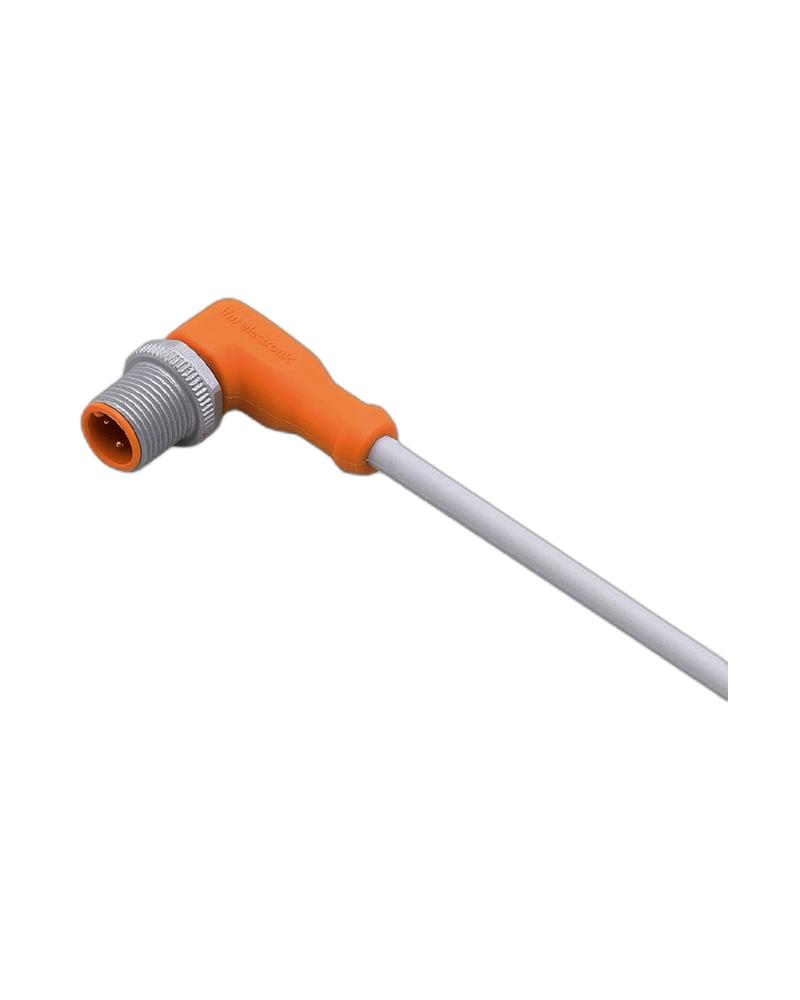

The IFM EVW019 ASTAH040SCS0002T04 is an angled M12 male connecting cable designed for welding applications where flexible cable routing is required.
The 2 m PUR cable is resistant to welding sparks and supports drag-chain applications. The angled connector helps route the cable efficiently around machine structures and restricted installation areas.
The cable uses four gold-plated contacts and a brass weld-coated locking nut. FKM sealing and IP65, IP67, IP68 and IP69K protection provide dependable performance in harsh industrial environments.
EVW019 supports more than two million bending cycles, a minimum bending radius of 10 times the cable diameter and travel speeds up to 3.3 m/s under specified conditions.
Angled M12 Male Connector: Supports convenient cable routing.
2 m Cable: Suitable for compact machine installations.
Weld-Slag Resistant: Designed for welding environments.
Gold-Plated Contacts: Provides reliable electrical performance.
High IP Protection: Protects against demanding environmental conditions.
Long Dynamic Life: Supports more than two million bending cycles.
Robotic welding systems
Automotive production
Industrial automation
Welding machines
Machine tools
Sensor connections
Production equipment
| Specification | Details |
|---|---|
| Product Model | EVW019 |
| Part Number | ASTAH040SCS0002T04 |
| Product Type | Connecting cable with plug |
| Connector | M12 angled male |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable Length | 2 m |
| Cable Material | PUR |
| Cable Colour | Grey |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 4 × 0.34 mm² |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Moving Temperature | -25 to +90 °C |
| Housing Material | TPU |
| Sealing Material | FKM |
| Nut Material | Brass, weld-coated |
| Drag Chain Suitability | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >2 million |
| Torsional Strain | ±180°/m |
| Weight | Approx. 84.8 g |
| Special Features | Silicone-free, halogen-free, weld-spark resistant |
