IFM EVW018 is a 2 m M12 straight male connecting cable with PUR construction, gold-plated contacts and weld-slag-resistant protection for reliable sensor connections in welding applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

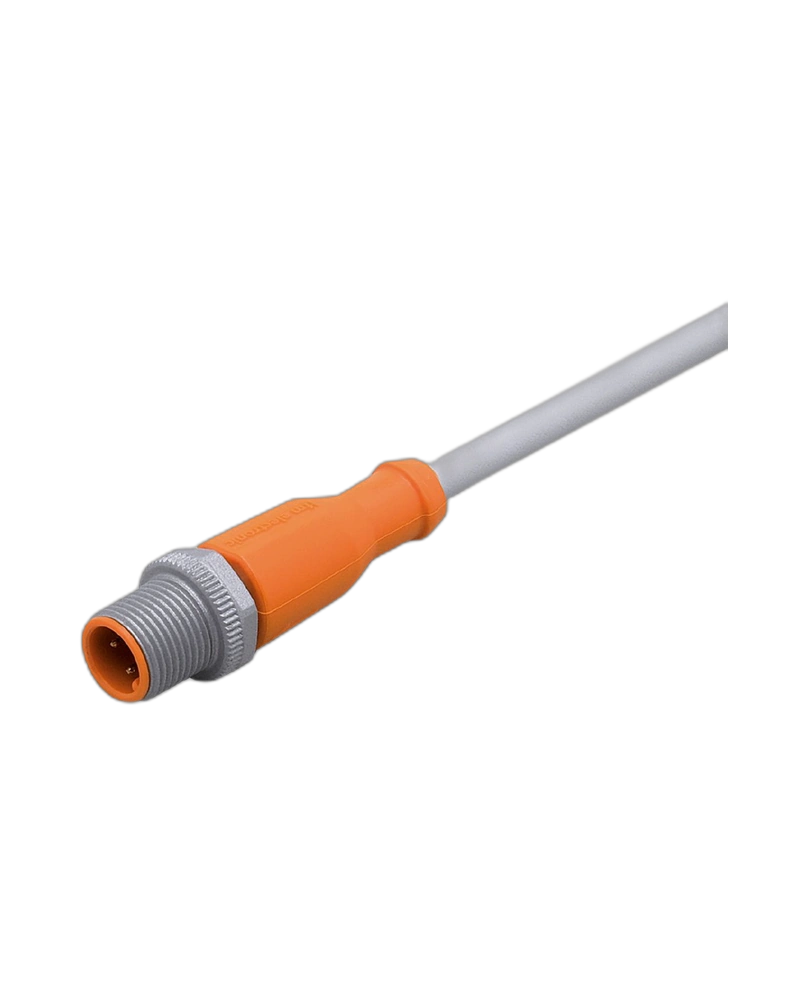

The IFM EVW018 ASTGH040SCS0002T04 is an M12 connecting cable with a straight male connector designed for welding applications and harsh industrial environments.
The 2 m PUR cable is resistant to welding sparks and suitable for drag-chain installations. Its halogen-free and silicone-free construction provides durability for demanding manufacturing environments.
The connector features four gold-plated contacts, a brass anti-spatter locking nut and FKM sealing. IP65, IP67, IP68 and IP69K protection helps protect the cable connection against water, dust and other environmental influences.
With more than two million bending cycles and a minimum bending radius of 10 times the cable diameter, EVW018 is suitable for dynamic industrial applications.
Straight M12 Male Connector: Provides simple connection to compatible sensor interfaces.
2 m Cable Length: Suitable for compact automation installations.
Welding-Spark Resistant: PUR cable supports welding applications.
Gold-Plated Contacts: Provides reliable electrical contact.
High IP Protection: Suitable for demanding industrial environments.
Drag-Chain Suitable: Supports repeated mechanical movement.
Welding automation
Industrial sensors
Automotive manufacturing
Robotic systems
Machine tools
Assembly equipment
Production-line automation
| Specification | Details |
|---|---|
| Product Model | EVW018 |
| Part Number | ASTGH040SCS0002T04 |
| Product Type | Connecting cable with plug |
| Connector | M12 straight male |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable Length | 2 m |
| Cable Material | PUR |
| Cable Colour | Grey |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 4 × 0.34 mm² |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Moving Temperature | -25 to +90 °C |
| Housing Material | TPU |
| Sealing Material | FKM |
| Nut Material | Brass, anti-spatter coated |
| Drag Chain Suitability | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >2 million |
| Torsional Strain | ±180°/m |
| Weight | Approx. 82.8 g |
| Special Features | Silicone-free, halogen-free, weld-spark resistant |
