IFM EVW017 is a 1.5 m M12 connection cable with straight male and angled female connectors, weld-slag-resistant PUR cable and gold-plated contacts for compact welding automation installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

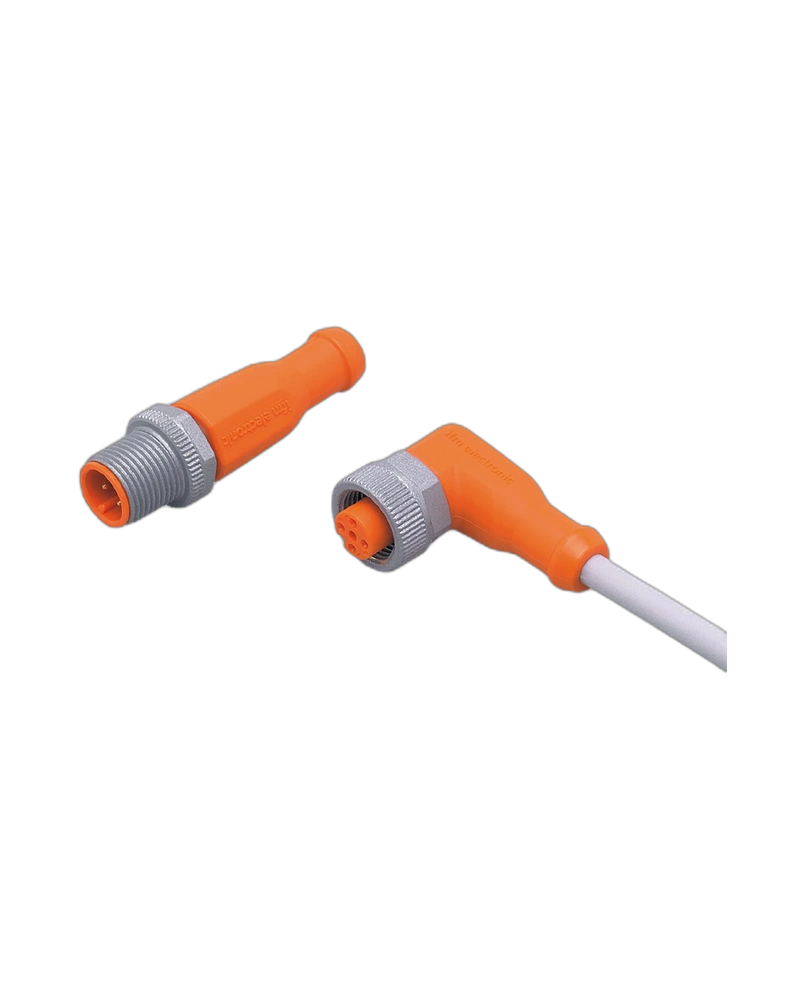

The IFM EVW017 VDOAH040SCS01,5T04STGH040SCS is a compact M12 connection cable designed for welding applications and harsh industrial environments. It features a straight M12 male connector and an angled M12 female connector for practical routing around machinery.
Its 1.5 m PUR cable is resistant to welding sparks and suitable for drag-chain applications. The cable is halogen-free and silicone-free, making it appropriate for demanding production environments.
The connectors feature gold-plated contacts and brass anti-spatter locking components. FKM sealing provides dependable protection, while IP65, IP67, IP68 and IP69K ratings help protect against moisture, dust and intensive industrial conditions.
The cable supports more than two million bending cycles and is suitable for moving machinery and robotic automation.
Compact 1.5 m Length: Ideal for short-distance machine connections.
Angled Female Connector: Helps simplify cable routing in confined areas.
Reliable M12 Connectivity: Provides secure connection between compatible devices.
Welding Resistant: Designed to withstand welding-spark exposure.
High Flexibility: Suitable for drag-chain applications.
Long Bending Life: Supports more than two million bending cycles.
Welding robots
Automotive assembly
Industrial automation
Machine tools
Welding equipment
Sensor connections
Robotic production systems
| Specification | Details |
|---|---|
| Product Model | EVW017 |
| Part Number | VDOAH040SCS01,5T04STGH040SCS |
| Product Type | Jumper / connection cable |
| Connector 1 | M12 straight male |
| Connector 2 | M12 angled female |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable Length | 1.5 m |
| Cable Material | PUR |
| Cable Colour | Grey |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 4 × 0.34 mm² |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Moving Temperature | -25 to +90 °C |
| Housing Material | TPU |
| Sealing Material | FKM |
| Nut Material | Brass, anti-spatter coated |
| Drag Chain Suitability | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >2 million |
| Torsional Strain | ±180°/m |
| Tightening Torque | 0.6–1.5 Nm |
| Special Features | Silicone-free, halogen-free, gold-plated contacts |
