IFM EVW016 is a 6 m M12 connection cable with straight male and angled female connectors, weld-slag-resistant PUR cable and gold-plated contacts for reliable welding automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

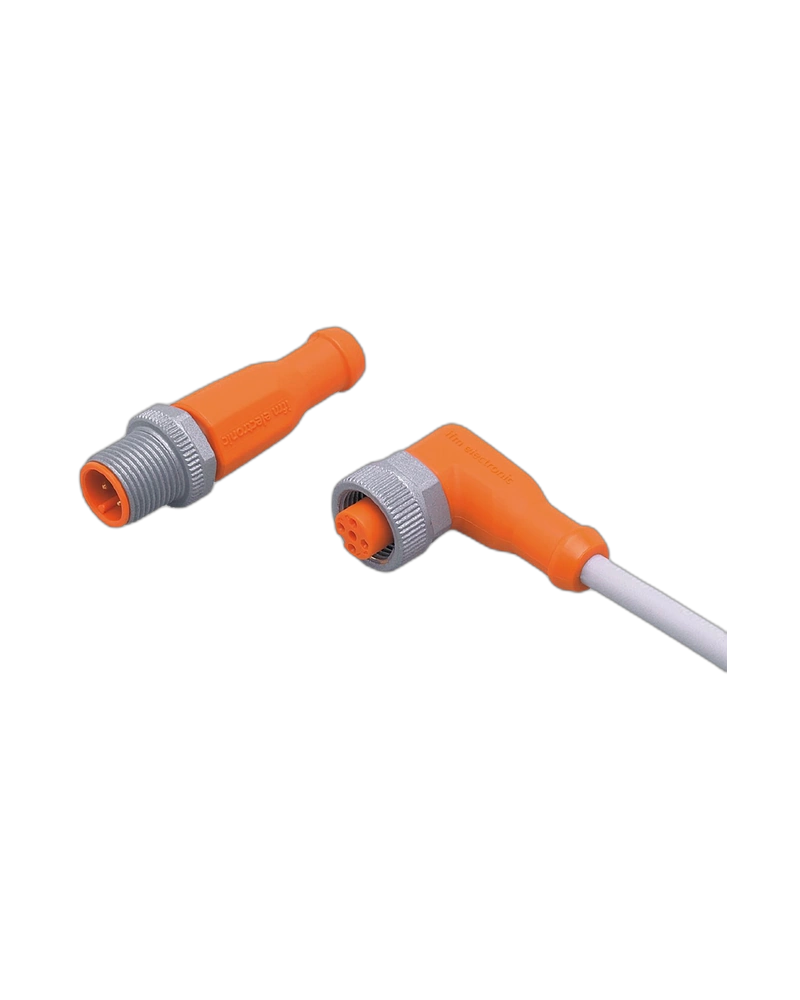

The IFM EVW016 VDOAH040SCS0006T04STGH040SCS is a robust M12 jumper cable designed for reliable connections in welding and demanding industrial automation environments. It combines a straight M12 male connector with an angled M12 female connector, allowing flexible cable routing around machinery.
The 6 m PUR cable is resistant to welding sparks and is suitable for drag-chain applications. Its halogen-free and silicone-free construction makes it suitable for demanding manufacturing environments.
Gold-plated contacts provide reliable electrical connectivity, while the brass anti-spatter locking components help protect the connection against welding residues. FKM sealing and IP65, IP67, IP68 and IP69K protection provide dependable environmental resistance.
The EVW016 can withstand more than two million bending cycles and supports travel speeds up to 3.3 m/s under the specified conditions. It is suitable for robotic welding cells, automotive production systems and moving industrial machinery.
6 m Extended Cable Length: Provides flexible connection distance for larger machines.
Straight-to-Angled M12 Design: Supports efficient cable routing around machine structures.
Weld-Slag Resistant: PUR cable is designed for welding environments.
Gold-Plated Contacts: Provides reliable electrical connectivity.
Drag-Chain Suitable: Supports repeated cable movement.
High Environmental Protection: IP65, IP67, IP68 and IP69K ratings support harsh industrial conditions.
Robotic welding systems
Automotive manufacturing
Industrial automation
Welding cells
Machine tools
Sensor and actuator interconnection
Production-line automation
| Specification | Details |
|---|---|
| Product Model | EVW016 |
| Part Number | VDOAH040SCS0006T04STGH040SCS |
| Product Type | Jumper / connection cable |
| Connector 1 | M12 straight male |
| Connector 2 | M12 angled female |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable Length | 6 m |
| Cable Material | PUR |
| Cable Colour | Grey |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 4 × 0.34 mm² |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Moving Temperature | -25 to +90 °C |
| Housing Material | TPU |
| Sealing Material | FKM / Viton |
| Nut Material | Brass, anti-spatter coated |
| Drag Chain Suitability | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >2 million |
| Torsional Strain | ±180°/m |
| Tightening Torque | 0.6–1.5 Nm |
| Special Features | Silicone-free, halogen-free, welding-spark resistant |
