IFM EVW015 is a 10 m angled five-pole M12 connecting cable with PUR construction, gold-plated contacts and weld-slag-resistant design for long-distance welding and industrial automation connections.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

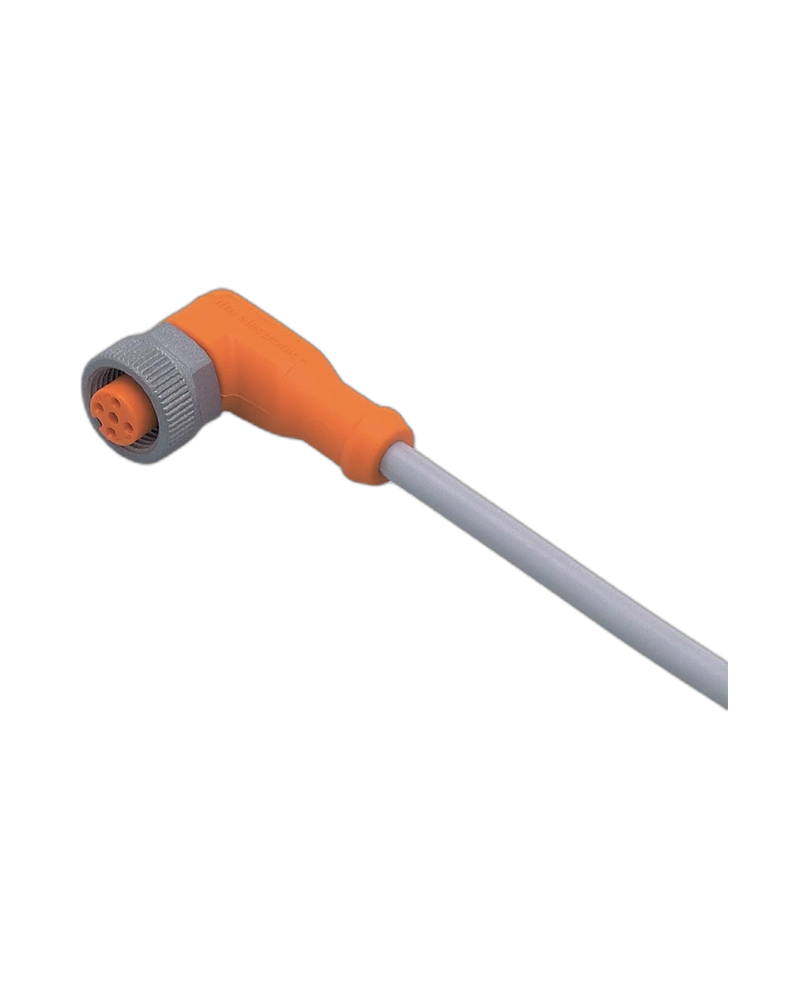

The IFM EVW015 ADOAH050SCS0010T05 is a five-pole M12 connecting cable designed for demanding welding applications and industrial automation systems. Its 10 m cable length provides extended connection reach for larger machines, robotic cells and production lines.
The angled female connector supports efficient cable routing around machine structures. The PUR cable is halogen-free, silicone-free and resistant to welding sparks, making it suitable for harsh production environments.
Gold-plated contacts support reliable electrical connectivity, while the brass weld-coated nut and FKM sealing provide additional protection. The cable is also suitable for drag-chain applications and supports more than two million bending cycles.
Extended 10 m Reach: Ideal for large machines and long-distance sensor connections.
Angled M12 Connector: Helps optimize cable routing in restricted spaces.
Five-Pole Connection: Suitable for compatible five-pin M12 sensors.
Weld-Spark Resistant: Designed for welding and harsh industrial environments.
High IP Protection: IP65, IP67, IP68 and IP69K protection supports demanding conditions.
Excellent Dynamic Performance: Suitable for drag-chain applications with over two million bending cycles.
Robotic welding cells
Automotive manufacturing
Industrial automation
Welding robots
Machine tools
Production lines
Sensor and actuator connections
| Specification | Details |
|---|---|
| Product Model | EVW015 |
| Part Number | ADOAH050SCS0010T05 |
| Product Type | Connecting cable with socket |
| Connector | M12 angled female |
| Coding | A-coded |
| Contacts | 5, gold-plated |
| Cable Length | 10 m |
| Cable Material | PUR |
| Cable Colour | Grey |
| Cable Diameter | 5.1 mm |
| Wire Cross Section | 5 × 0.34 mm² |
| Operating Voltage | 60 V AC / 60 V DC |
| Current Rating | 4 A |
| cULus Current | 3 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Housing Material | TPU, orange |
| Sealing Material | FKM/Viton |
| Nut Material | Brass, weld-coated |
| Drag Chain Suitability | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >2 million |
| Torsional Strain | ±180°/m |
| Weight | Approx. 396 g |
| Special Features | Silicone-free, halogen-free, gold-plated contacts, welding-spark resistant |
