IFM EVW014 is a 5 m angled five-pole M12 connecting cable with PUR construction, gold-plated contacts and weld-slag-resistant protection for reliable welding automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

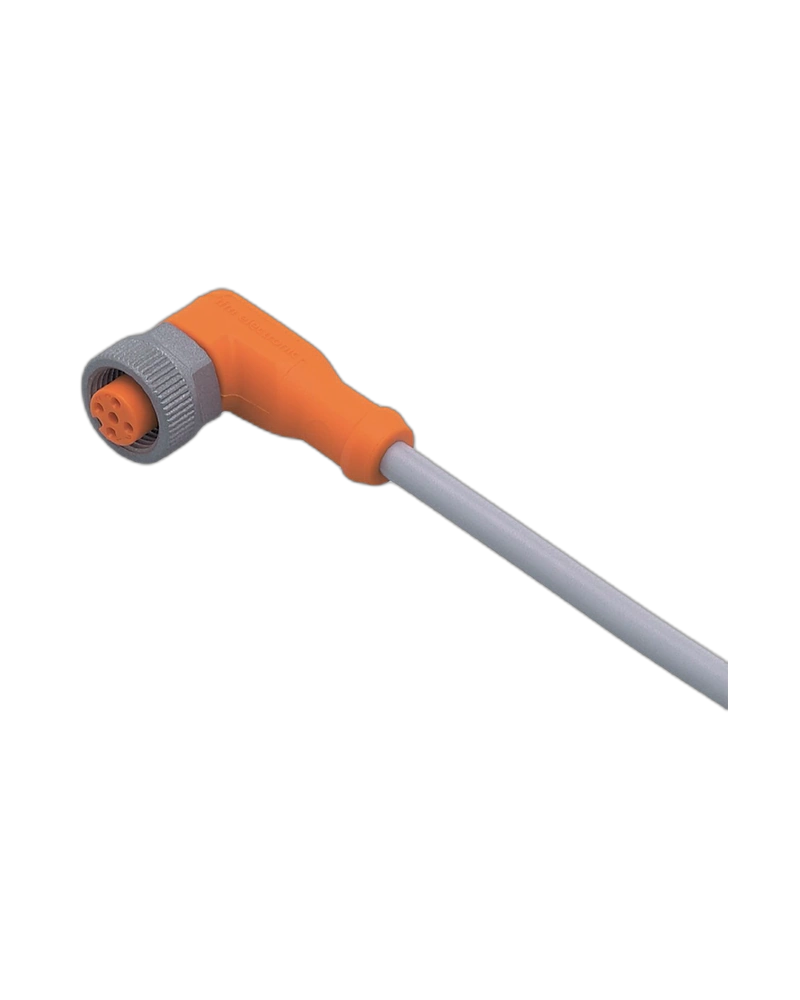

The IFM EVW014 ADOAH050SCS0005T05 is a five-pole M12 connecting cable developed for welding applications and demanding industrial environments. Its angled female connector allows efficient cable routing around machinery and in space-constrained installations.
The 5 m PUR cable is halogen-free and resistant to welding sparks. Gold-plated contacts provide dependable electrical connectivity, while the brass weld-coated nut helps resist welding spatter.
The cable is suitable for drag-chain applications and supports more than two million bending cycles. Its FKM sealing and high IP protection provide dependable environmental protection.
5 m Cable Length: Offers flexible installation distance.
Angled Connector: Simplifies cable routing around machinery.
Five-Pole Connection: Suitable for compatible M12 sensor systems.
Weld-Slag Resistant: Designed for welding applications.
High Protection: IP65, IP67, IP68 and IP69K protection.
High Bending Life: Supports more than two million bending cycles.
Robotic welding systems
Automotive manufacturing
Industrial robots
Welding machinery
Machine tools
Production-line automation
Sensor and actuator systems
| Specification | Details |
|---|---|
| Product Model | EVW014 |
| Part Number | ADOAH050SCS0005T05 |
| Product Type | Connecting cable with socket |
| Connector | M12 angled female |
| Coding | A-coded |
| Contacts | 5, gold-plated |
| Cable Length | 5 m |
| Cable Material | PUR |
| Cable Colour | Grey |
| Cable Diameter | 5.1 mm |
| Wire Cross Section | 5 × 0.34 mm² |
| Operating Voltage | 30 V AC / 36 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection Rating | IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Housing Material | TPU, orange |
| Sealing Material | FKM |
| Nut Material | Brass, weld-coated |
| Drag Chain Suitability | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >2 million |
| Torsional Strain | ±180°/m |
| Weight | Approx. 205 g |
| Special Features | Silicone-free, halogen-free, gold-plated contacts |
