IFM EVW013 is a 2 m angled five-pole M12 connecting cable with PUR construction, gold-plated contacts and weld-slag-resistant design for compact welding and industrial automation installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

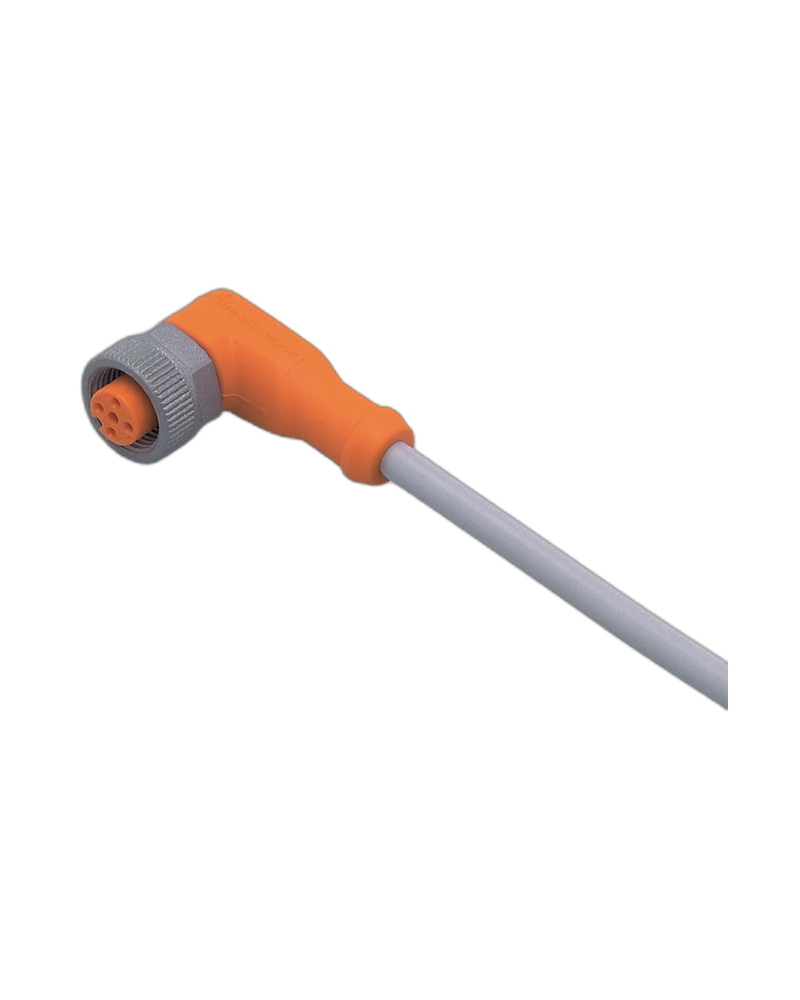

The IFM EVW013 ADOAH050SCS0002T05 is a five-pole M12 connecting cable designed for welding applications where compact cable routing and reliable connectivity are required.
The angled connector helps route the 2 m PUR cable around machine structures and confined spaces. The cable is halogen-free, silicone-free and resistant to welding sparks.
The connector uses gold-plated contacts and a brass anti-spatter coated nut. FKM sealing and high IP protection provide reliable performance in harsh industrial environments.
Angled M12 Connector: Helps simplify cable routing in compact machine installations.
5-Pole Connectivity: Suitable for compatible five-pin sensors.
Compact 2 m Length: Ideal for short-distance connections.
Welding Resistant: Designed for welding environments.
High Protection Rating: IP65 to IP69K protection.
Dynamic Application Support: Suitable for drag-chain installations.
Welding robots
Automotive assembly
Industrial automation
Welding equipment
Machine tools
Sensor connections
Robotic production systems
| Specification | Details |
|---|---|
| Product Model | EVW013 |
| Part Number | ADOAH050SCS0002T05 |
| Product Type | Connecting cable with socket |
| Connector | M12 angled female |
| Coding | A-coded |
| Contacts | 5, gold-plated |
| Cable Length | 2 m |
| Cable Material | PUR |
| Cable Colour | Grey |
| Cable Diameter | 5.1 mm |
| Wire Cross Section | 5 × 0.34 mm² |
| Operating Voltage | <60 V AC/DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Housing Material | TPU, orange |
| Sealing Material | FKM |
| Nut Material | Brass, weld-coated |
| Drag Chain Suitability | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Bending Cycles | >2 million |
| Torsional Strain | ±180°/m |
| Weight | Approx. 95.2 g |
| Special Features | Silicone-free, halogen-free, gold-plated contacts |
