IFM EVW012 is a 10 m straight M12 connecting cable with five gold-plated contacts, PUR construction and weld-slag resistance for reliable long-distance sensor connections in welding applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

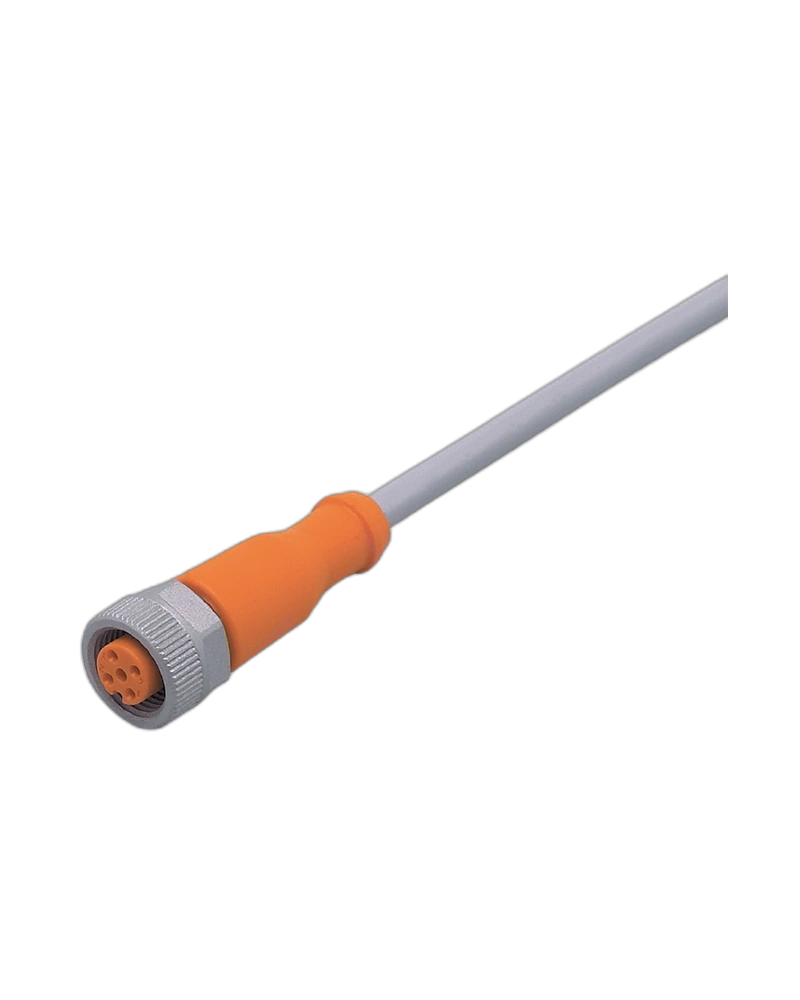

The IFM EVW012 ADOGH050SCS0010T05 is a five-pole M12 connecting cable designed for long-distance sensor connections in welding and industrial automation systems.
Its 10 m PUR cable provides extended reach while maintaining flexibility for dynamic applications. The cable is halogen-free, silicone-free and resistant to welding sparks.
The straight M12 female connector features five gold-plated contacts and a brass anti-spatter coated locking nut. The FKM sealing system and IP65, IP67, IP68 and IP69K protection provide reliable operation in demanding environments.
10 m Long Cable: Suitable for large machines and extended sensor connections.
Five-Pole M12 Interface: Supports compatible five-pin sensor applications.
Straight Connector: Provides simple and direct installation.
Weld-Spark Resistant: Suitable for welding environments.
High IP Protection: Designed for demanding industrial conditions.
Long Dynamic Life: More than two million bending cycles support repeated movement.
Welding robots
Automotive manufacturing
Industrial automation
Production lines
Machine tools
Robotic systems
Sensor and actuator connections
| Specification | Details |
|---|---|
| Product Model | EVW012 |
| Part Number | ADOGH050SCS0010T05 |
| Product Type | Connecting cable with socket |
| Connector | M12 straight female |
| Coding | A-coded |
| Contacts | 5, gold-plated |
| Cable Length | 10 m |
| Cable Material | PUR |
| Cable Colour | Grey |
| Cable Diameter | 5.1 mm |
| Wire Cross Section | 5 × 0.34 mm² |
| Operating Voltage | 60 V AC / 60 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Housing Material | TPU, orange |
| Sealing Material | Viton/FKM |
| Nut Material | Brass, anti-spatter coated |
| Drag Chain Suitability | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >2 million |
| Torsional Strain | ±180°/m |
| Special Features | Silicone-free, halogen-free, welding-spark resistant |
