IFM EVW011 is a 5 m straight M12 connecting cable with five gold-plated contacts, flexible PUR cable and weld-slag-resistant construction for reliable welding automation connections.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

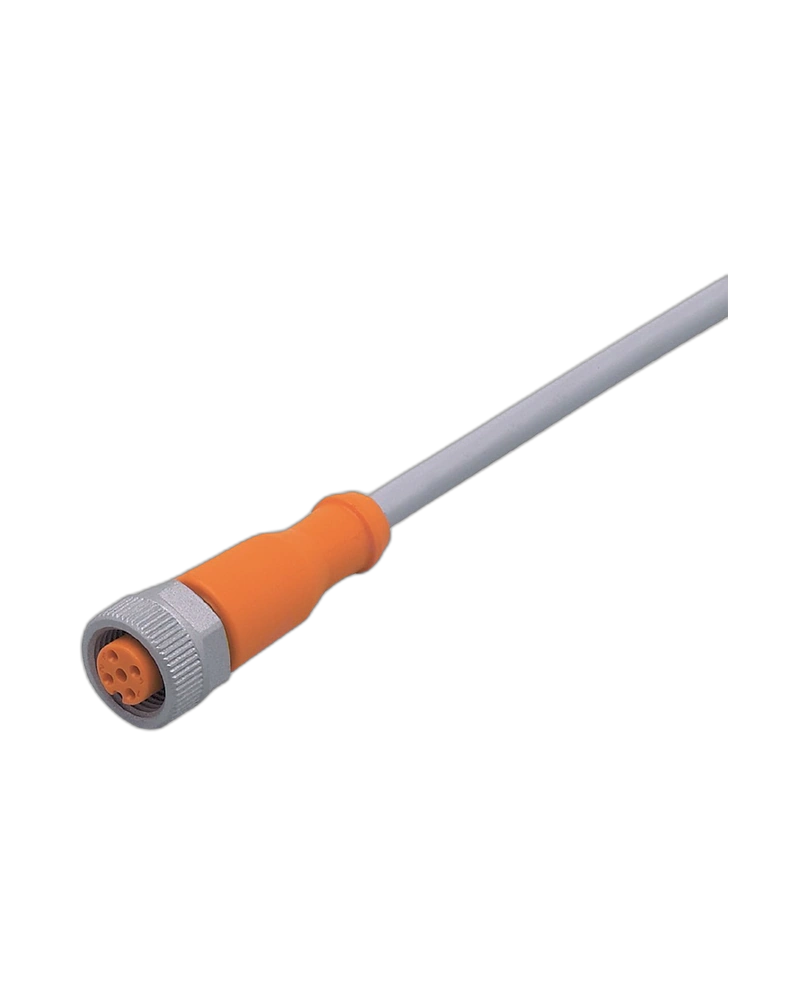

The IFM EVW011 ADOGH050SCS0005T05 is a five-pole M12 connecting cable designed for reliable sensor connectivity in welding and harsh industrial environments.
Its 5 m PUR cable provides extended installation flexibility while maintaining suitability for dynamic applications. The cable is halogen-free, silicone-free and resistant to welding sparks.
The straight M12 female connector features gold-plated contacts and a brass nut with special weld-slag-resistant coating. FKM sealing and high IP protection provide additional environmental resistance.
The EVW011 supports drag-chain applications, more than two million bending cycles and torsional strain of ±180°/m.
5 m Cable Length: Provides flexible connection distance.
Five-Pole M12 Connector: Suitable for compatible five-pin sensor systems.
Welding Application Ready: Resistant to welding sparks and spatter.
High Environmental Protection: IP65, IP67, IP68 and IP69K protection.
Dynamic Installation Support: Suitable for drag chains.
Reliable Electrical Connection: Gold-plated contacts improve contact reliability.
Robotic welding
Automotive production
Industrial automation
Welding machinery
Sensor systems
Machine tools
Assembly lines
| Specification | Details |
|---|---|
| Product Model | EVW011 |
| Part Number | ADOGH050SCS0005T05 |
| Product Type | Connecting cable with socket |
| Connector | M12 straight female |
| Coding | A-coded |
| Contacts | 5, gold-plated |
| Cable Length | 5 m |
| Cable Material | PUR |
| Cable Colour | Grey |
| Cable Diameter | 5.1 mm |
| Wire Cross Section | 5 × 0.34 mm² |
| Operating Voltage | <60 V AC/DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Housing Material | TPU, orange |
| Sealing Material | FKM |
| Nut Material | Brass, anti-spatter coated |
| Drag Chain Suitability | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Bending Cycles | >2 million |
| Torsional Strain | ±180°/m |
| Special Features | Silicone-free, halogen-free, gold-plated contacts |
