IFM EVW010 is a 2 m straight M12 connecting cable with five gold-plated contacts, PUR construction and weld-slag-resistant design for reliable connections in welding and industrial automation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

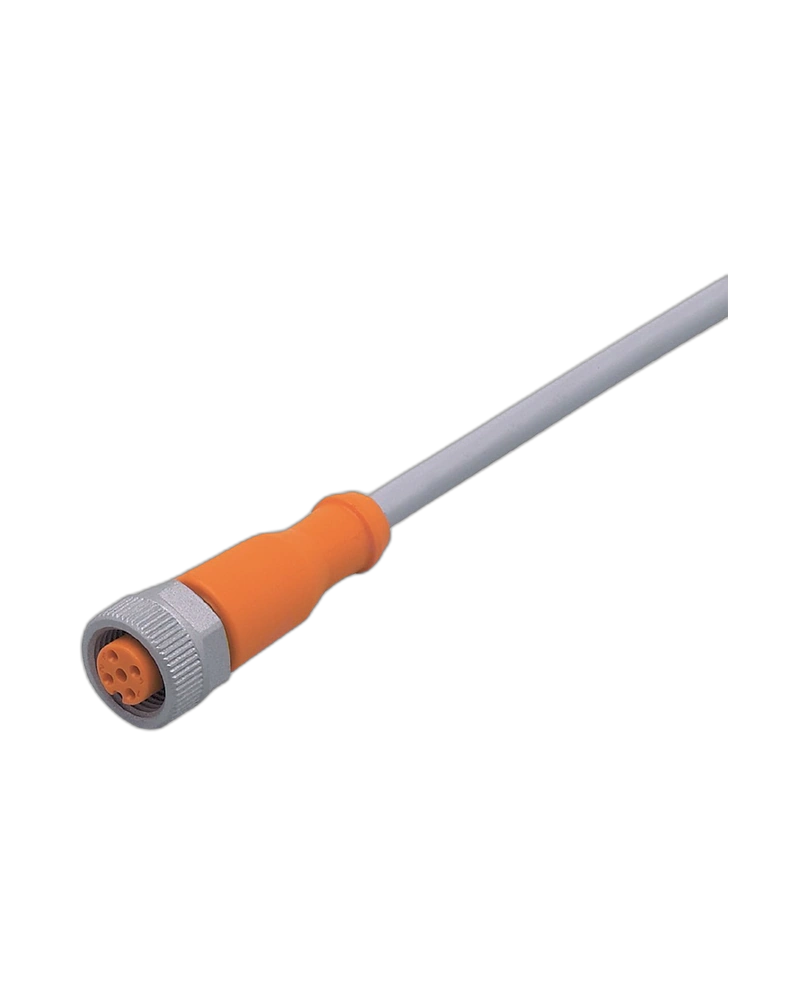

The IFM EVW010 ADOGH050SCS0002T05 is a 5-pole M12 connecting cable designed for welding applications and harsh industrial environments. Its straight female connector provides a conventional connection arrangement for compatible M12 sensors.
The 2 m PUR cable is halogen-free, silicone-free and resistant to welding sparks. Five 0.34 mm² conductors provide the required connection arrangement for compatible five-pole M12 devices.
Gold-plated contacts support reliable electrical conductivity, while the anti-spatter coated brass nut and FKM sealing improve durability in welding environments.
5-Pole M12 Connection: Suitable for compatible five-pin M12 sensors.
Compact 2 m Cable: Ideal for short-distance installations.
Straight Connector: Provides straightforward cable routing.
Welding Resistant: PUR cable withstands demanding welding environments.
Reliable Contact: Gold-plated contacts support consistent electrical performance.
High Protection: IP65 to IP69K protection supports harsh industrial environments.
Welding automation
Automotive manufacturing
Industrial sensors
Robotic systems
Machine tools
Assembly equipment
Production-line automation
| Specification | Details |
|---|---|
| Product Model | EVW010 |
| Part Number | ADOGH050SCS0002T05 |
| Product Type | Connecting cable with socket |
| Connector | M12 straight female |
| Coding | A-coded |
| Contacts | 5, gold-plated |
| Cable Length | 2 m |
| Cable Material | PUR |
| Cable Colour | Grey |
| Cable Diameter | 5.1 mm |
| Wire Cross Section | 5 × 0.34 mm² |
| Operating Voltage | <60 V AC/DC |
| Current Rating | 4 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Housing Material | TPU, orange |
| Sealing Material | FKM |
| Nut Material | Brass, anti-spatter coated |
| Drag Chain Suitability | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Bending Cycles | >2 million |
| Special Features | Silicone-free, halogen-free, weld-spark resistant |
