IFM EVW009 is a 10 m angled M12 connecting cable with weld-slag-resistant PUR construction, gold-plated contacts and high IP protection for demanding welding automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

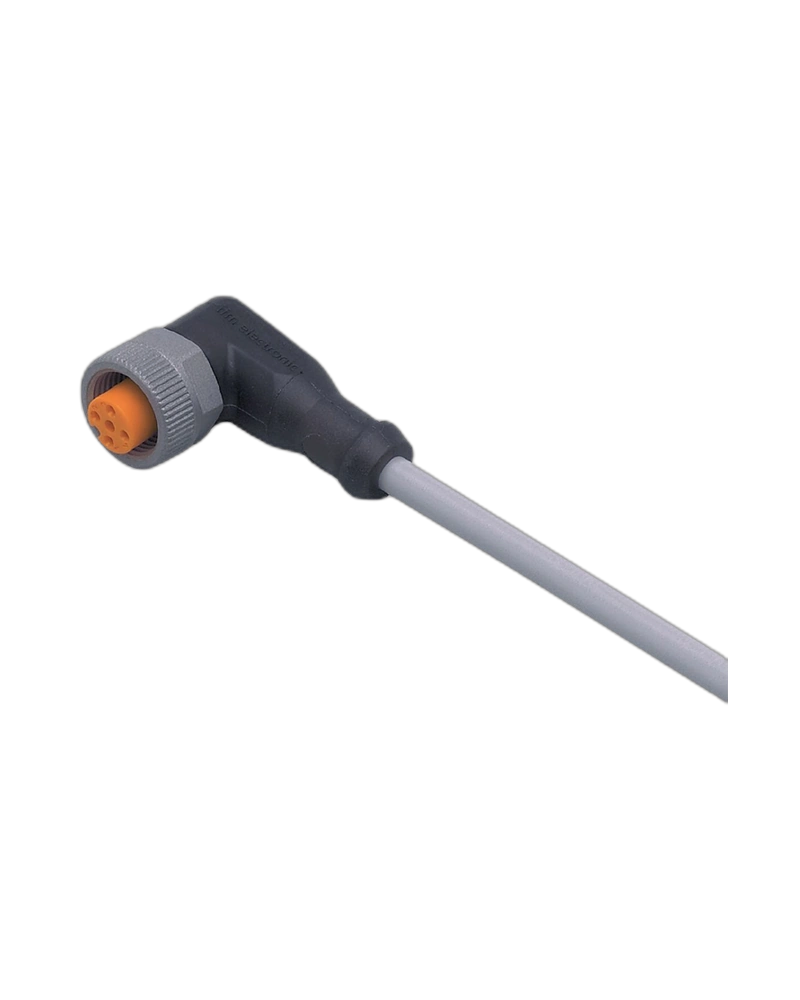

The IFM EVW009 ADOAH043SCS0010T04 is a long-length M12 connecting cable developed for welding applications and harsh industrial automation environments. The angled female connector allows efficient cable routing around machine structures.
Its 10 m PUR cable is resistant to welding sparks and suitable for drag-chain applications. The cable is halogen-free and silicone-free, supporting demanding industrial installations.
The connector uses gold-plated contacts for dependable electrical connectivity and an anti-spatter coated brass nut to improve resistance to welding residues. Its IP65, IP67, IP68 and IP69K protection helps protect the connection against dust, water and intensive industrial cleaning.
10 m Extended Reach: Ideal for large automation systems and long-distance connections.
Angled M12 Connector: Supports efficient cable routing.
Weld-Slag Resistant Construction: Designed for welding environments.
High Protection Rating: IP65 to IP69K protection supports harsh operating conditions.
Excellent Dynamic Performance: Suitable for drag-chain applications.
Visible LED Indication: Integrated LEDs provide clear status indication.
Robotic welding systems
Automotive manufacturing
Industrial automation
Welding cells
Machine tools
Sensor connections
Production-line equipment
| Specification | Details |
|---|---|
| Product Model | EVW009 |
| Part Number | ADOAH043SCS0010T04 |
| Product Type | Connecting cable with socket |
| Connector | M12 angled female |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable Length | 10 m |
| Cable Material | PUR |
| Cable Colour | Grey |
| Cable Diameter | 4.9 mm |
| Wire Cross Section | 4 × 0.34 mm² |
| Operating Voltage | 10–36 V DC |
| Electrical Design | PNP |
| Current Rating | 4 A |
| Protection Class | II |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25 to +90 °C |
| Housing Material | TPU |
| Sealing Material | Viton/FKM |
| Nut Material | Brass, anti-spatter coated |
| Drag Chain Suitability | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >2 million |
| Torsional Strain | ±180°/m |
| Status LEDs | 2 yellow + 1 green |
| Special Features | Silicone-free, halogen-free, weld-spark resistant |
